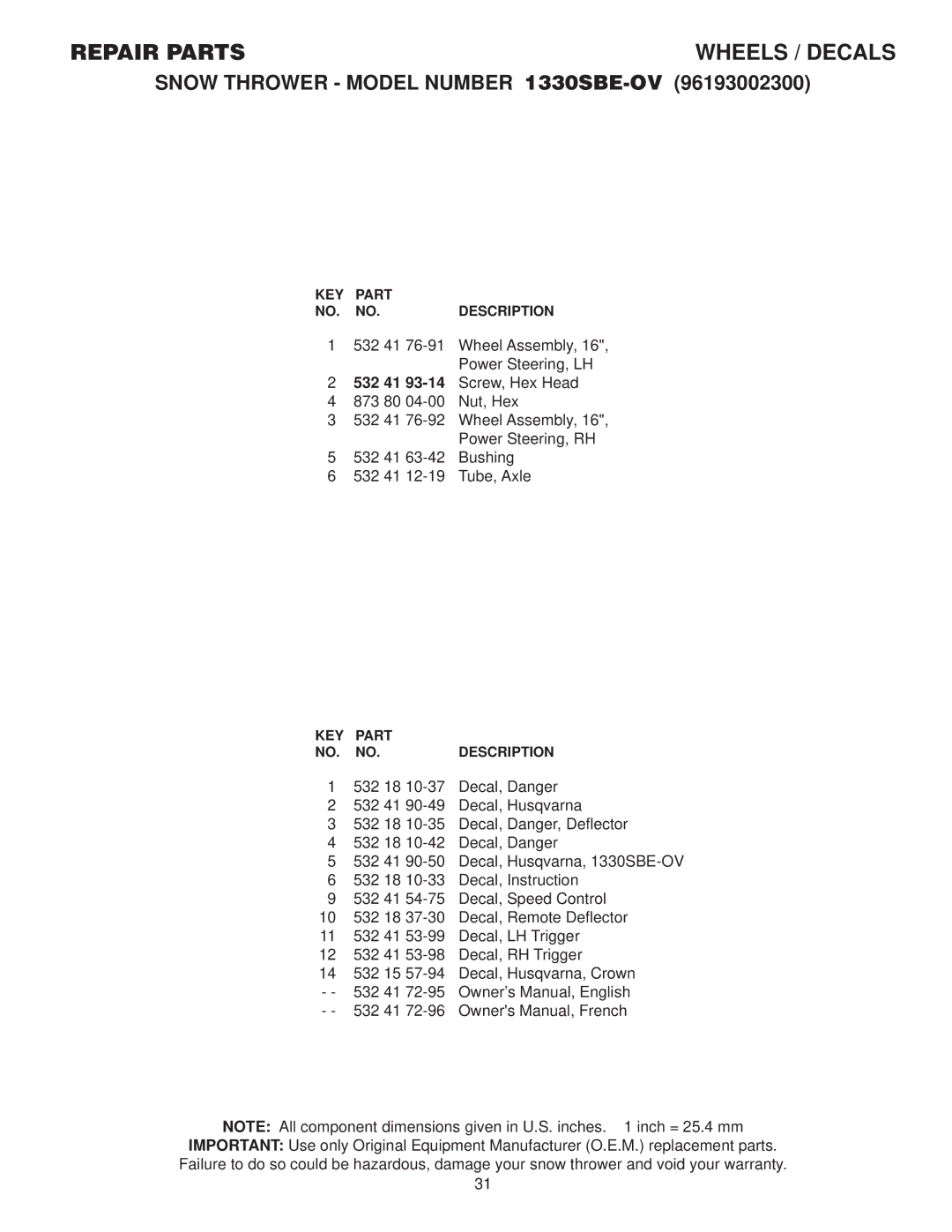

REPAIR PARTS CHASSIS / ENGINE / PULLEYS

SNOW THROWER - MODEL NUMBER 1330SBE-OV (96193002300)

KEY	PART
NO.	NO.	DESCRIPTION

3- - - Engine, Tecumseh, Model Number OH358SA (For engine service and replacement parts, call Tecumseh Products at 1-800-558-5402)

6532 15 54-15 Washer, Flat

7532 16 67-85 Nut, Jam, Lock 5/16-18

8 532 17 53-30 Pin, Idler Pivot

9532 41 19-31 Belt, Traction Variator

10810 04 05-00 Washer, Lock 5/16

11 817 49 05-08 Screw, Hex Head 5/16-18 x 1/2

12532 41 04-20 Idler Arm / Brake Pad Assembly

13532 08 51-79 Retainer, Hairpin

14532 17 88-28 Spring, Brake

15532 40 38-42 V-Belt, Impeller Drive

16	532 15 04-06	Screw, Hex Head	3/8-16 x 1-1/4
18	874 78 05-24	Screw, Hex Head	5/16-18 x 1-1/2

20532 18 05-23 Pulley, Idler (2-3/4)

21874 61 05-16 Screw, Hex Head 5/16-18 x 1

22532 17 90-62 Roller, Actuator

23532 41 12-12 Pulley, Engine, Variator

24532 41 11-92 Pulley, Engine, Impeller Drive

25532 19 21-47 Ring, Crescent

26532 85 02-63 Washer, Lock 3/8

27 532 19 17-60 Screw, Hex Head 3/8-24 x 1-3/8

28532 41 15-94 Guide, Belt

29532 19 22-13 Belt Cover Assembly (Includes Toolbox Cover)

30532 17 88-30 Cover, Toolbox

29	532 40 91-61	Belt Cover Assembly
31	817 49 04-08	Screw, Hex Head 1/4-20 x 1/2

32532 40 28-81 Bolt, Shoulder

33532 41 12-11 Bracket, Cable, Rear

34532 19 85-80 Clevis Pin

35532 40 54-84 Arm, Auger Control

36532 19 17-30 Nut, Hex

37532 41 54-35 Plate, Clutch

39 532 41 12-10 Plate, Speed, Pivot

43532 41 44-62 Bracket, Speed, Pivot

44817 00 06-16 Screw, Hex Head

45532 18 40-74 Bracket, Pivot, Idler

46532 41 08-77 Pan, Frame Bottom

47 532 18 44-71 Screw, Hex Head 5/16-18 x 3/4

49532 41 78-95 Frame Assembly

50532 41 76-90 Plate, Frame End

51532 19 19-97 Shaft, Auger Control

52532 05 70-79 Washer, Hardened

53532 18 92-82 Key, Safety

58532 19 85-63 Power Cord

59532 19 86-51Key, Square, Variator Pulley

NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm

IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts. Failure to do so could be hazardous, damage your snow thrower and void your warranty. 29
