OPERATOR’S MANUAL | 636077 |

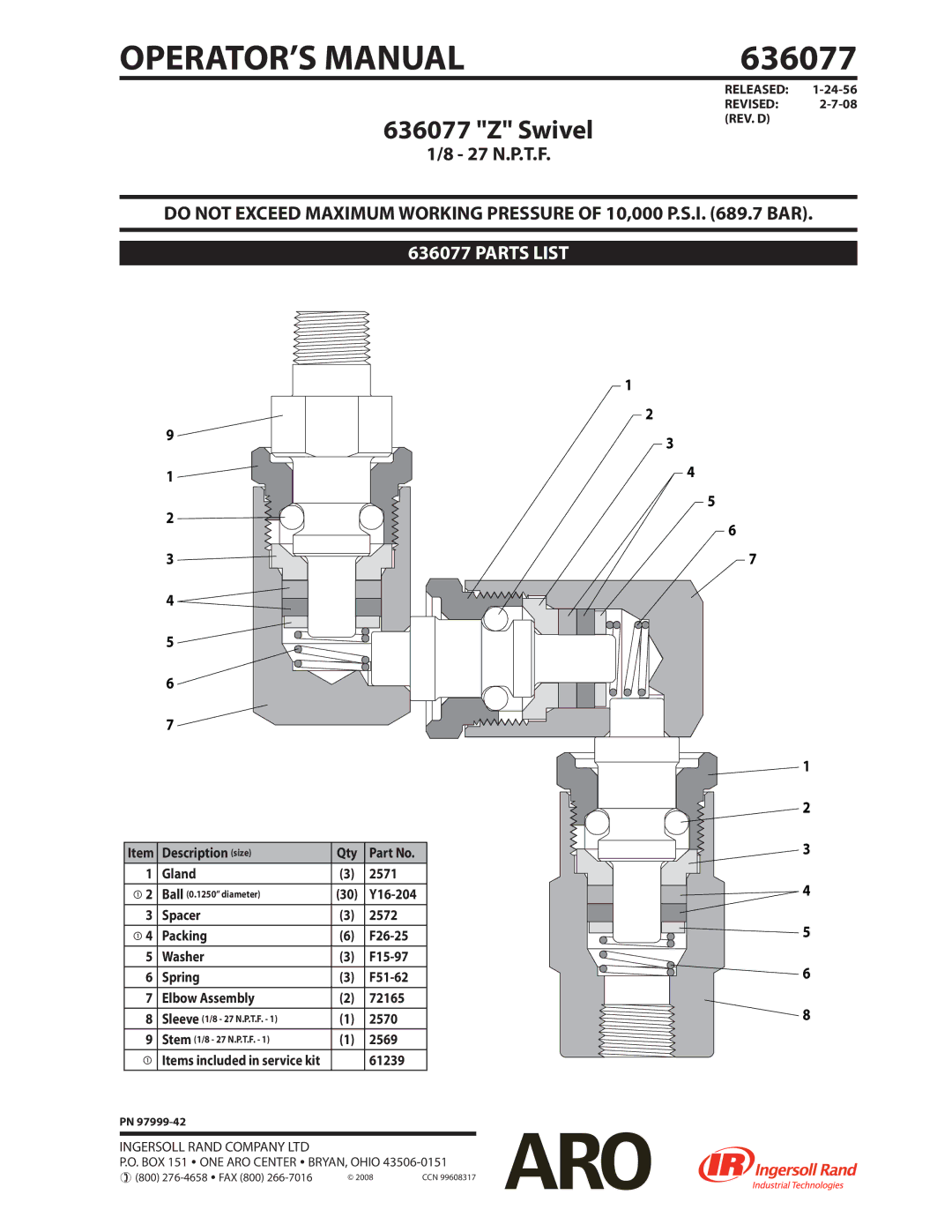

636077 "Z" Swivel
1/8 - 27 N.P.T.F.
RELEASED:
REVISED:
DO NOT EXCEED MAXIMUM WORKING PRESSURE OF 10,000 P.S.I. (689.7 BAR).
636077 PARTS LIST
9
1
2
3
4
5
6
7
Item | Description (size) | Qty | Part No. |
1 | Gland | (3) | 2571 |
c 2 | Ball (0.1250” diameter) | (30) | |
3 | Spacer | (3) | 2572 |
c 4 | Packing | (6) | |
5 | Washer | (3) | |
6 | Spring | (3) | |
7 | Elbow Assembly | (2) | 72165 |
8 | Sleeve (1/8 - 27 N.P.T.F. - 1) | (1) | 2570 |
9 | Stem (1/8 - 27 N.P.T.F. - 1) | (1) | 2569 |
c | Items included in service kit |
| 61239 |
PN
INGERSOLL RAND COMPANY LTD
P.O. BOX 151 y ONE ARO CENTER y BRYAN, OHIO
(800) | © 2008 | CCN 99608317 |
