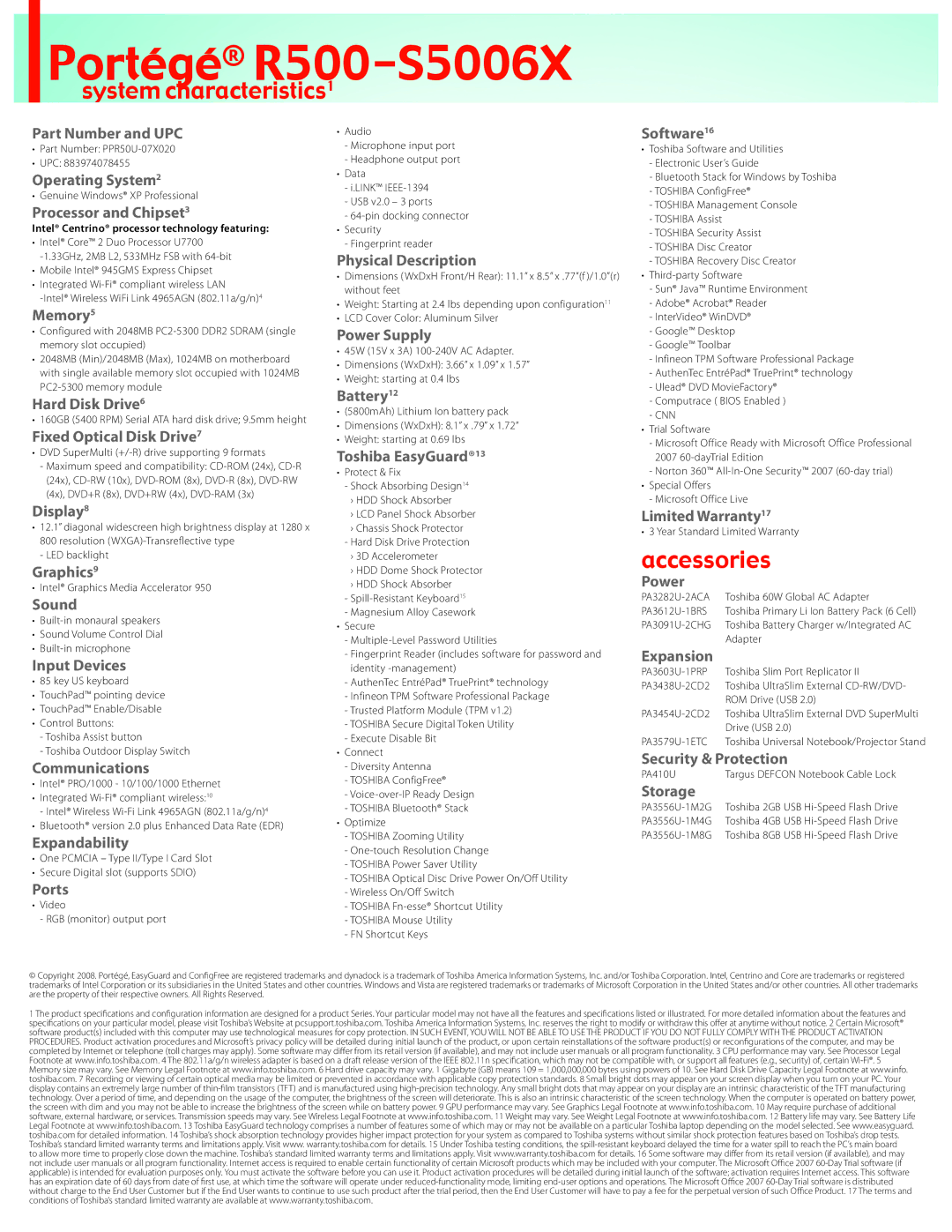

Portégé® R500-S5006X

system characteristics1

Part Number and UPC

•Part Number: PPR50U-07X020

•UPC: 883974078455

Operating System2

• Genuine Windows® XP Professional

Processor and Chipset3

Intel® Centrino® processor technology featuring:

•Intel® Core™ 2 Duo Processor U7700

-1.33GHz, 2MB L2, 533MHz FSB with 64-bit

•Mobile Intel® 945GMS Express Chipset

•Integrated Wi-Fi® compliant wireless LAN

-Intel® Wireless WiFi Link 4965AGN (802.11a/g/n)4

Memory5

•Configured with 2048MB PC2-5300 DDR2 SDRAM (single memory slot occupied)

•2048MB (Min)/2048MB (Max), 1024MB on motherboard with single available memory slot occupied with 1024MB

PC2-5300 memory module

Hard Disk Drive6

• 160GB (5400 RPM) Serial ATA hard disk drive; 9.5mm height

Fixed Optical Disk Drive7

•DVD SuperMulti (+/-R) drive supporting 9 formats

-Maximum speed and compatibility: CD-ROM (24x), CD-R (24x), CD-RW (10x), DVD-ROM (8x), DVD-R (8x), DVD-RW (4x), DVD+R (8x), DVD+RW (4x), DVD-RAM (3x)

Display8

•12.1” diagonal widescreen high brightness display at 1280 x 800 resolution (WXGA)-Transreflective type

- LED backlight

Graphics9

• Intel® Graphics Media Accelerator 950

Sound

•Built-in monaural speakers

•Sound Volume Control Dial

•Built-in microphone

Input Devices

•85 key US keyboard

•TouchPad™ pointing device

•TouchPad™ Enable/Disable

•Control Buttons:

-Toshiba Assist button

-Toshiba Outdoor Display Switch

Communications

•Intel® PRO/1000 - 10/100/1000 Ethernet

•Integrated Wi-Fi® compliant wireless:10

- Intel® Wireless Wi-Fi Link 4965AGN (802.11a/g/n)4

•Bluetooth® version 2.0 plus Enhanced Data Rate (EDR)

Expandability

•One PCMCIA – Type II/Type I Card Slot

•Secure Digital slot (supports SDIO)

Ports

•Video

- RGB (monitor) output port

•Audio

-Microphone input port

-Headphone output port

•Data

-i.LINK™ IEEE-1394

-USB v2.0 – 3 ports

-64-pin docking connector

•Security

-Fingerprint reader

Physical Description

•Dimensions (WxDxH Front/H Rear): 11.1” x 8.5” x .77”(f )/1.0”(r) without feet

•Weight: Starting at 2.4 lbs depending upon configuration11

•LCD Cover Color: Aluminum Silver

Power Supply

•45W (15V x 3A) 100-240V AC Adapter.

•Dimensions (WxDxH): 3.66” x 1.09” x 1.57”

•Weight: starting at 0.4 lbs

Battery12

•(5800mAh) Lithium Ion battery pack

•Dimensions (WxDxH): 8.1” x .79” x 1.72”

•Weight: starting at 0.69 lbs

Toshiba EasyGuard®13

•Protect & Fix

-Shock Absorbing Design14

›HDD Shock Absorber

›LCD Panel Shock Absorber

›Chassis Shock Protector

-Hard Disk Drive Protection

›3D Accelerometer

›HDD Dome Shock Protector

›HDD Shock Absorber

-Spill-Resistant Keyboard15

-Magnesium Alloy Casework

•Secure

-Multiple-Level Password Utilities

-Fingerprint Reader (includes software for password and identity -management)

-AuthenTec EntréPad® TruePrint® technology

-Infineon TPM Software Professional Package

-Trusted Platform Module (TPM v1.2)

-TOSHIBA Secure Digital Token Utility

-Execute Disable Bit

•Connect

-Diversity Antenna

-TOSHIBA ConfigFree®

-Voice-over-IP Ready Design

-TOSHIBA Bluetooth® Stack

•Optimize

-TOSHIBA Zooming Utility

-One-touch Resolution Change

-TOSHIBA Power Saver Utility

-TOSHIBA Optical Disc Drive Power On/Off Utility

-Wireless On/Off Switch

-TOSHIBA Fn-esse® Shortcut Utility

-TOSHIBA Mouse Utility

-FN Shortcut Keys

Software16

•Toshiba Software and Utilities

-Electronic User’s Guide

-Bluetooth Stack for Windows by Toshiba

-TOSHIBA ConfigFree®

-TOSHIBA Management Console

-TOSHIBA Assist

-TOSHIBA Security Assist

-TOSHIBA Disc Creator

-TOSHIBA Recovery Disc Creator

•Third-party Software

-Sun® Java™ Runtime Environment

-Adobe® Acrobat® Reader

-InterVideo® WinDVD®

-Google™ Desktop

-Google™ Toolbar

-Infineon TPM Software Professional Package

-AuthenTec EntréPad® TruePrint® technology

-Ulead® DVD MovieFactory®

-Computrace ( BIOS Enabled )

-CNN

•Trial Software

-Microsoft Office Ready with Microsoft Office Professional 2007 60-dayTrial Edition

-Norton 360™ All-In-One Security™ 2007 (60-day trial)

•Special Offers

-Microsoft Office Live

Limited Warranty17

• 3 Year Standard Limited Warranty

accessories

Power

PA3282U-2ACA	Toshiba 60W Global AC Adapter
PA3612U-1BRS	Toshiba Primary Li Ion Battery Pack (6 Cell)
PA3091U-2CHG	Toshiba Battery Charger w/Integrated AC
	Adapter
Expansion
PA3603U-1PRP	Toshiba Slim Port Replicator II
PA3438U-2CD2	Toshiba UltraSlim External CD-RW/DVD-
	ROM Drive (USB 2.0)
PA3454U-2CD2	Toshiba UltraSlim External DVD SuperMulti
	Drive (USB 2.0)
PA3579U-1ETC	Toshiba Universal Notebook/Projector Stand
Security & Protection
PA410U	Targus DEFCON Notebook Cable Lock
Storage
PA3556U-1M2G	Toshiba 2GB USB Hi-Speed Flash Drive
PA3556U-1M4G	Toshiba 4GB USB Hi-Speed Flash Drive
PA3556U-1M8G	Toshiba 8GB USB Hi-Speed Flash Drive
