TECHNICAL SPECIFICATIONS

Luxura® 5.5

Whirlpool Bath

LUX6634

WRL

2XX

Luxura 5.5 Whirlpool Bath Right Hand







(F947)

LUX6634

WLR

2XX Luxura 5.5 Whirlpool Bath Left Hand







(F946)

Luxura® 5.5

Bath

LUX6634

BUX

XXX

Luxura 5.5 Bath (F948)

KEY DIMENSIONS

DIMENSIONS

66” L x 34” W x 20” H

(1676 mm) L x (864 mm) W x (508 mm) H DRAIN/OVERFLOW

A: 15-¼” (387 mm) B: 8-⅜” (213 mm)

CUTOUT

64” x 32”

TOTAL WEIGHT

F946, F947: 823 lb (373 kg) / 53 lb/sq. ft. (258 kg/m2)

F948: 798 lb (362 kg) / 51 lb/sq. ft. (250 kg/m2)

OPERATING GALLONAGE

58 U.S. Gal. (220 Liters)

PRODUCT WEIGHT

F946, F947: 90 lb (41 kg)

F948: 65 lb (29 kg)

SKIRT MOUNTING

Optional, U-Frame: P/N F956

ELECTRICAL SPECIFICATIONS MODELS F946, F947 ONLY

Requires a dedicated GFCI protected separate circuit.

Motor/Pump: 120 VAC, 15 AMP, 60 Hz.

RapidHeat™: 120 VAC, 15 AMP, 60 Hz.

INSTALLATION NOTES

Refer to installation instructions included with fixture before beginning installation. Please confirm product availability and specifications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES, UPGRADES & ACCESSORIES

• Right and Left Hand Drain Location

• Accessories / Hardware:

Trip-Lever Drain Kit #X559

Rotary Drain Kit, 26” Cable #8730

TheraPro Jet Trim Kit: #GU44

AccuPro Jet Trim Kit: #GU45

• Trim Kit Finishes Available:

(827) – Chrome

(826) – Brushed Nickel

(845) – Oil Rubbed Bronze

HEATER (OPTIONAL) MODELS F946, F947 ONLY

Requires a dedicated GFCI protected separate circuit.

RapidHeat™: P/N S750000

Product Shown: Luxura 5 Whirlpool Bath Left Hand

Model: F946

*Measurements inside unit represent cutout in floor to allow for drain/overflow.



*66"



8-3/8"

17"

12" x 5"

34"

Motor

2-1/2"



5-3/8"

2-1/2"

12" H x 18"L Service Access

Opt. Service Access

L

SIDE VIEW

W

2" H

END VIEW

A

B

DRAIN/OVERFLOW

© 2010 Jacuzzi Luxury Bath • For additional information call Customer Service 800-288-4002www.jacuzzi.com/technicalspecs

Refer to installation instructions included with fixture before beginning installation. Please confirm product availability and specifications before commencing with any installation work.

PRODUCT SPECIFICATIONS AND AVAILABILITY ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Page 1
Image 1

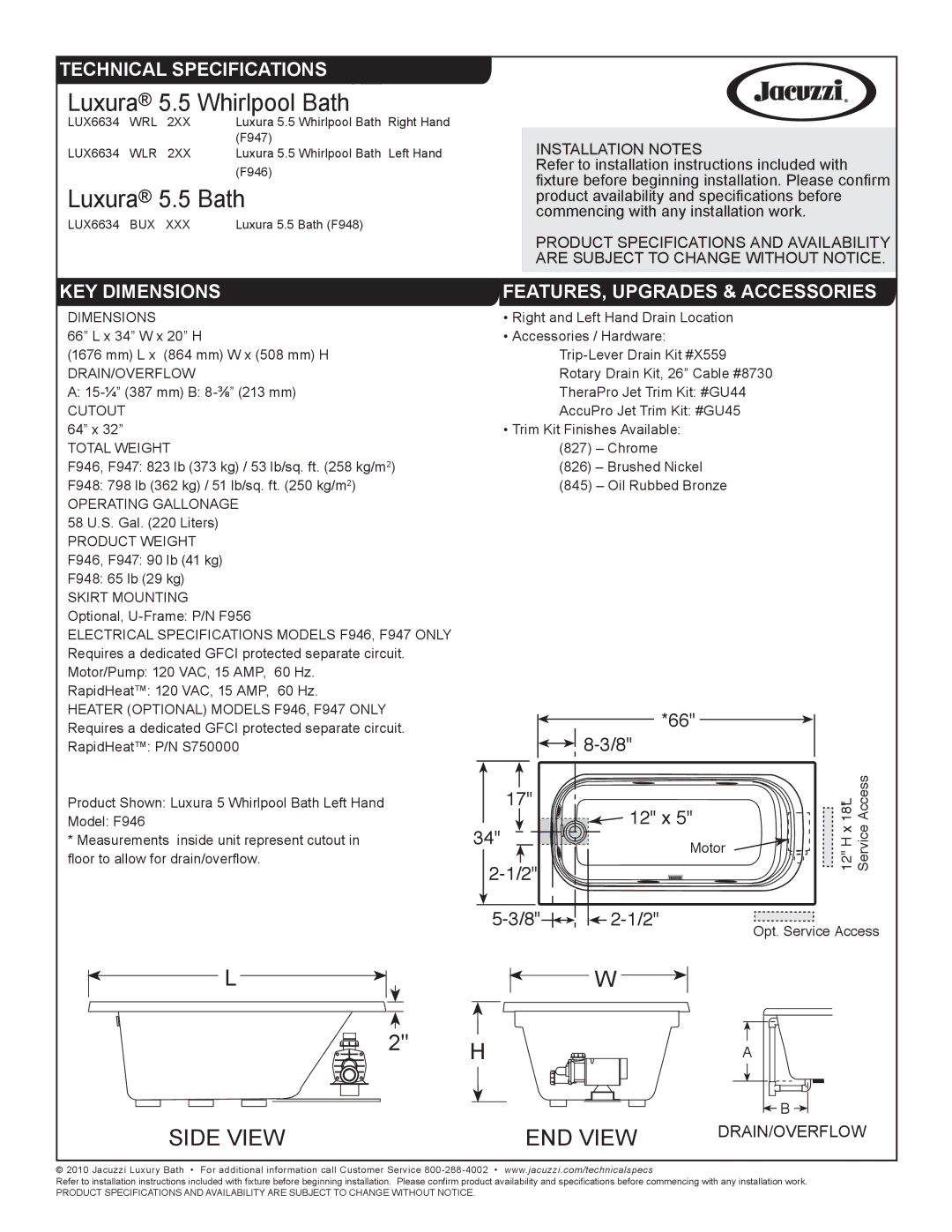

Jacuzzi F946, F947, F948 technical specifications Luxura Whirlpool Bath, Luxura Bath, Side View END View, Drain/Overflow
