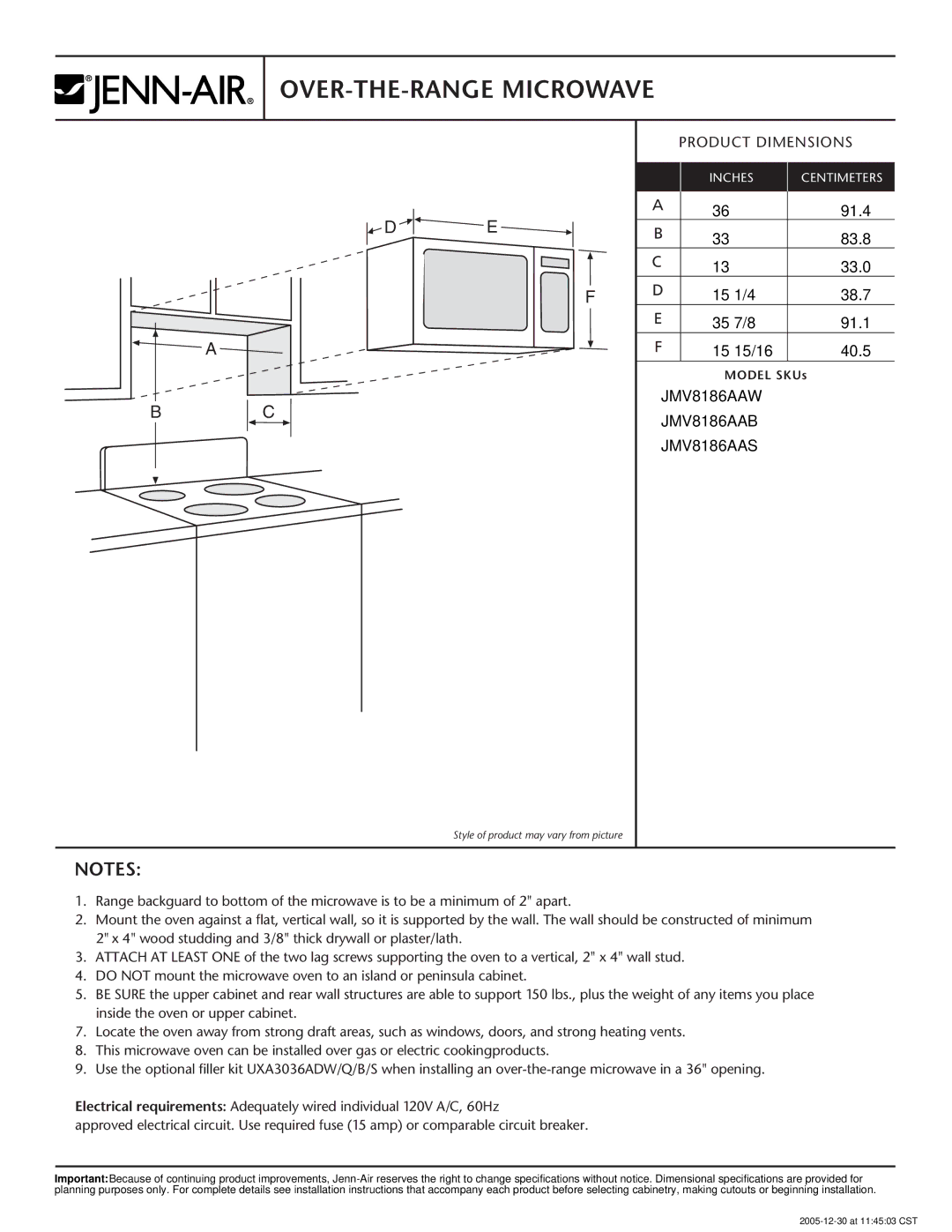

OVER-THE-RANGE MICROWAVE

D E

F

A

B C

Style of product may vary from picture

PRODUCT DIMENSIONS



INCHES

CENTIMETERS









A

36



91.4





B

33



83.8





C

13



33.0





D

15

1/4

38.7



E

35

7/8

91.1



F

15 15/16

40.5

MODEL SKUs

JMV8186AAW

JMV8186AAB

JMV8186AAS

NOTES:

1.Range backguard to bottom of the microwave is to be a minimum of 2" apart.

2.Mount the oven against a flat, vertical wall, so it is supported by the wall. The wall should be constructed of minimum 2" x 4" wood studding and 3/8" thick drywall or plaster/lath.

3.ATTACH AT LEAST ONE of the two lag screws supporting the oven to a vertical, 2" x 4" wall stud.

4.DO NOT mount the microwave oven to an island or peninsula cabinet.

5.BE SURE the upper cabinet and rear wall structures are able to support 150 lbs., plus the weight of any items you place inside the oven or upper cabinet.

7.Locate the oven away from strong draft areas, such as windows, doors, and strong heating vents.

8.This microwave oven can be installed over gas or electric cookingproducts.

9.Use the optional filler kit UXA3036ADW/Q/B/S when installing an over-the-range microwave in a 36" opening.

Electrical requirements: Adequately wired individual 120V A/C, 60Hz

approved electrical circuit. Use required fuse (15 amp) or comparable circuit breaker.

Important:Because of continuing product improvements, Jenn-Air reserves the right to change specifications without notice. Dimensional specifications are provided for planning purposes only. For complete details see installation instructions that accompany each product before selecting cabinetry, making cutouts or beginning installation.

2005-12-30 at 11:45:03 CST

Page 1
Image 1
Jenn-Air specifications OVER-THE-RANGE Microwave, JMV8186AAW JMV8186AAB JMV8186AAS

JMV8186AAW, JMV8186AAS specifications

The Jenn-Air JMV8186AAS and JMV8186AAW represent the pinnacle of built-in microwave technology, designed to elevate culinary experiences in modern kitchens. These models combine elegance and functionality with an array of features, catering to both convenience and cooking efficiency.

One of the hallmark features of the Jenn-Air JMV8186AAS and JMV8186AAW is the powerful 1.9 cubic foot capacity, which allows for spacious cooking and heating options. This generous size is ideal for accommodating large dishes, making it suitable for both everyday meals and special occasions. The microwave boasts 1000-watt cooking power, ensuring rapid heating and consistent cooking results.

Both models come equipped with a sleek stainless steel or white finish, enhancing kitchen aesthetics while ensuring durability. The easy-to-use touch control panel offers an intuitive interface, complete with a digital display that simplifies the cooking process. With a variety of preset cooking options, users can effortlessly reheat, defrost, and cook a broad range of foods with just the touch of a button.

The Jenn-Air JMV8186AAS and JMV8186AAW feature the convenience of sensor cooking technology. This innovative technology automatically detects moisture levels in food, adjusting cooking time and power levels for optimal results. The result is perfectly cooked meals every time, eliminating the guesswork involved in conventional microwave cooking.

Furthermore, the microwave includes a powerful ventilation system with a 300 CFM blower, efficiently removing smoke, steam, and odors from the kitchen. It features multi-speed fan options, allowing users to customize ventilation based on their cooking needs.

Another notable characteristic is the under-cabinet installation design, which saves valuable counter space while adding sophistication to the kitchen layout. Both models come with a bright halogen light that illuminates the cooking surface underneath, enhancing visibility during meal preparation.

Additionally, the Jenn-Air brand is synonymous with premium quality, making these microwaves a reliable choice for home chefs. With their blend of advanced technology, user-friendly features, and aesthetic appeal, the JMV8186AAS and JMV8186AAW stand out as top contenders in the realm of built-in microwave ovens, perfectly aligning with modern kitchen designs and culinary demands.
