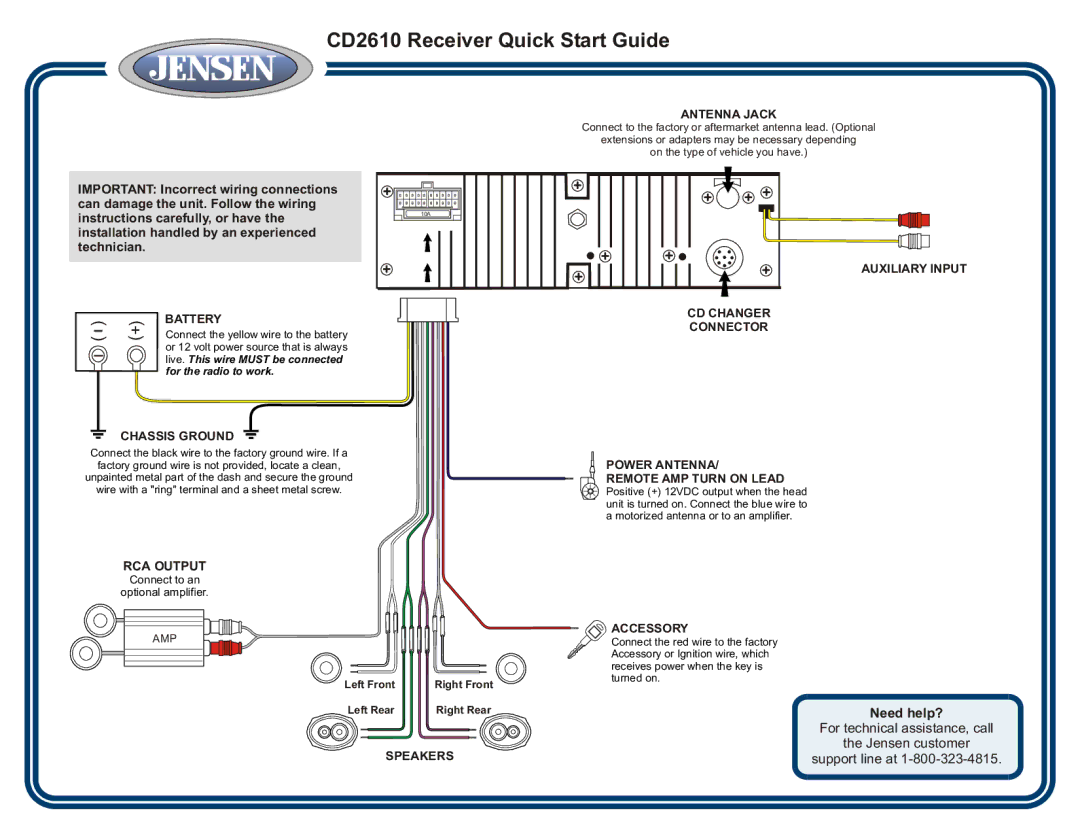

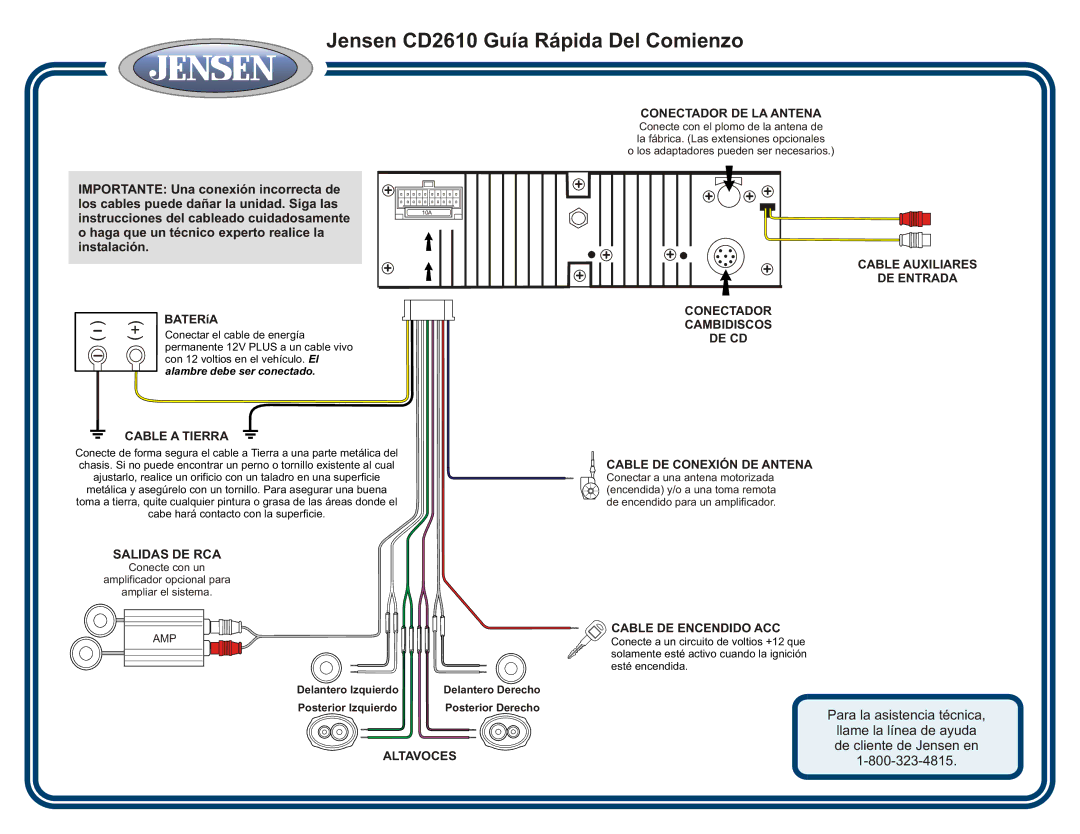

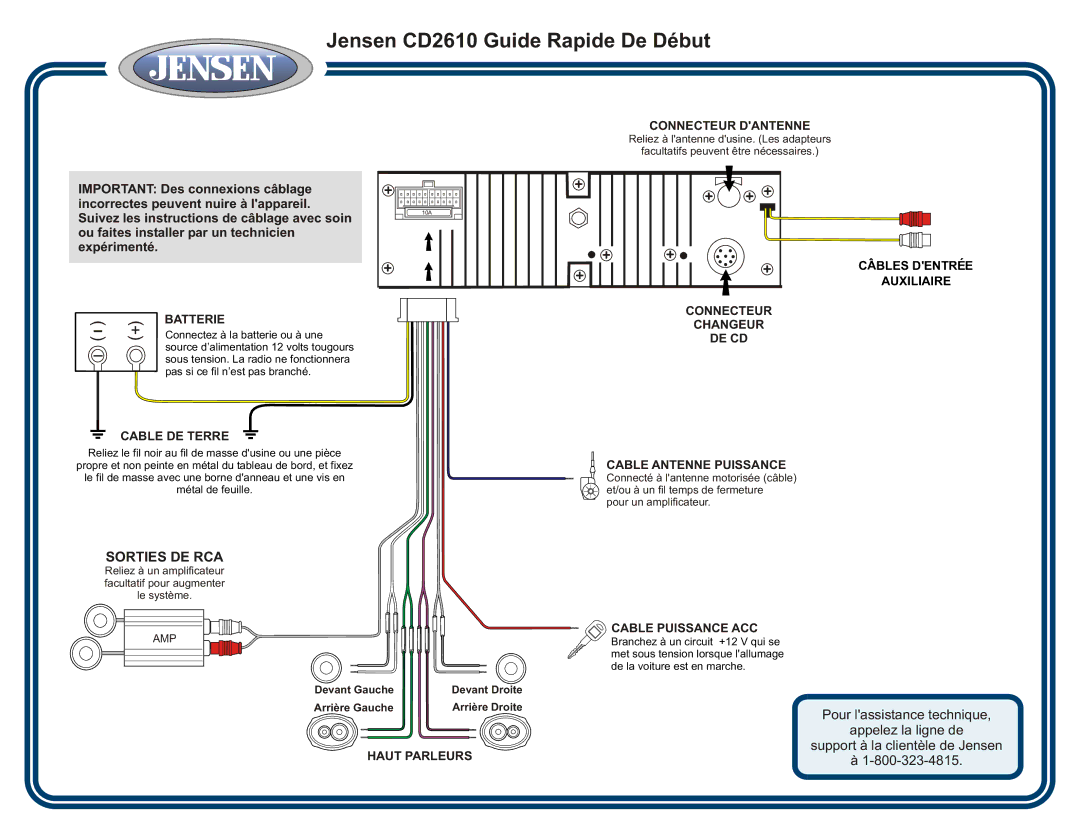

CD2610 Receiver Quick Start Guide
IMPORTANT: Incorrect wiring connections can damage the unit. Follow the wiring instructions carefully, or have the installation handled by an experienced technician.
ANTENNA JACK
Connect to the factory or aftermarket antenna lead. (Optional
extensions or adapters may be necessary depending
on the type of vehicle you have.)
10A
AUXILIARY INPUT
) | ) | BATTERY |
+ |
| |
- | ( | Connect the yellow wire to the battery |
( | ||
|
| or 12 volt power source that is always |
live. This wire MUST be connected for the radio to work.
CHASSIS GROUND
Connect the black wire to the factory ground wire. If a factory ground wire is not provided, locate a clean, unpainted metal part of the dash and secure the ground wire with a "ring" terminal and a sheet metal screw.
RCA OUTPUT
Connect to an
optional amplifier.
AMP
Left Front | Right Front |
Left Rear | Right Rear |
SPEAKERS
CD CHANGER
CONNECTOR
POWER ANTENNA/
REMOTE AMP TURN ON LEAD
Positive (+) 12VDC output when the head unit is turned on. Connect the blue wire to a motorized antenna or to an amplifier.
ACCESSORY
Connect the red wire to the factory Accessory or Ignition wire, which receives power when the key is turned on.
Need help?
For technical assistance, call
the Jensen customer
support line at
