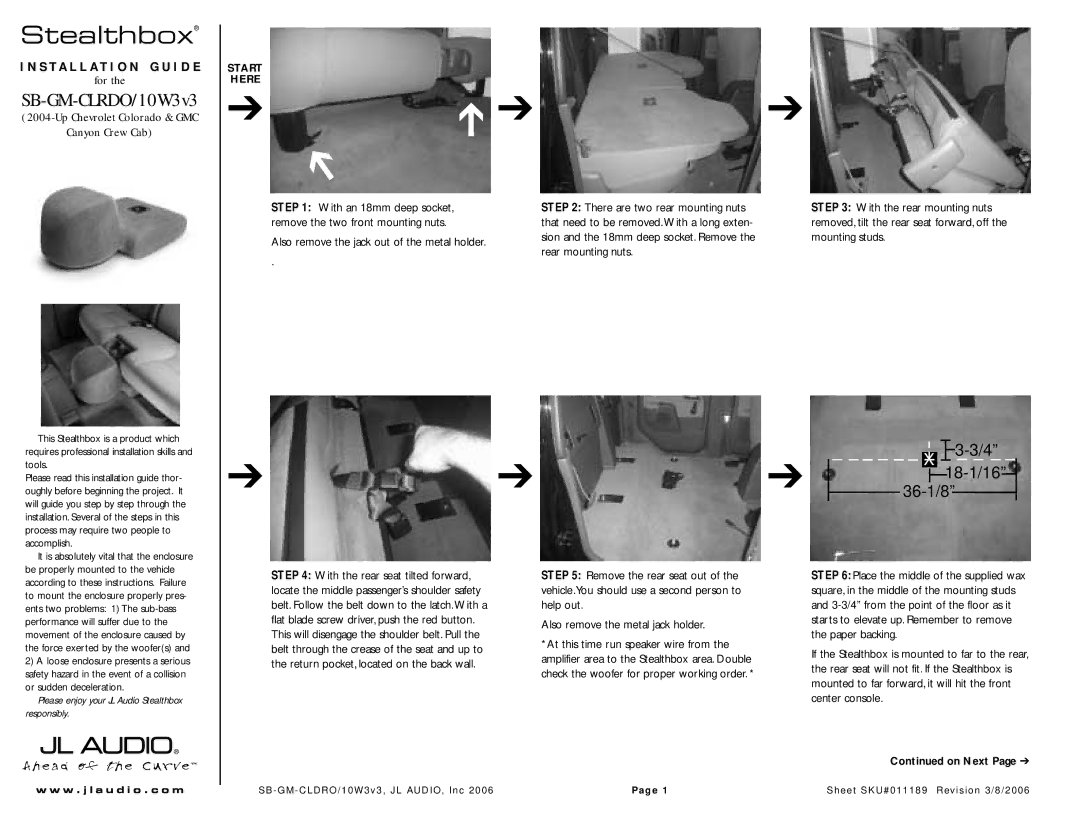

Stealthbox®

I N S T A L L A T I O N G U I D E

for the

SB-GM-CLRDO/10W3v3

(2004-Up Chevrolet Colorado & GMC

Canyon Crew Cab)

START

HERE

➔ ➔

STEP 1: With an 18mm deep socket, remove the two front mounting nuts.

Also remove the jack out of the metal holder.

.

➔ ➔

STEP 2: There are two rear mounting nuts that need to be removed. With a long exten- sion and the 18mm deep socket. Remove the rear mounting nuts.

STEP 3: With the rear mounting nuts removed, tilt the rear seat forward, off the mounting studs.

This Stealthbox is a product which requires professional installation skills and tools.

Please read this installation guide thor- oughly before beginning the project. It will guide you step by step through the installation. Several of the steps in this process may require two people to accomplish.

							3-3/4”
➔	➔	➔		X
						18-1/16”
			36-		1/8”

It is absolutely vital that the enclosure be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly pres- ents two problems: 1) The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s) and

2)A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

Please enjoy your JL Audio Stealthbox responsibly.

STEP 4: With the rear seat tilted forward, locate the middle passenger’s shoulder safety belt. Follow the belt down to the latch. With a flat blade screw driver, push the red button. This will disengage the shoulder belt. Pull the belt through the crease of the seat and up to the return pocket, located on the back wall.

STEP 5: Remove the rear seat out of the vehicle.You should use a second person to help out.

Also remove the metal jack holder.

*At this time run speaker wire from the amplifier area to the Stealthbox area. Double check the woofer for proper working order. *

STEP 6: Place the middle of the supplied wax square, in the middle of the mounting studs and 3-3/4” from the point of the floor as it starts to elevate up. Remember to remove the paper backing.

If the Stealthbox is mounted to far to the rear, the rear seat will not fit. If the Stealthbox is mounted to far forward, it will hit the front center console.

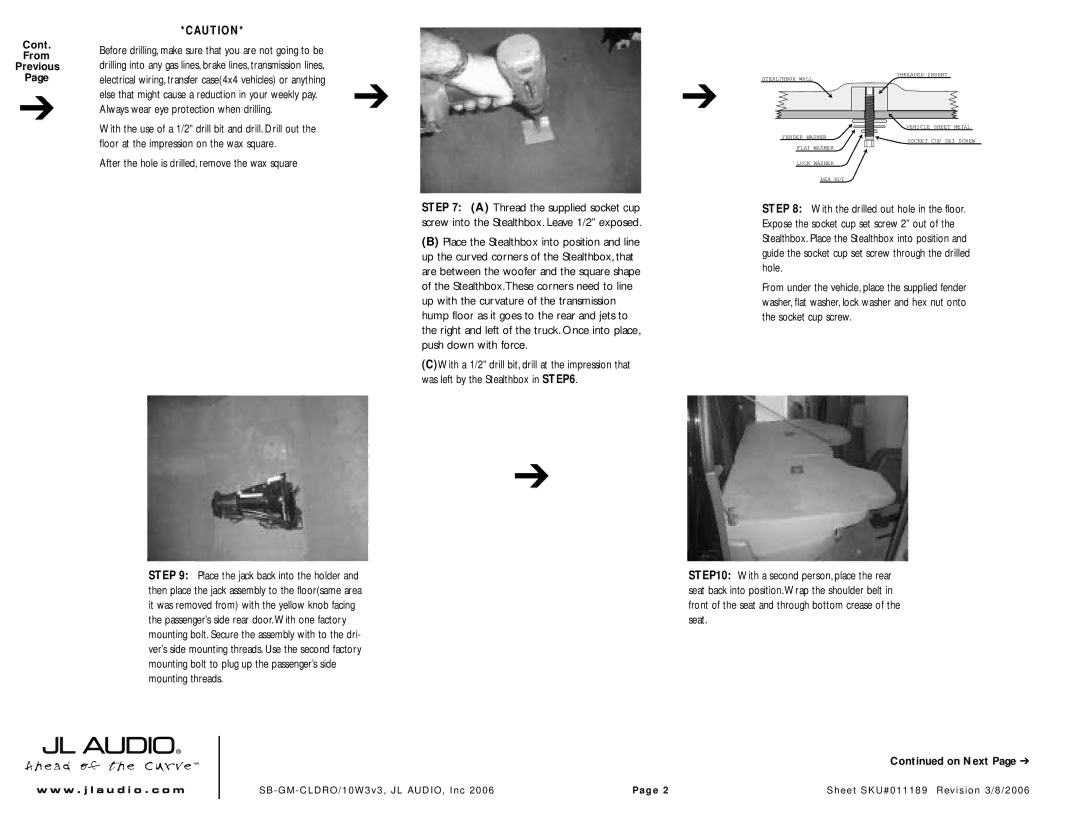

Continued on Next Page ➔

w w w . j l a u d i o . c o m SB - GM - CLDRO/10W3v3, JL AUDIO, Inc 2006 Pag e 1 Sheet SKU#011189 Revision 3/8/2006
