I N S T A L L A T I O N G U I D E

for the

SB-GM-TAHOCNSL/10W1v2

2007 - Up Chevrolet / GMC Full-Size SUV’s & Truck

Avalanche, Suburban, Tahoe, Yukon & Yukon XL

with bucket seats and factory console

If you choose to perform the installation yourself, it is absolutely vital that the Stealthbox® be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly presents two problems:

1)The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s).

2)A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

INSTALLATION D I F F I C U LT Y :

3OUT

5OF

Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper

installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.

We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage extends to 1 year if your system is installed or approved by your authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely

before beginning the process.

S T E P 1

Using masking tape or similar, mark where the bottom edge of the front center console meets the carpet on the driver’s side.

S T E P 2

Using masking tape or similar, mark where the bottom edge of the front center console meets the carpet on the passenger’s side.

S T E P 3

Open the storage lid of the center console. Remove the four exposed screws.

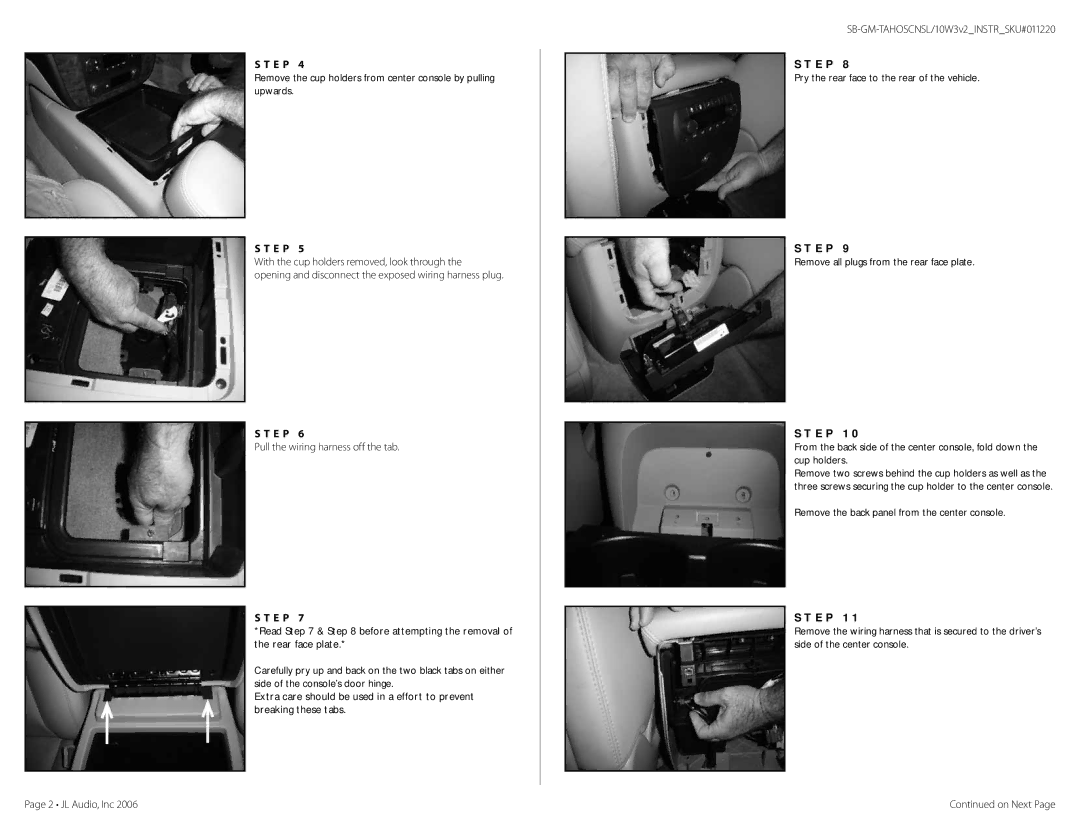

Continued on Next Page
