Stealthbox®

I N S T A L L A T I O N G U I D E

for the

SB-N-MURAN/10W1v2

(2003-Up Nissan Murano)

This Stealthbox is a product which requires professional installation skills and tools.

Please read this installation guide thor- oughly before beginning the project. It will guide you step by step through the installation. Several of the steps in this process may require two people to accomplish.

START

HERE

➔ ➔ ➔

STEP 1: Remove all contents, rubber flooring,

STEP 2: Open the cargo flooring and hook it

STEP 3: a)With a Phillips® screw driver,

cargo shade and lower the rear seats.

to the upper lip of the tailgate opening.

remove the driver’s side cargo pocket.



Remove the organizer tray, wooden board,

b)Unsnap the wiring harness that is running



factory woofer enclosure, spare tire and the



from front to back, on the floor.



driver’s side cargo pocket cover.





➔

➔

➔

➔

➔

➔



➔



It is absolutely vital that the enclosure be properly mounted to the vehicle according to these instructions. Failure to mount the enclosure properly pres- ents two problems: 1) The sub-bass performance will suffer due to the movement of the enclosure caused by the force exerted by the woofer(s) and

2)A loose enclosure presents a serious safety hazard in the event of a collision or sudden deceleration.

Please enjoy your JL Audio Stealthbox responsibly.

STEP 4: This picture is looking from the back- seats to the tailgate opening, showing the tail- gate sill plate.

To remove the sill plate; Pop out the middle of these three tabs and then pull out the outer piece from the sill plate.

STEP 5: With a small flat blade; pop out the oval plastic cover of the tailgate sill plate, that is located under the tailgate hook latch.

The sill plate now can be lifted up and removed out of the vehicle.

STEP 6: Look to the front left of the cargo area for the two factory bolts that are secur- ing a black plate to the floor.

Remove the left side bolt only.

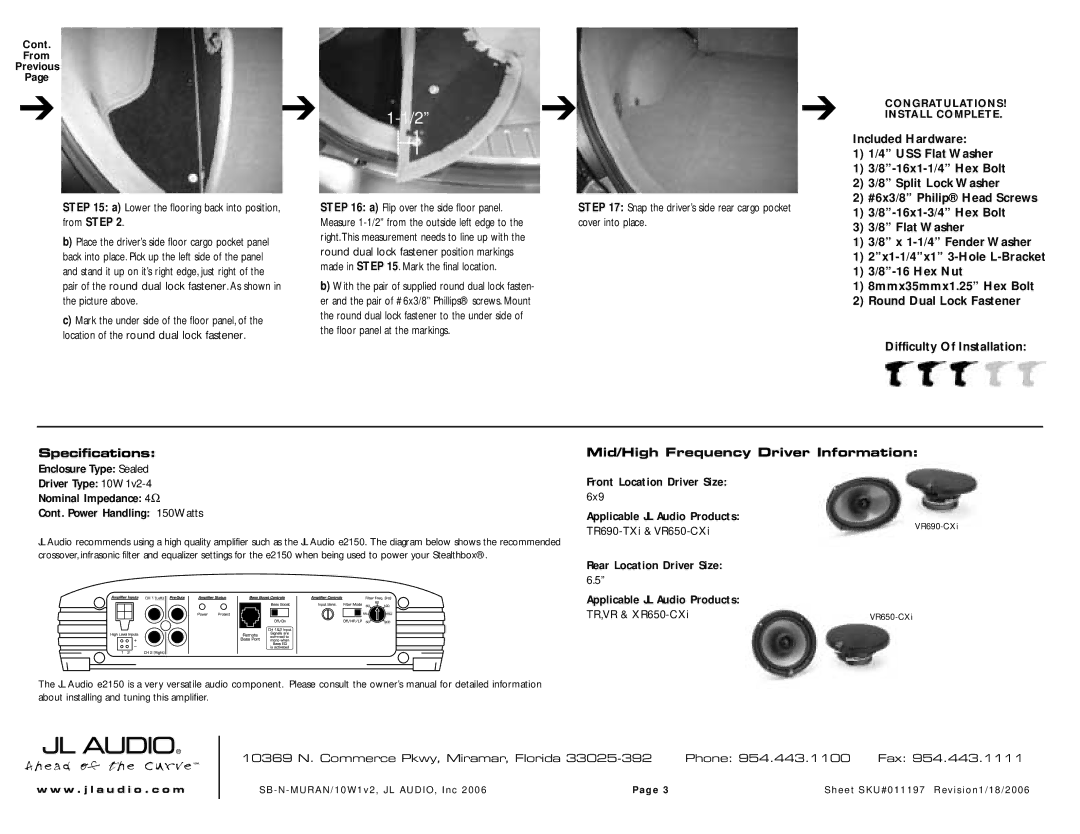

Continued on Next Page ➔

w w w . j l a u d i o . c o m

SB - N - MURAN/10W1v2, JL AUDIO, Inc 2006

Pag e 1

Sheet SKU#011197 Revision1/18/2006
