200FD SERIES FOLDING DOOR HARDWARE SET

For 1-1/8" (29mm) to

1-3/4" (45mm) Panels

weighing up to 125 lbs. (57 kgs) each.

4/0 (1219mm) X 9/0 (2741mm)

Maximum Panel Size.

Para paneles de 29mm a 45mm y de hasta 57kg cado uno.

Para paneles de hasta

1219mm * 2741mm Pour panneaux de 29mm a 45mm

pesant jusqu' à 57kg chacun.

Pour panneaux jusq' à

1219mm * 2741mm

PREPARE OPENING CAREFULLY: MAKE SURE CORNERS ARE SQUARE,

HEADER IS LEVEL AND JAMBS ARE STRAIGHT.

PREPARE LA ABERTURA CON CUIDADO: ASEGÚRESE QUE LAS ESQUINAS, ESTÉN EN ESCUADRA,

QUE LA CABECERA ESTE NIVELADA, Y QUE LAS JAMBAS EST ÉN RECTAS.

PREPAREZ L'OUVERTURE AVEC PRECAUTION : ASSUREZ VOUS QUE LES COINS SONT A ANGLE DROIT,

QUE LE LINTEAU EST A NIVEAU ET QUE LES MONTANTS SONT DROITS.

Minimum Hinge Size: 3" X 3" Mortised Hinge 50 lbs. each.

Dimension minimale de la chamière: 75mm X 75mm chamière encastrée de 23 kg. chaque.

Tamaño mínimo de la bisagra: 75mm X 75mm bisagra de muesca 23 kg. cada.

















2 DOOR, PUERTA, PORTE





4 DOOR, PUERTA, PORTE



























































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































































IN200FLD L.E. JOHNSON PRODUCTS, INC. - 2100 STERLING AVE. - ELKHART, IN USA 46516 - (574) 293-5664 Rev. 10/08

Page 1

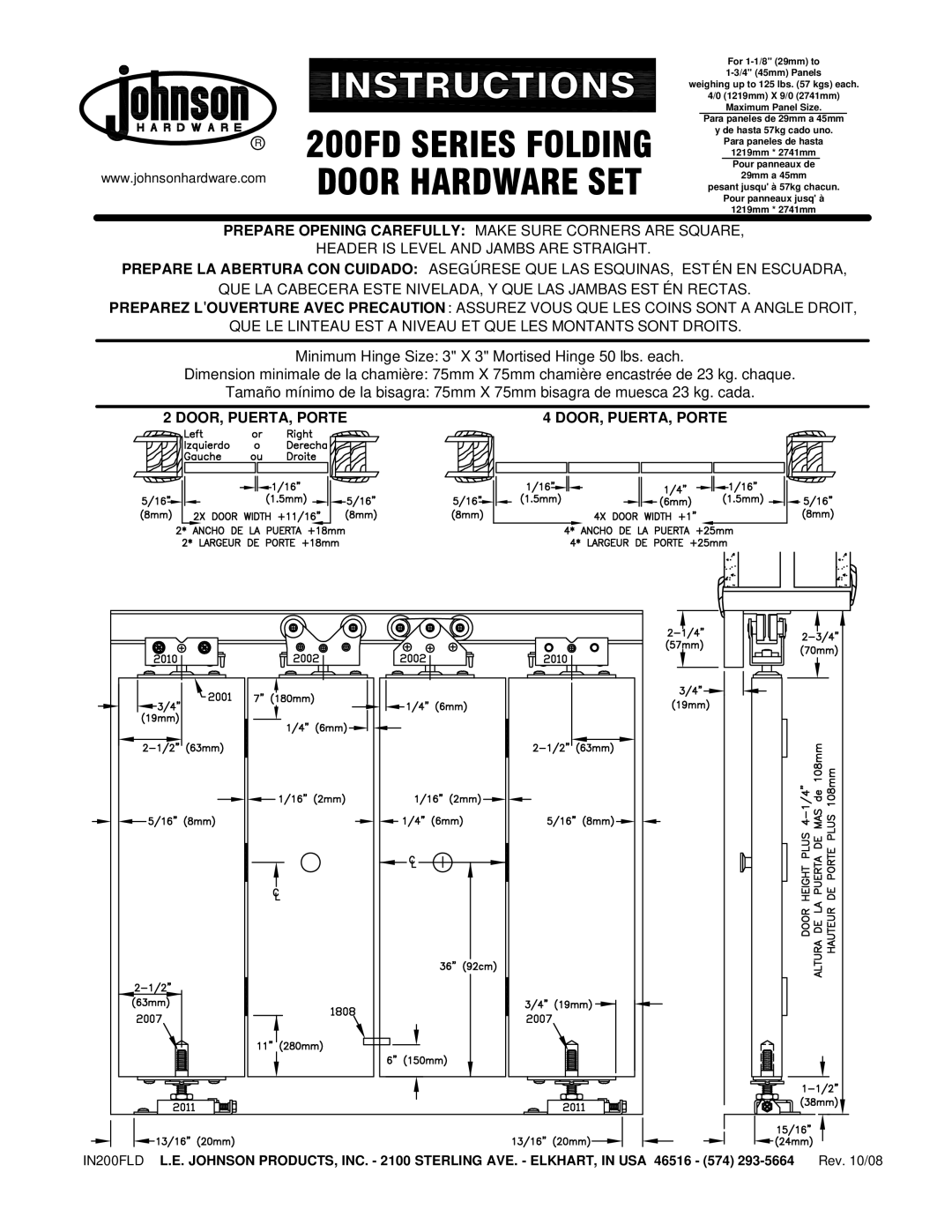

Image 1
Johnson Hardware IN200FLD manual 200FD Series Folding Door Hardware SET

200FD Series, IN200FLD specifications
