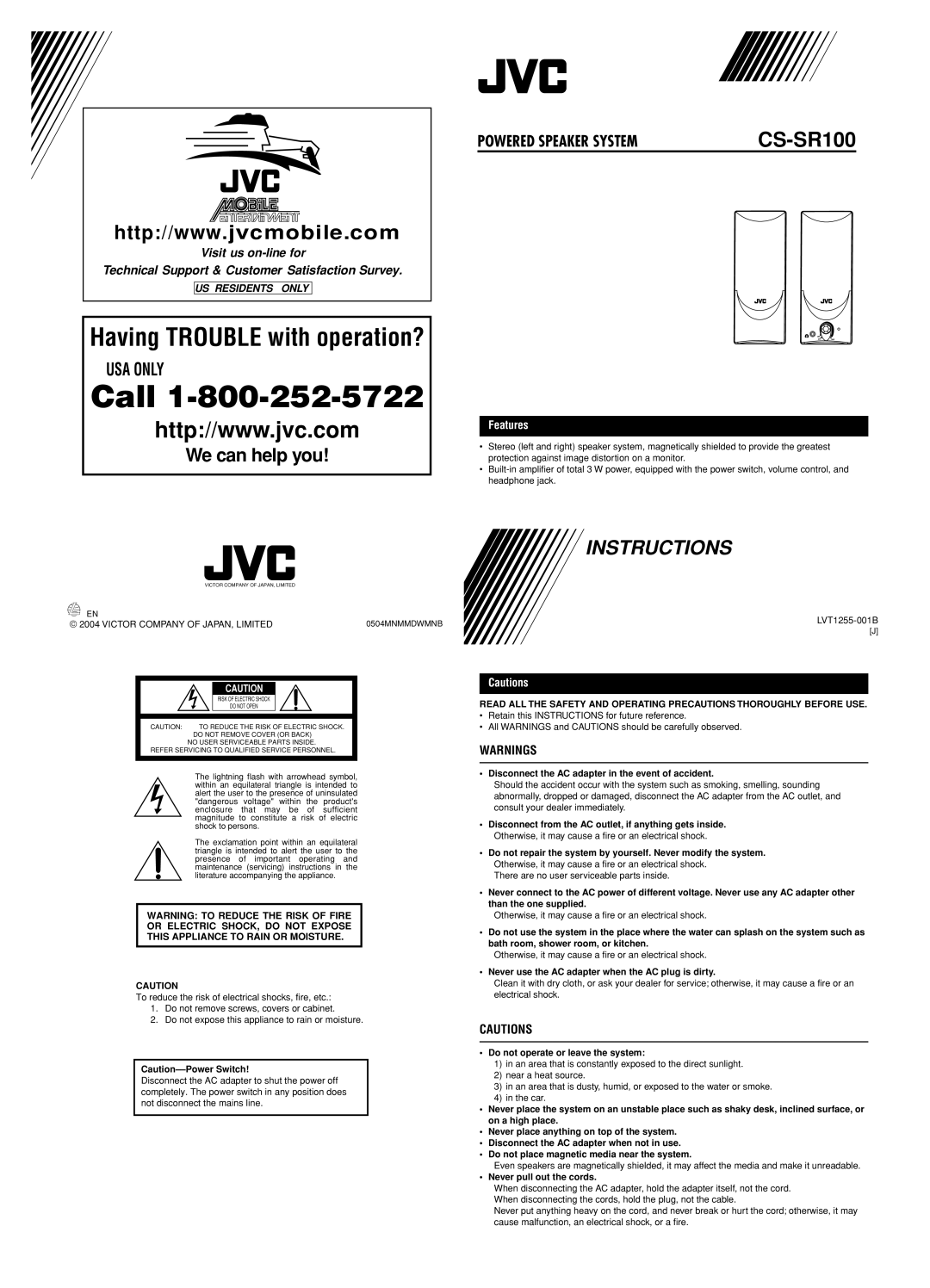

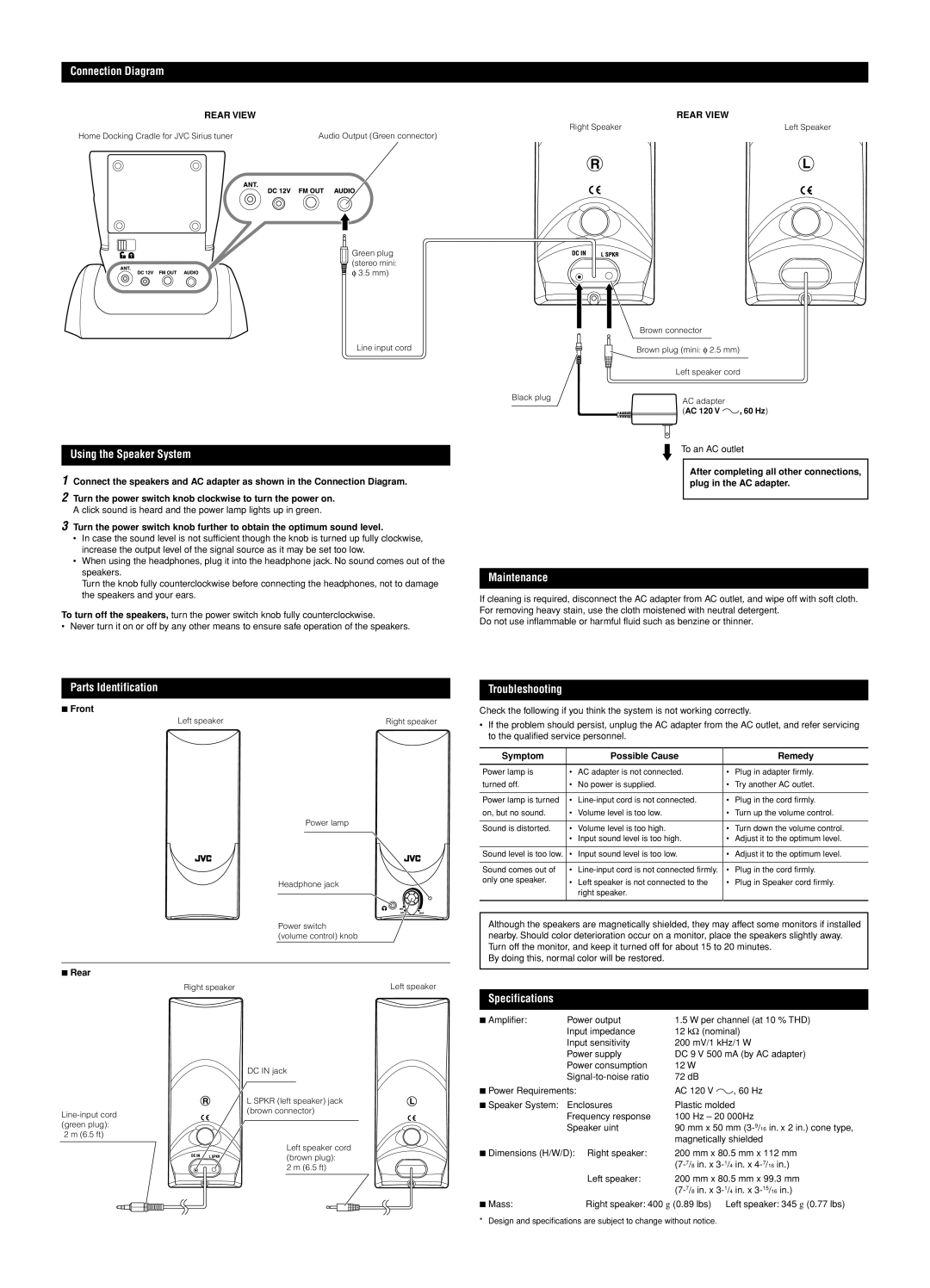

Connection Diagram

REAR VIEW

Home Docking Cradle for JVC Sirius tuner

Audio Output (Green connector)

Green plug (stereo mini: φ 3.5 mm)

Line input cord

Using the Speaker System

1Connect the speakers and AC adapter as shown in the Connection Diagram.

2Turn the power switch knob clockwise to turn the power on. A click sound is heard and the power lamp lights up in green.

3Turn the power switch knob further to obtain the optimum sound level.

In case the sound level is not sufficient though the knob is turned up fully clockwise, increase the output level of the signal source as it may be set too low.

When using the headphones, plug it into the headphone jack. No sound comes out of the speakers.

Turn the knob fully counterclockwise before connecting the headphones, not to damage the speakers and your ears.

To turn off the speakers, turn the power switch knob fully counterclockwise.

Never turn it on or off by any other means to ensure safe operation of the speakers.

Parts Identification

7Front

Left speaker

Right speaker

Power lamp

Headphone jack

Power switch (volume control) knob



REAR VIEW

Right Speaker

Left Speaker



Brown connector





Brown plug (mini: φ 2.5 mm)



Left speaker cord

Black plug

AC adapter









(AC 120 V

, 60 Hz)

To an AC outlet

After completing all other connections, plug in the AC adapter.

Maintenance

If cleaning is required, disconnect the AC adapter from AC outlet, and wipe off with soft cloth. For removing heavy stain, use the cloth moistened with neutral detergent.

Do not use inflammable or harmful fluid such as benzine or thinner.

Troubleshooting

Check the following if you think the system is not working correctly.

If the problem should persist, unplug the AC adapter from the AC outlet, and refer servicing to the qualified service personnel.

Symptom

Possible Cause

Remedy







Power lamp is

• AC adapter is not connected.

• Plug in adapter firmly.

turned off.

• No power is supplied.

• Try another AC outlet.







Power lamp is turned

Line-input cord is not connected.

• Plug in the cord firmly.

on, but no sound.

• Volume level is too low.

• Turn up the volume control.







Sound is distorted.

• Volume level is too high.

• Turn down the volume control.



• Input sound level is too high.

• Adjust it to the optimum level.







Sound level is too low.

• Input sound level is too low.

• Adjust it to the optimum level.







Sound comes out of

Line-input cord is not connected firmly.

• Plug in the cord firmly.

only one speaker.

• Left speaker is not connected to the

• Plug in Speaker cord firmly.



right speaker.









Although the speakers are magnetically shielded, they may affect some monitors if installed nearby. Should color deterioration occur on a monitor, place the speakers slightly away. Turn off the monitor, and keep it turned off for about 15 to 20 minutes.

By doing this, normal color will be restored.

7Rear

Line-input cord (green plug): 2 m (6.5 ft)

Right speaker

Left speaker

DC IN jack

L SPKR (left speaker) jack (brown connector)

Left speaker cord (brown plug):

2 m (6.5 ft)

Specifications

7 Amplifier:

Power output

1.5 W per channel (at 10 % THD)



Input impedance

12 kΩ (nominal)



Input sensitivity

200 mV/1 kHz/1 W



Power supply

DC 9 V 500 mA (by AC adapter)



Power consumption

12 W





Signal-to-noise ratio

72 dB



7 Power Requirements:

AC 120 V

, 60 Hz

7 Speaker System:

Enclosures

Plastic molded



Frequency response

100 Hz – 20 000Hz



Speaker uint

90 mm x 50 mm (3-9/16in. x 2 in.) cone type,





magnetically shielded

7 Dimensions (H/W/D): Right speaker:

200 mm x 80.5 mm x 112 mm





(7-7/8in. x 3-1/4in. x 4-7/16in.)



Left speaker:

200 mm x 80.5 mm x 99.3 mm





(7-7/8in. x 3-1/4in. x 3-15/16in.)

7 Mass:

Right speaker: 400 g (0.89 lbs)

Left speaker: 345 g (0.77 lbs)

* Design and specifications are subject to change without notice.
