Place the footrest on the side braces align the front predrilled holes and insert the bolts.

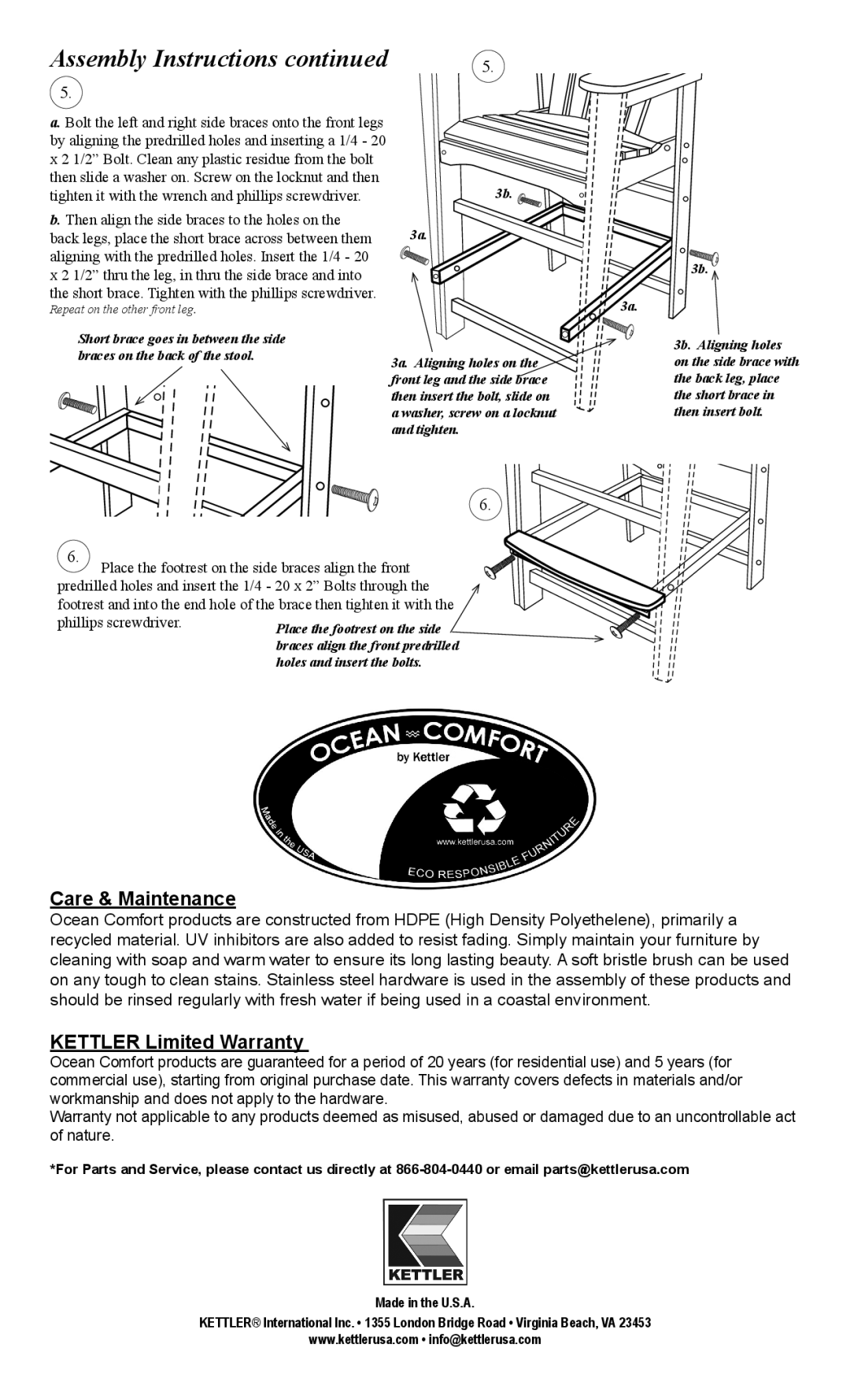

Assembly Instructions continued

5.

5.



a. Bolt the left and right side braces onto the front legs by aligning the predrilled holes and inserting a 1/4 - 20 x 2 1/2” Bolt. Clean any plastic residue from the bolt then slide a washer on. Screw on the locknut and then tighten it with the wrench and phillips screwdriver.

b. Then align the side braces to the holes on the back legs, place the short brace across between them aligning with the predrilled holes. Insert the 1/4 - 20 x 2 1/2” thru the leg, in thru the side brace and into the short brace. Tighten with the phillips screwdriver.

Repeat on the other front leg.

Short brace goes in between the side braces on the back of the stool.

3b.



3a.





3b.



3a.



3b. Aligning holes

3a. Aligning holes on the

on the side brace with

front leg and the side brace

the back leg, place

then insert the bolt, slide on

the short brace in

a washer, screw on a locknut

then insert bolt.

and tighten.



6.

6.

Place the footrest on the side braces align the front



predrilled holes and insert the 1/4 - 20 x 2” Bolts through the footrest and into the end hole of the brace then tighten it with the phillips screwdriver.

Care & Maintenance

Ocean Comfort products are constructed from HDPE (High Density Polyethelene), primarily a recycled material. UV inhibitors are also added to resist fading. Simply maintain your furniture by cleaning with soap and warm water to ensure its long lasting beauty. A soft bristle brush can be used on any tough to clean stains. Stainless steel hardware is used in the assembly of these products and should be rinsed regularly with fresh water if being used in a coastal environment.

KETTLER Limited Warranty

Ocean Comfort products are guaranteed for a period of 20 years (for residential use) and 5 years (for commercial use), starting from original purchase date. This warranty covers defects in materials and/or workmanship and does not apply to the hardware.

Warranty not applicable to any products deemed as misused, abused or damaged due to an uncontrollable act of nature.

*For Parts and Service, please contact us directly at 866-804-0440 or email parts@kettlerusa.com

Made in the U.S.A.

KETTLER® International Inc. • 1355 London Bridge Road • Virginia Beach, VA 23453

www.kettlerusa.com • info@kettlerusa.com
