Page 1
Image 1

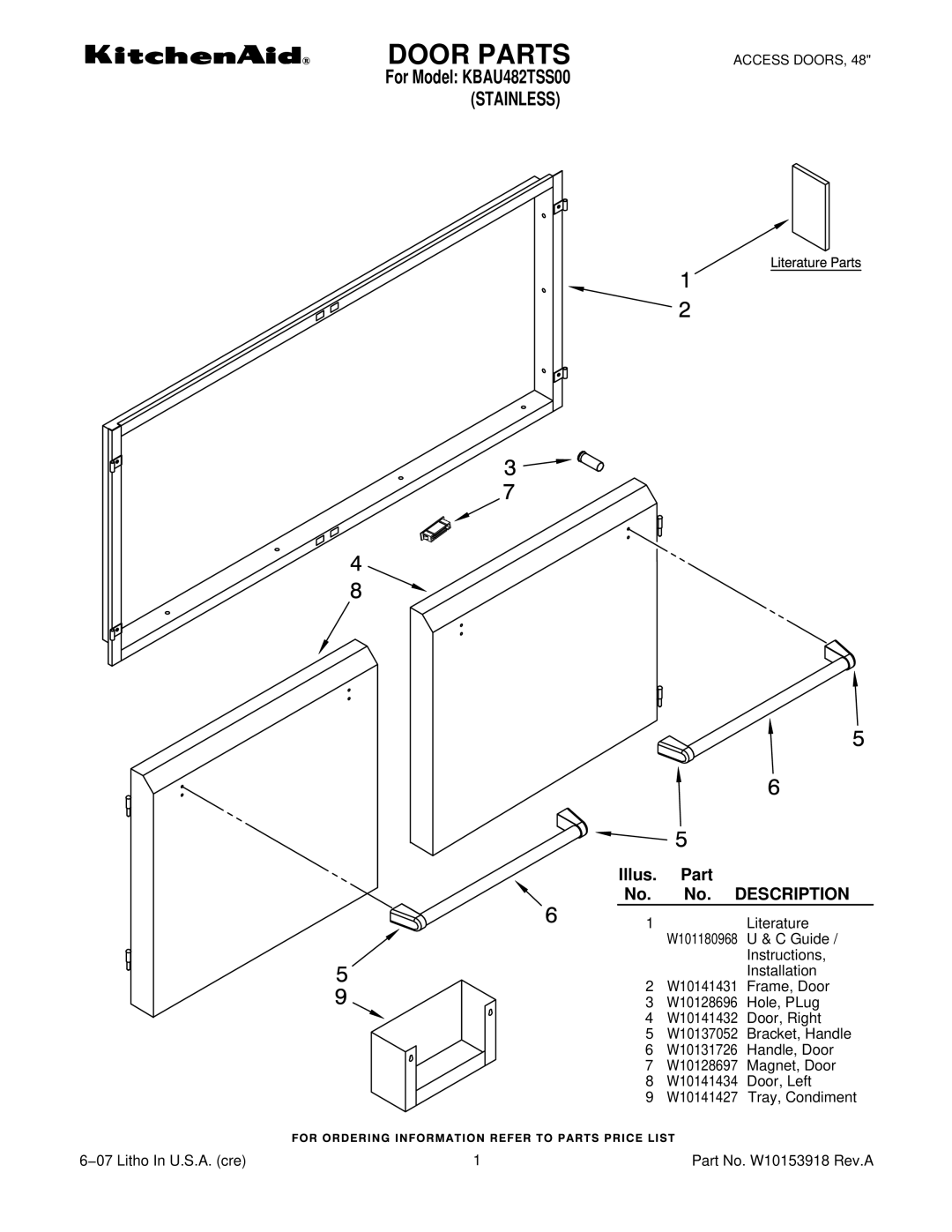

DOOR PARTS

DOOR PARTS

For Model: KBAU482TSS00

(STAINLESS)

ACCESS DOORS, 48"

Illus. Part

No. No. DESCRIPTION

1Literature

W101180968 U & C Guide / Instructions, Installation

2W10141431 Frame, Door

3W10128696 Hole, PLug

4W10141432 Door, Right

5W10137052 Bracket, Handle

6W10131726 Handle, Door

7W10128697 Magnet, Door

8W10141434 Door, Left

9W10141427 Tray, Condiment

6−07 Litho In U.S.A. (cre)

1

Part No. W10153918 Rev.A
Page 1
Image 1
