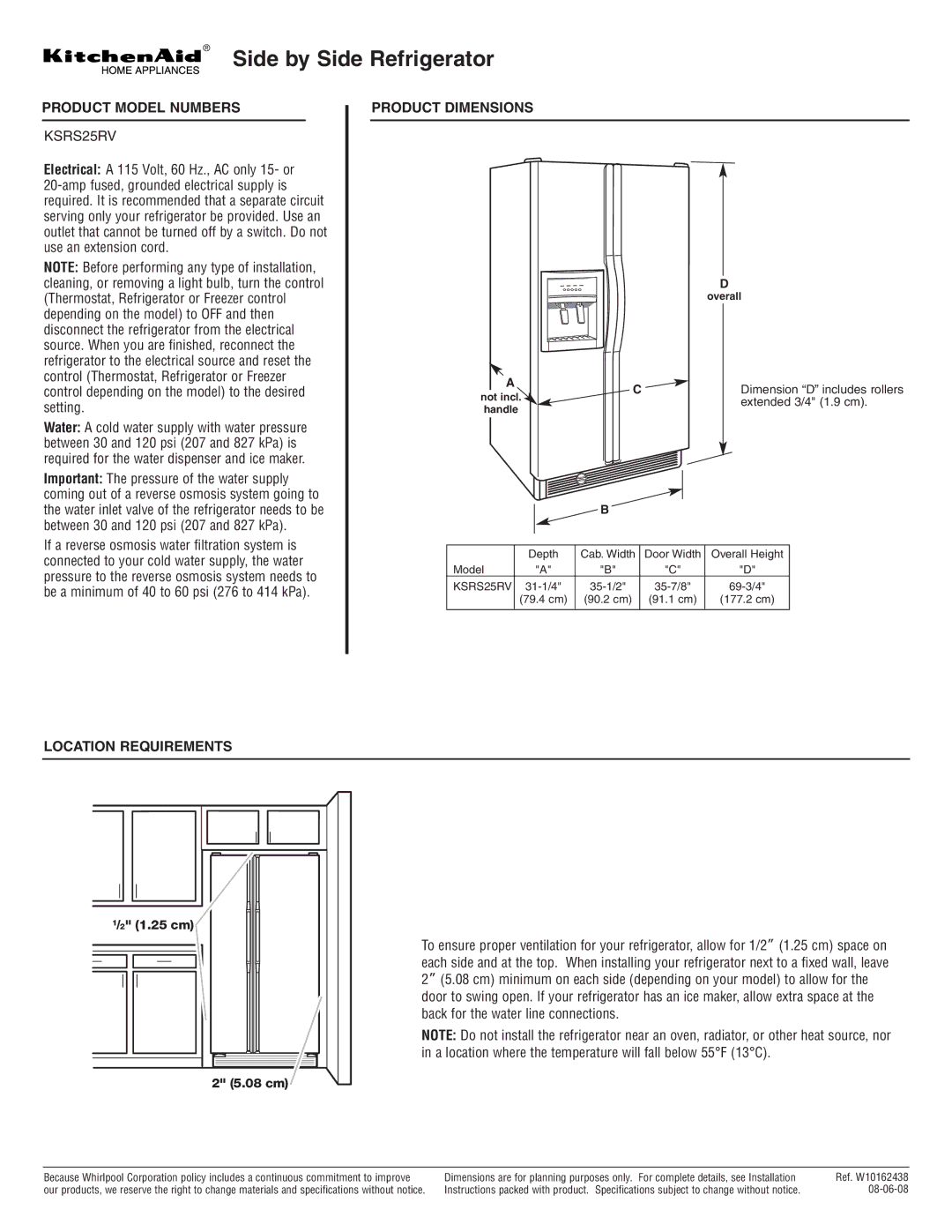

® Side by Side Refrigerator

PRODUCT MODEL NUMBERS

KSRS25RV

Electrical: A 115 Volt, 60 Hz., AC only 15- or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the control (Thermostat, Refrigerator or Freezer control depending on the model) to OFF and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and reset the control (Thermostat, Refrigerator or Freezer control depending on the model) to the desired setting.

Water: A cold water supply with water pressure between 30 and 120 psi (207 and 827 kPa) is required for the water dispenser and ice maker.

Important: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and 827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

PRODUCT DIMENSIONS

1

D

overall

























































A













C



Dimension “D” includes rollers

not incl.



















extended 3/4" (1.9 cm).





handle



























































B



Depth

Cab. Width

Door Width

Overall Height

Model

"A"

"B"

"C"

"D"

KSRS25RV

31-1/4"

35-1/2"

35-7/8"

69-3/4"



(79.4 cm)

(90.2 cm)

(91.1 cm)

(177.2 cm)











LOCATION REQUIREMENTS

1/2" (1.25 cm)

2" (5.08 cm)

To ensure proper ventilation for your refrigerator, allow for 1/2” (1.25 cm) space on each side and at the top. When installing your refrigerator next to a fixed wall, leave 2” (5.08 cm) minimum on each side (depending on your model) to allow for the door to swing open. If your refrigerator has an ice maker, allow extra space at the back for the water line connections.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor in a location where the temperature will fall below 55°F (13°C).

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Ref. W10162438

Instructions packed with product. Specifications subject to change without notice.

08-06-08

Page 1 Page 1
Page 1
Image 1
KitchenAid KSRS25RV dimensions Side by Side Refrigerator, Product Model Numbers, Product Dimensions, Location Requirements
Page 1 Page 1

KSRS25RV specifications

The KitchenAid KSRS25RV is a standout refrigerator that combines modern design with innovative technology, perfect for today’s cooking enthusiast. Engineered to meet the demands of a busy kitchen, this model offers a blend of functionality and aesthetic appeal.

One of the key features of the KSRS25RV is its spacious interior, designed to accommodate large grocery loads. The refrigerator boasts a generous capacity, with flexible storage options including adjustable shelves and humidity-controlled crispers to keep fruits and vegetables fresh for longer. The ClearVue bins also provide easy visibility of your food items, making organization a breeze.

In terms of cooling technology, the KSRS25RV is equipped with the advanced Adaptive Defrost system. This smart feature optimizes defrosting based on usage patterns, which helps to maintain efficient energy use and minimize the frequency of defrost cycles. Additionally, its Accu-Chill Temperature Management System intelligently senses and adapts to temperature fluctuations to keep food at the perfect chill.

The external water and ice dispenser is another highlight, delivering filtered water and fresh, crushed, or cubed ice on demand. This feature not only adds convenience but also supports a healthier lifestyle by encouraging hydration. Filtered water means you can enjoy refreshing drinks without unwanted impurities.

The design of the KSRS25RV is equally impressive, boasting a sleek stainless-steel finish that enhances any kitchen décor. The built-in LED lighting illuminates the interior efficiently, making it easy to find your food, while the rounded doors add to its contemporary look.

Energy efficiency is yet another characteristic of this refrigerator. With an Energy Star certification, the KSRS25RV helps reduce energy consumption, which translates to savings on utility bills and a smaller carbon footprint.

The KitchenAid KSRS25RV combines stylish design with cutting-edge features and technologies, making it an ideal choice for families and cooking aficionados alike. With its ample storage, advanced cooling technologies, and user-friendly design, this refrigerator elevates the kitchen experience while ensuring that food stays fresh and easily accessible. Whether you’re storing ingredients for a family meal or beverages for a gathering, the KSRS25RV stands out as a reliable and stylish addition to any home.
