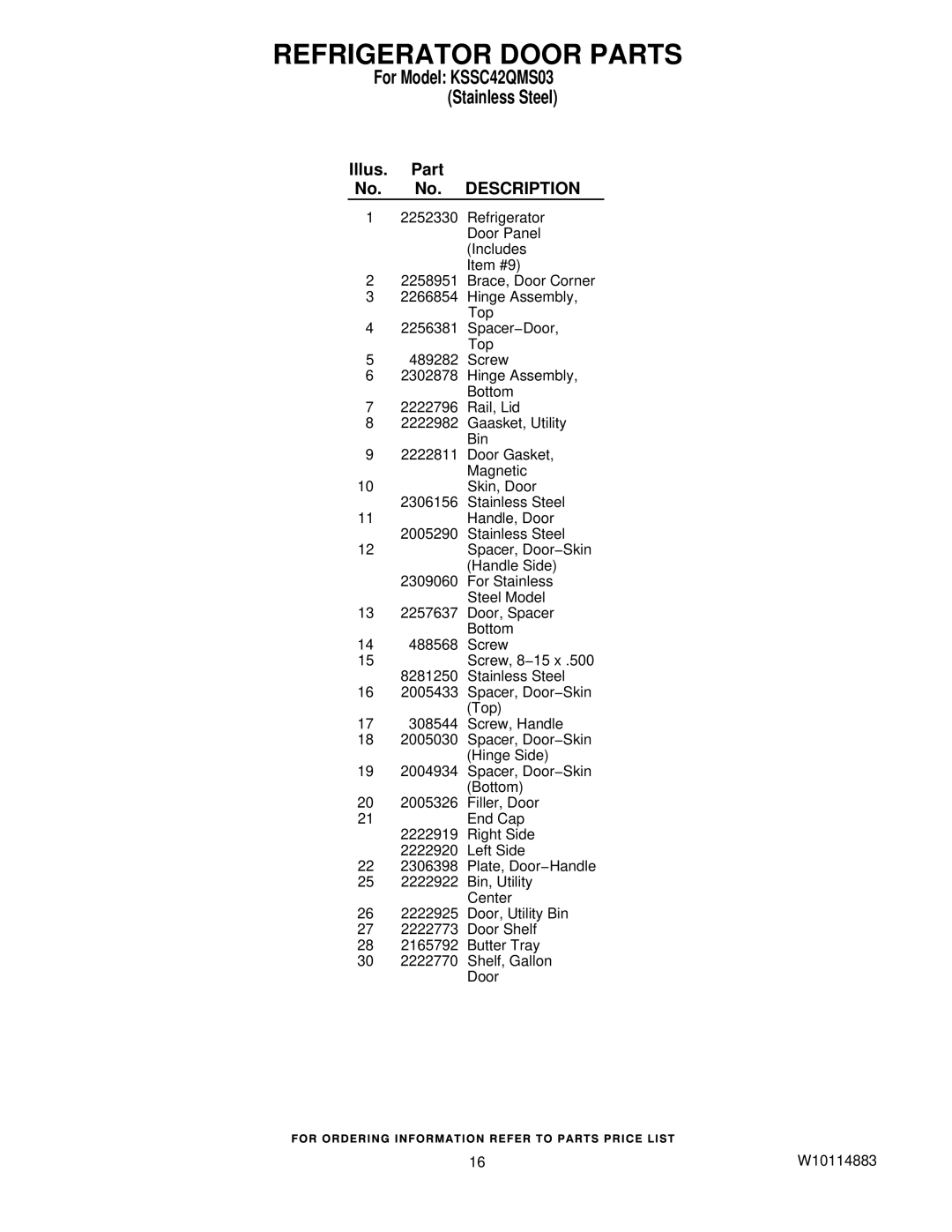

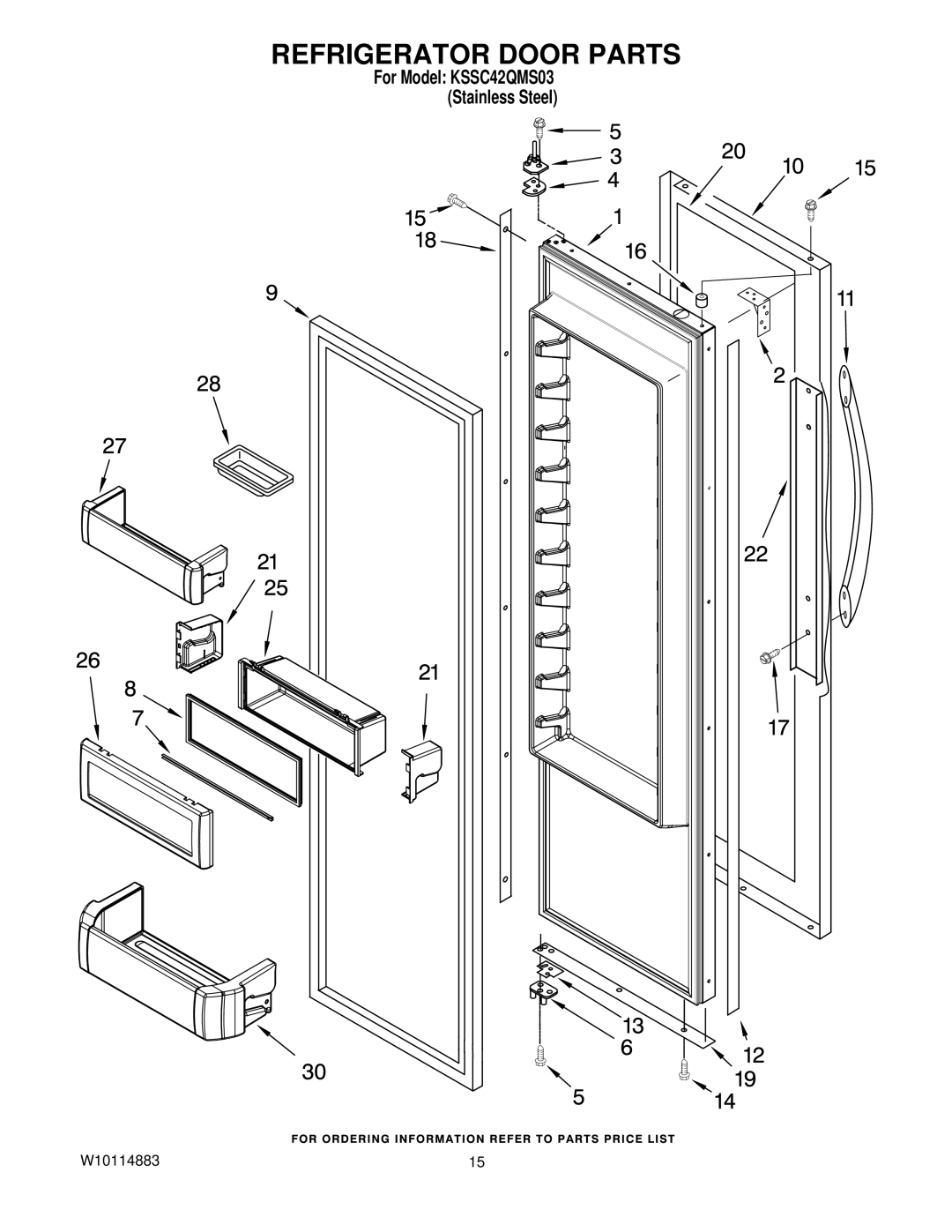

REFRIGERATOR DOOR PARTS

For Model: KSSC42QMS03 (Stainless Steel)

Illus. Part

No. No. DESCRIPTION

12252330 Refrigerator Door Panel (Includes Item #9)

22258951 Brace, Door Corner

32266854 Hinge Assembly, Top

42256381 Spacer−Door,

Top

5489282 Screw

62302878 Hinge Assembly,

Bottom

72222796 Rail, Lid

82222982 Gaasket, Utility Bin

92222811 Door Gasket, Magnetic

10Skin, Door

2306156 Stainless Steel

11Handle, Door

2005290 Stainless Steel

12Spacer, Door−Skin (Handle Side)

2309060 For Stainless

Steel Model

132257637 Door, Spacer Bottom

14488568 Screw

15Screw, 8−15 x .500

8281250 Stainless Steel

162005433 Spacer, Door−Skin (Top)

17308544 Screw, Handle

182005030 Spacer, Door−Skin (Hinge Side)

192004934 Spacer, Door−Skin

(Bottom)

202005326 Filler, Door

21End Cap

2222919 Right Side

2222920 Left Side

222306398 Plate, Door−Handle

252222922 Bin, Utility

Center

262222925 Door, Utility Bin

272222773 Door Shelf

282165792 Butter Tray

302222770 Shelf, Gallon Door

16

W10114883

Page 16
