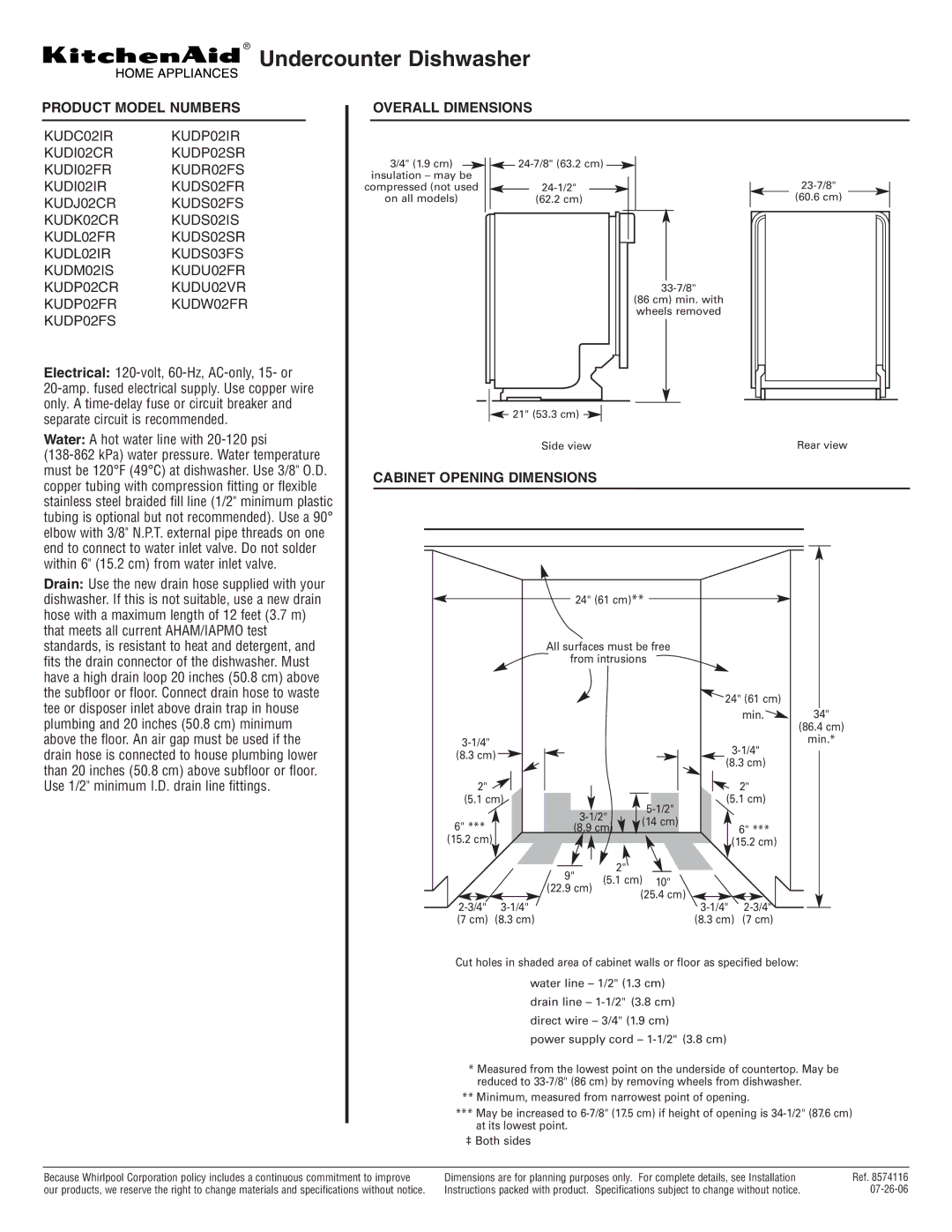

KitchenAid KUDJ02CR dimensions Undercounter Dishwasher, Product Model Numbers, Overall Dimensions

®

Undercounter Dishwasher

PRODUCT MODEL NUMBERS

KUDC02IRKUDP02IR

KUDI02CRKUDP02SR

OVERALL DIMENSIONS

KUDI02FRKUDR02FS

KUDI02IRKUDS02FR

KUDJ02CRKUDS02FS

KUDK02CRKUDS02IS

KUDL02FRKUDS02SR

KUDL02IRKUDS03FS

KUDM02ISKUDU02FR

KUDP02CRKUDU02VR

KUDP02FRKUDW02FR KUDP02FS

Electrical: 120-volt, 60-Hz, AC-only, 15- or

20-amp. fused electrical supply. Use copper wire only. A time-delay fuse or circuit breaker and

3/4" (1.9 cm)	24-7/8" (63.2 cm)
insulation – may be
compressed (not used		24-1/2"
on all models)		(62.2 cm)

33-7/8"

(86 cm) min. with wheels removed

23-7/8"

(60.6 cm)

separate circuit is recommended.

Water: A hot water line with 20-120 psi

(138-862 kPa) water pressure. Water temperature must be 120°F (49°C) at dishwasher. Use 3/8" O.D. copper tubing with compression fitting or flexible stainless steel braided fill line (1/2" minimum plastic tubing is optional but not recommended). Use a 90° elbow with 3/8" N.P.T. external pipe threads on one end to connect to water inlet valve. Do not solder within 6" (15.2 cm) from water inlet valve.

Drain: Use the new drain hose supplied with your dishwasher. If this is not suitable, use a new drain hose with a maximum length of 12 feet (3.7 m) that meets all current AHAM/IAPMO test standards, is resistant to heat and detergent, and fits the drain connector of the dishwasher. Must have a high drain loop 20 inches (50.8 cm) above the subfloor or floor. Connect drain hose to waste tee or disposer inlet above drain trap in house plumbing and 20 inches (50.8 cm) minimum above the floor. An air gap must be used if the drain hose is connected to house plumbing lower than 20 inches (50.8 cm) above subfloor or floor. Use 1/2" minimum I.D. drain line fittings.

21" (53.3 cm)

Side view Rear view

CABINET OPENING DIMENSIONS

24" (61 cm)**

All surfaces must be free

from intrusions

24" (61

cm)

min.

34"

(86.4 cm)

3-1/4"

3-1/4"

min.*

(8.3 cm)

(8.3 cm)

2"

2"

(5.1 cm)

5

-1/2"

(5.1 cm)

3-1/2"

6" ***

(14 cm)

(8.9 cm)

6" ***

(15.2 cm)

(15.2 cm)

9"

2"

(5.1 cm)

10"

(22.9 cm)

(25.4 cm)

2-3/4" 3-1/4"

3-1/4" 2-3/4"

(7 cm)

(8.3 cm)

(8.3 cm) (7 cm)

Cut holes in shaded area of cabinet walls or floor as specified below:

water line – 1/2" (1.3 cm)

drain line – 1-1/2" (3.8 cm)

direct wire – 3/4" (1.9 cm)

power supply cord – 1-1/2" (3.8 cm)

*Measured from the lowest point on the underside of countertop. May be reduced to 33-7/8" (86 cm) by removing wheels from dishwasher.

**Minimum, measured from narrowest point of opening.

***May be increased to 6-7/8" (17.5 cm) if height of opening is 34-1/2" (87.6 cm) at its lowest point.

‡Both sides

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation	Ref. 8574116
Instructions packed with product. Specifications subject to change without notice.	07-26-06
