KitchenAid KUDS03FSBT1 manual Heater Parts, Black, White, Biscuit, Illus. Part No. No. DESCRIPTION

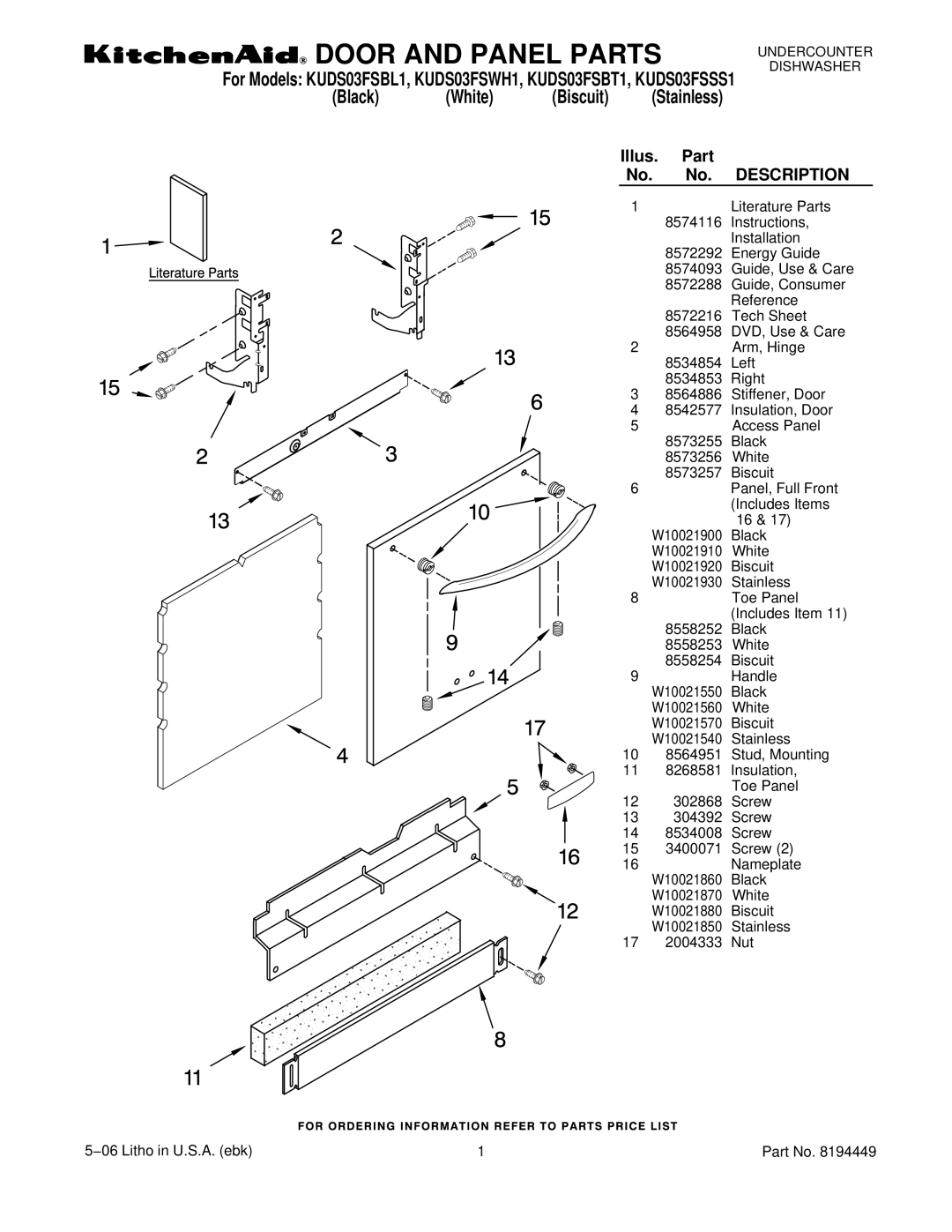

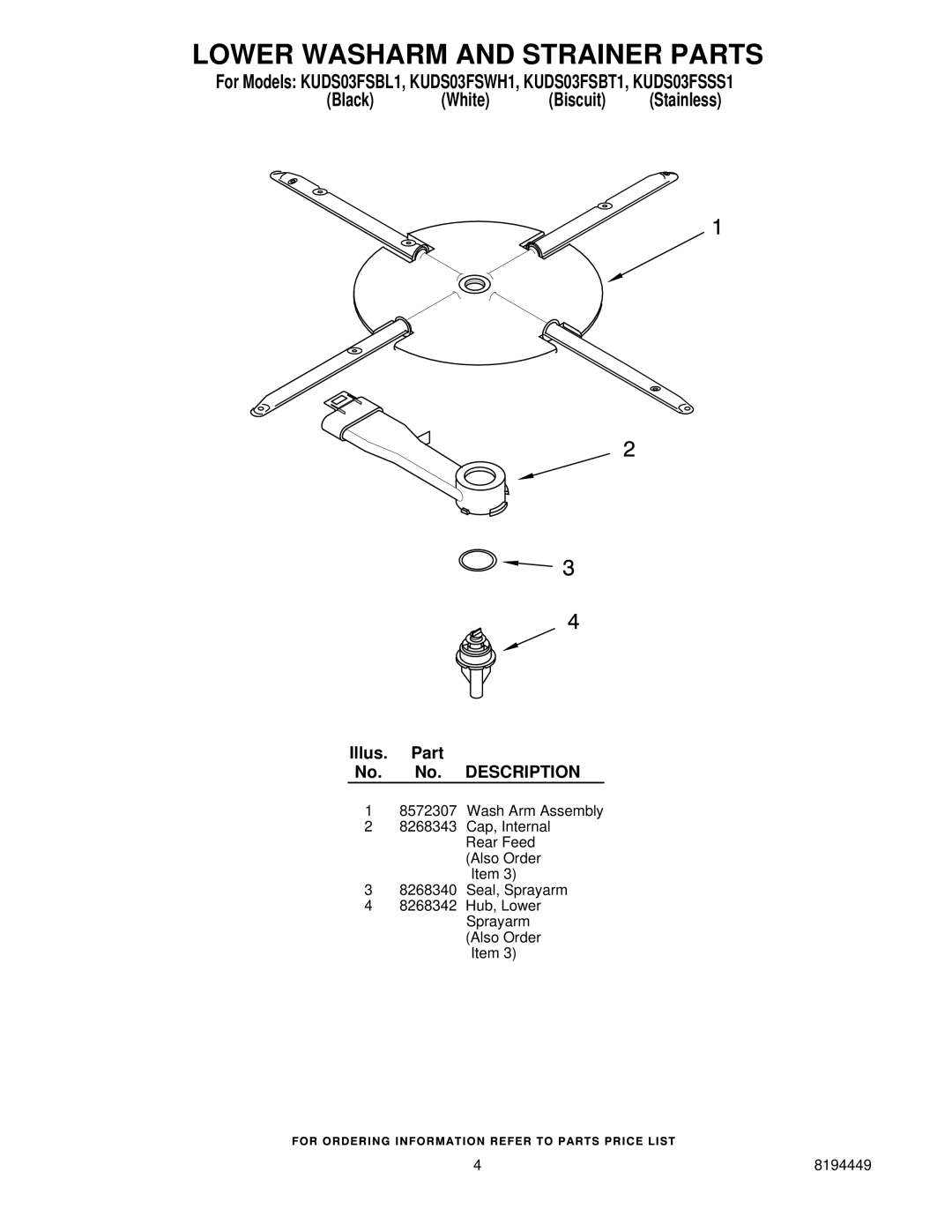

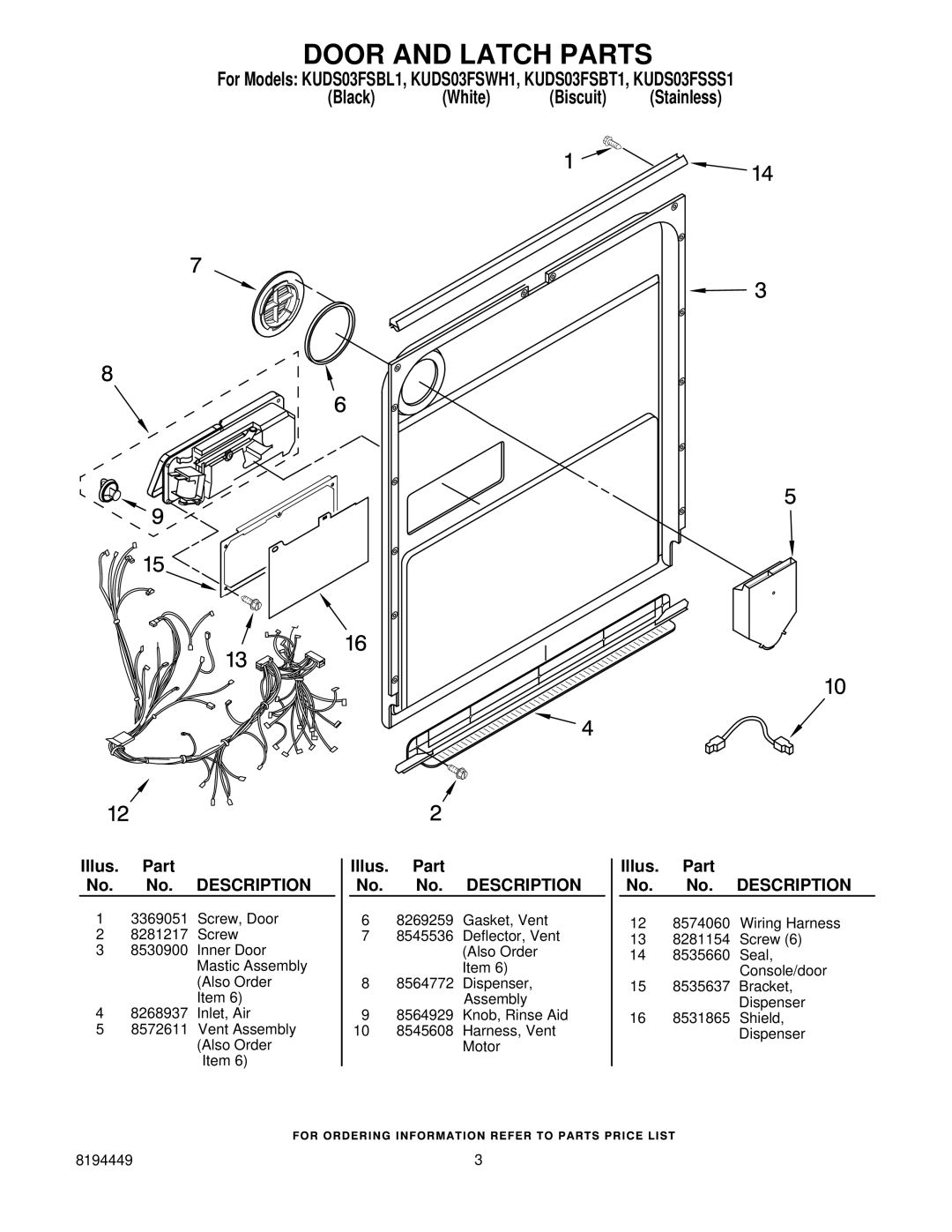

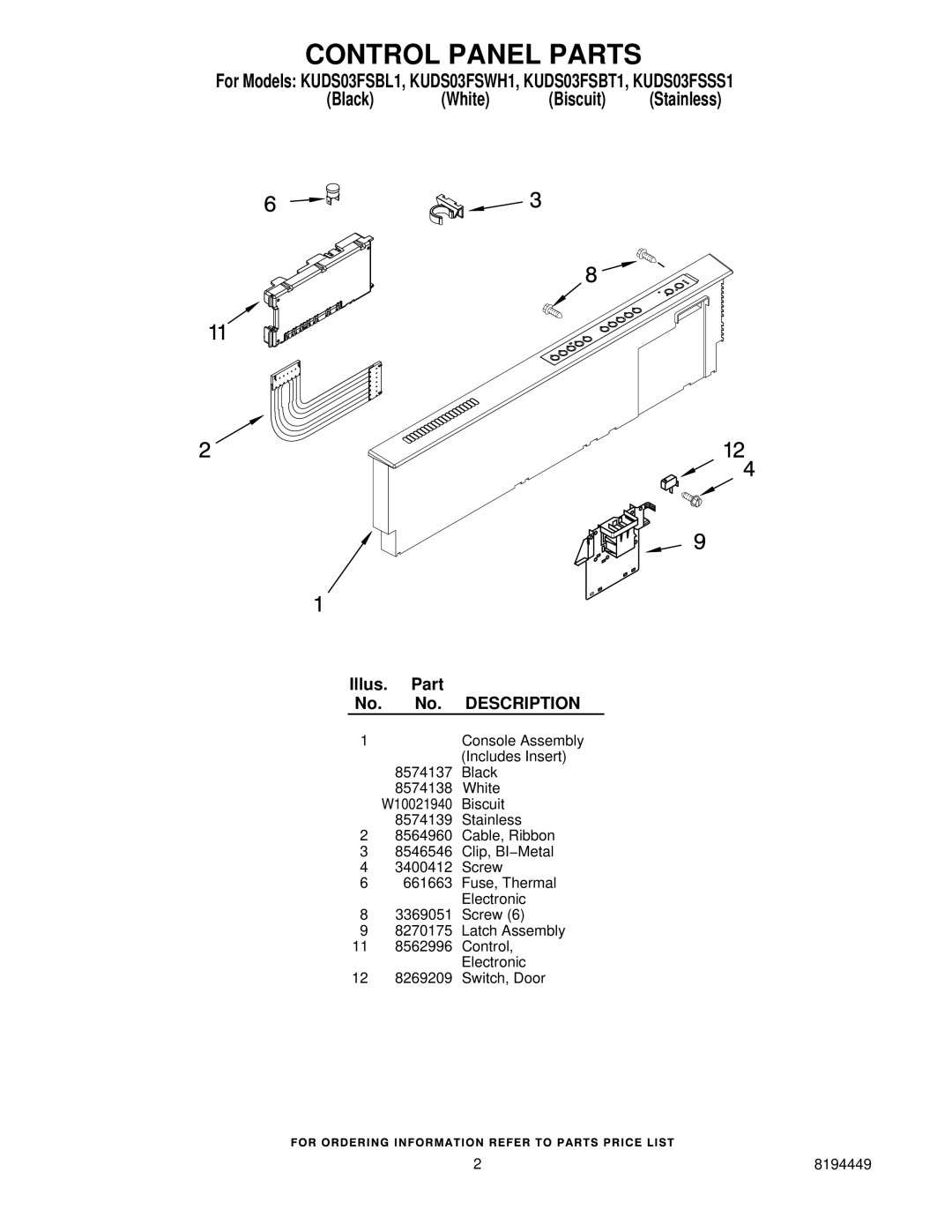

Models: KUDS03FSSS1 KUDS03FSWH1 KUDS03FSBT1 KUDS03FSBL1

1 16

Download 16 pages 44.77 Kb

Page 5

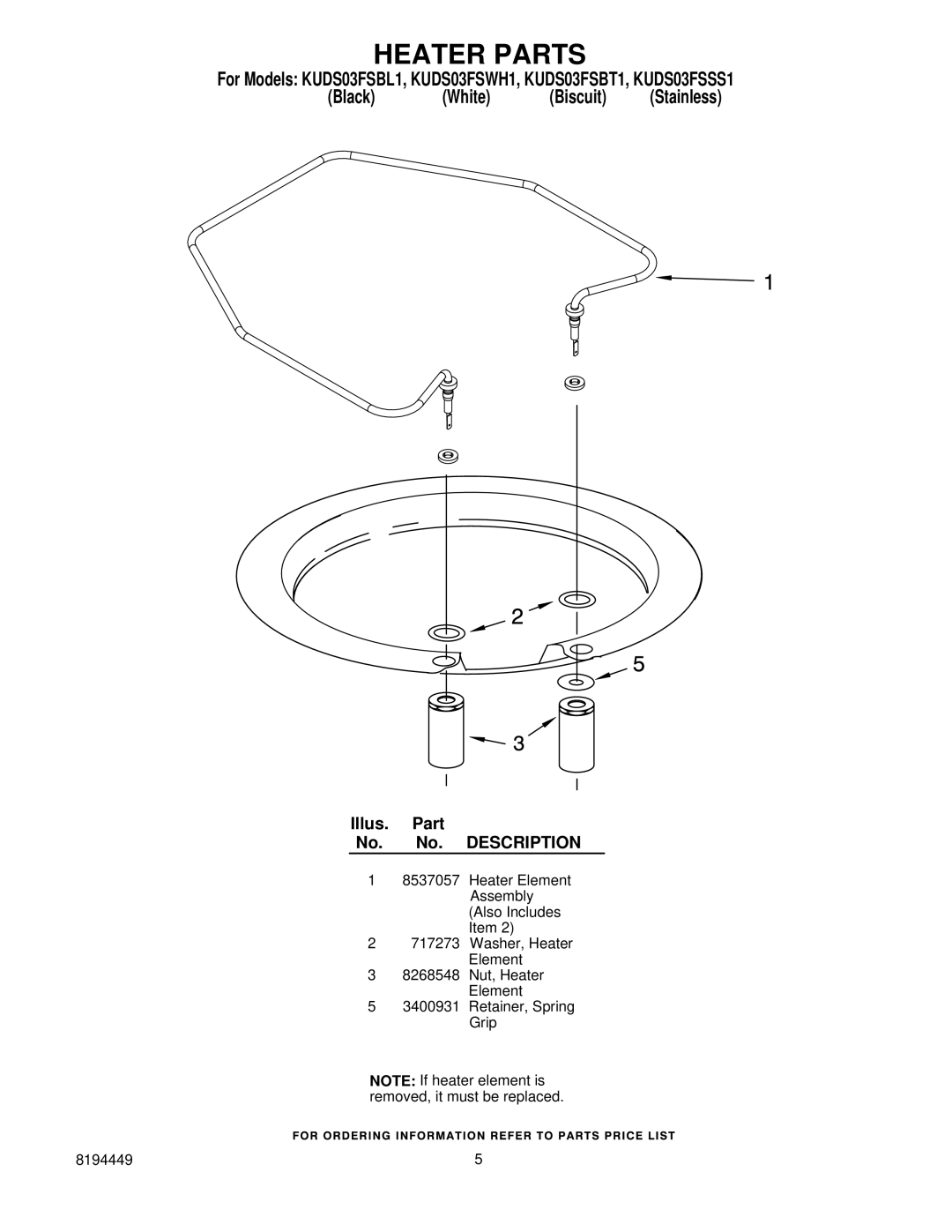

HEATER PARTS

HEATER PARTS

For Models: KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1

(Black)

(White)

(Biscuit)

(Stainless)

Illus. Part

No. No. DESCRIPTION

18537057 Heater Element Assembly (Also Includes Item 2)

2717273 Washer, Heater Element

38268548 Nut, Heater

Element

53400931 Retainer, Spring Grip

NOTE: If heater element is removed, it must be replaced.

8194449

5

Image 5

KitchenAid manual Heater Parts, For Models KUDS03FSBL1, KUDS03FSWH1, KUDS03FSBT1, KUDS03FSSS1, Black, White, Biscuit
