Component Balun Specifications:

Models and Dimensions

UR-P3 (in-wall Decora™ version): 4.1"h x 1.4" w x 2.0"d.

UR-V3 (black enclosure): 1.1"h x 2.6"w x 2.8"d (28 x 66 x 71 mm).

US-P3 (in-wall Decora™ version): 4.1"h x 1.4"w x 2.0"d.

US-V3 (black enclosure): 1.1"h x 2.6"w x 2.8"d (28 x 66 x 71 mm).

US3-Hub (black stackable enclosure).

Video Bandwidth: 450 MHz +/- 3 dB.

Video Input: Receive unit: 0.5 V to 2V.

Video Output: Send unit: 0.5 V to 2 V.

Input and Outputs:

Send Unit: three RCA input jacks, one RJ-45 out-jack, one-DC power input.

Receive Unit: three RCA output jacks, one RJ-45 out-jack.

US3-Hub: Three RCA input jacks, six RJ-45 output jacks, one DC power input, one input and one output link RJ45 jack.

Power

Send Unit: 12 VDC (one PS1202 power supply will power one send and one receive and is connected to the send unit only.) Receive Unit: 12 VDC (from send or hub).

US3-Hub: 15 VDC (one PS1506, included, will power the hub and up to six receives).

Warranty

Knoll Systems warrants its products sold in the USA and Canada by authorized Knoll dealers to be free of defects in materials and workmanship. This warranty extends for three full years from the date of purchase by the original consumer. Any products returned to Knoll Systems and found to be defective by Knoll Systems within the warranty period will be repaired or replaced at Knoll Systems option, at no charge. Knoll Systems will not be responsible for the actual cost of installation or removal of the product, nor for any incidental or consequential damages. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal rights. You may have additional legal rights that vary from state to state.

Knoll Systems www.knollsystems.com

145 Tyee Drive Point Roberts, WA 98281

12140 Horseshoe Way, Richmond BC V7A 4V4 tel (604) 272 4555, fax (604) 272 5595

UR-P3 Component Video Receiver

UR-V3 Component Video Receiver

US-P3 Component Video Sender

US-V3 Component Video Sender

Installation Instructions v1.1

Warning: To be installed and/or used in accordance with appropriate electrical codes and regulations. If you are not sure about any part of these instructions, consult a qualified electrician.

Caution: Do not install this product in an electrical junction box with 110V or higher unless an approved barrier separates the high and low voltage sections.

Introduction: Thank you for your purchase of a Knoll active balun system. This system is specifically designed to send a three wire Pb, Pr, Y component or RGB signal safely down a cat 5 or cat 5e wire up to 500 feet without encountering image problems. Balun is an acronym for:

BALance – UNbalance

The send module takes a conventional component signal and balances it (signal is not tied to a ground reference) then sends it via cat 5 to the receive module (with power from the send module). The receive module unbalances the component signal back to its former state. This process does not allow any stray magnetism of any sort to contaminate the signal while it is being transported.

Features:

Tabletop box design or Decora™ style available.

Will safely send 480i/p, 720p and 1080i/p signals.

PS1202 power supply required on send side only.

6 output hub available

Made in Canada Knoll Systems All Rights Reserved

Mix and match decora style and tabletop style.

Page 1
Image 1

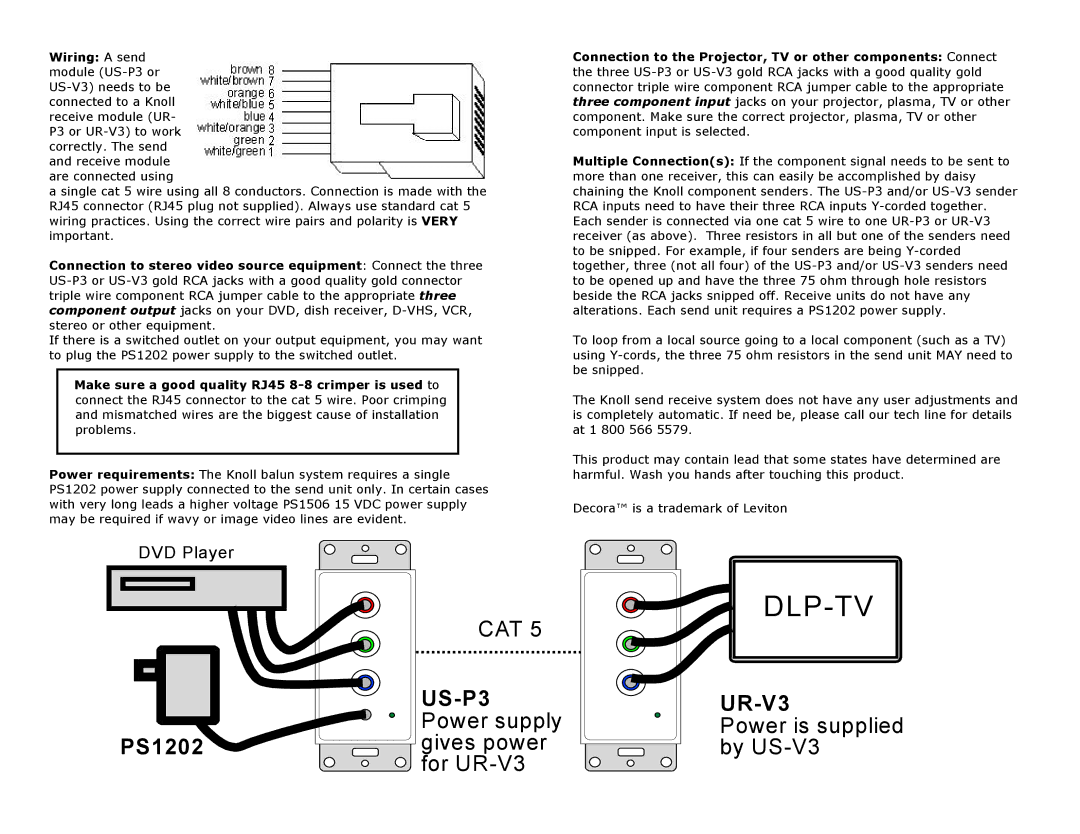

Knoll Systems US3-HUB, US-V3, US-P3 warranty Component Balun Specifications, Warranty, Installation Instructions, Features

US-P3, UR-V3, US3-HUB, US-V3, UR-P3 specifications
