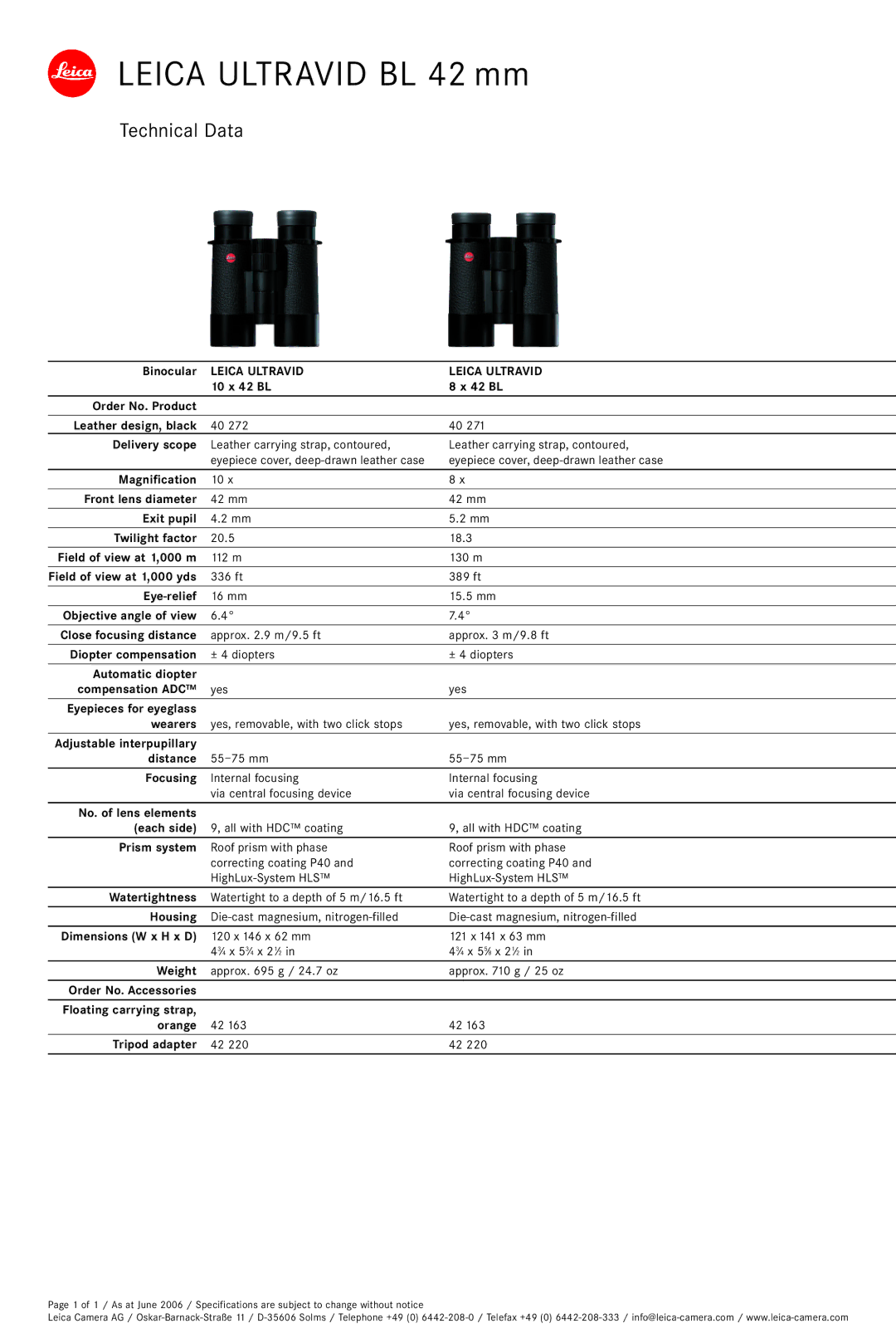

LEICA ULTRAVID BL 42 mm
Technical Data
Binocular | LEICA ULTRAVID | LEICA ULTRAVID |
| 10 x 42 BL | 8 x 42 BL |
Order No. Product |
|
|
Leather design, black | 40 272 | 40 271 |
Delivery scope | Leather carrying strap, contoured, | Leather carrying strap, contoured, |
| eyepiece cover, | eyepiece cover, |
Magnification | 10 x | 8 x |
Front lens diameter | 42 mm | 42 mm |
Exit pupil | 4.2 mm | 5.2 mm |
Twilight factor | 20.5 | 18.3 |
Field of view at 1,000 m | 112 m | 130 m |
Field of view at 1,000 yds | 336 ft | 389 ft |
| 16 mm | 15.5 mm |
Objective angle of view | 6.4° | 7.4° |
Close focusing distance | approx. 2.9 m/9.5 ft | approx. 3 m/9.8 ft |
Diopter compensation | ± 4 diopters | ± 4 diopters |
Automatic diopter |
|
|
compensation ADC™ | yes | yes |
Eyepieces for eyeglass |
|
|
wearers | yes, removable, with two click stops | yes, removable, with two click stops |
Adjustable interpupillary |
|
|
distance | ||
Focusing | Internal focusing | Internal focusing |
| via central focusing device | via central focusing device |
|
|
|
No. of lens elements |
|
|
(each side) | 9, all with HDC™ coating | 9, all with HDC™ coating |
Prism system Roof prism with phase correcting coating P40 and
Roof prism with phase correcting coating P40 and
Watertightness | Watertight to a depth of 5 m/16.5 ft | Watertight to a depth of 5 m/16.5 ft | ||||||||||||||||||||||
Housing | ||||||||||||||||||||||||
Dimensions (W x H x D) | 120 x 146 x 62 mm | 121 x 141 x 63 mm | ||||||||||||||||||||||
| 4 | 3 | ⁄ | 4 | x 5 | 3 | ⁄ | 4 | x 2 | 1 | ⁄ | 2 | in | 4 | 3 | ⁄ | 4 | x 5 | 5 | 8 | 1 | ⁄ | 2 | in |
|
|
|
|
|
|
|
|
| ⁄ x 2 |
|
| |||||||||||||
Weight | approx. 695 g / 24.7 oz | approx. 710 g / 25 oz | ||||||||||||||||||||||
Order No. Accessories |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Floating carrying strap, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
orange | 42 163 |
|
|
|
|
|
|
| 42 163 |
|
|
|
|
| ||||||||||
Tripod adapter | 42 220 |
|
|
|
|
|
|
| 42 220 |
|
|
|
|
| ||||||||||
Page 1 of 1 / As at June 2006 / Specifications are subject to change without notice
