Lytecaster® Recessed Downlighting  1000LVE































































































































































Page 1 of 1































5" Aperture Electronic Low Voltage MR16 Incandescent Frame-In Kit

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Frame-In Kit

Reflector Trims — See Individual Reflector Trim Specification Sheets







Adjustable



1000LVE1

Baffles

Aperture Cone

Pinhole

Elbow











120V- 0.67A Max

1055LV

1056LV

1064WDLV

1052LV

1062LV



1055WHLV

1063LV

1064WDPLV





1000LVE2



1064LV







277V- 0.27A Max



1064CDLV



















Features

1.Mounting Frame: .036" (#20 ga.) galvanized steel. Accommodates all ceilings up to 1" thick; including existing or inaccessible areas. Breakout section and anchor nails permits installation in existing ceilings from below. Push-in/twist-out rotoclips hold reflector flush to ceiling.

2.Junction Box: 4" x 3 1/2”x 2", .063" (#14 ga.) galvanized steel. U.L. listed for maximum of 8 No. 12 ga. 90° C through branch circuit conductors (1000LVE2 only). Integral cable clamps permit attachment of nonmetallic Romex® or armored cable without need of additional connectors.

3.Mounting Bars: .059" (#16 ga.) galvanized steel. 13" long bars extend to 27" with integral nailing tabs. Attaches to wood joist without need of accessories.

4.Socket Housing: .036" (#20 ga.) galvanized steel.

5.Socket: Field replaceable. Two pin socket, pre-wired with #18 SF1 leads to junction box.

6.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

7.Transformer: Outboard mounted, Electronic, 120V (1000LVE1), 277V (1000LVE2)primary, nominal 12V secondary. Removable from below.

Dimming

Dimming Controls: Use only dimmers specifically designed for use with elec- tronic transformers. Consult Lightolier Controls for more information. Low volt- age luminaires may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.

Options & Accessories

Mounting Bars:

1964 - 20" set of (2)

T-Bar Ceiling Clips:

1956 - set of (4)

Options & Accessories (continued)

Plaster Ceiling Ring:

1960 - 7/8" depth for wet plaster ceilings.

Extra-Thick Ceiling



Mounting Ring:

1967B - up to 2" thick ceilings.

MR16 Socket Replacement:

1975B

Remodeler Anchor Clip:

1985N

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Romex® is a registered Trademark of General Cable Industries Inc.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • C1208

Lightolier is a Philips group brand

Page 1
Image 1

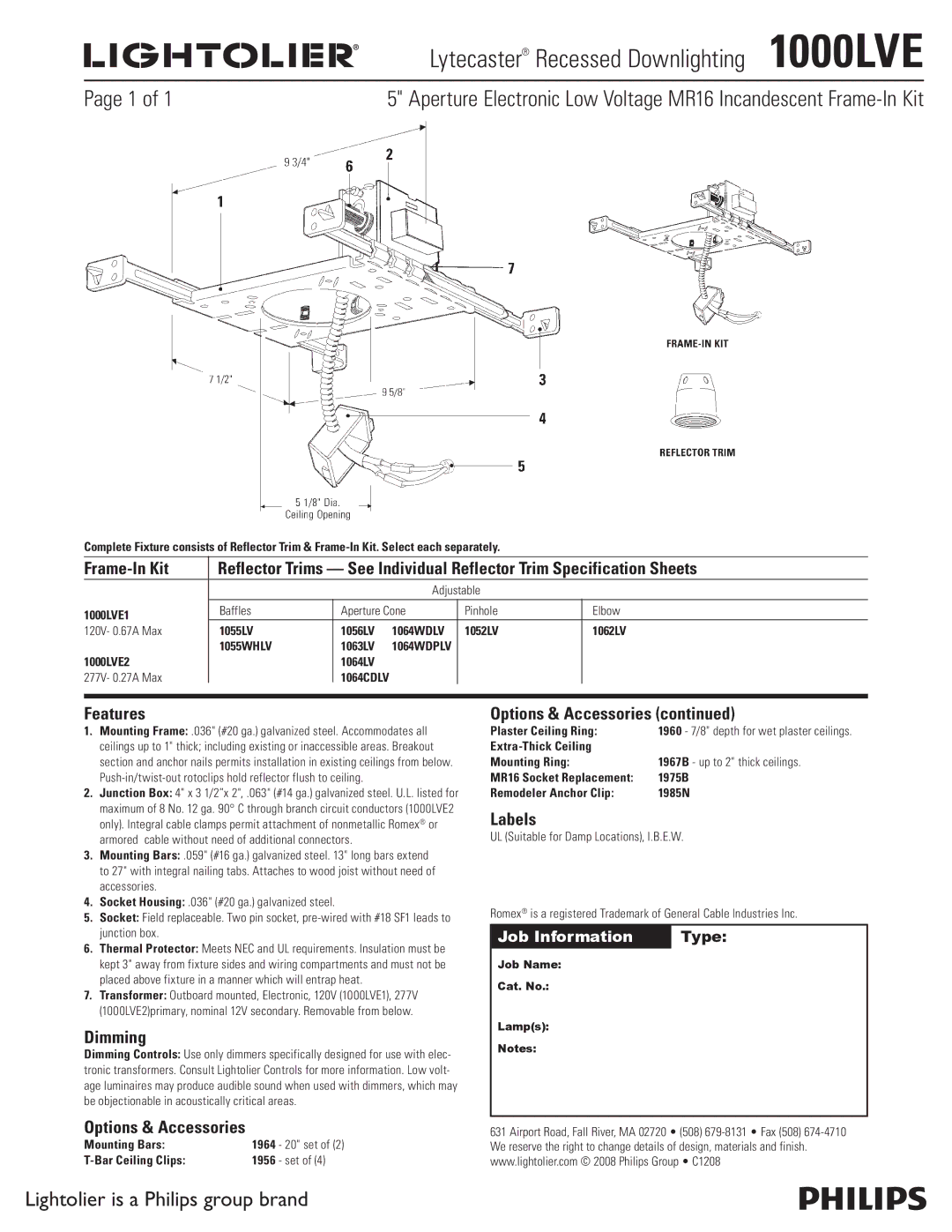

Lightolier specifications Lytecaster Recessed Downlighting 1000LVE, Features, Dimming, Options & Accessories, Labels
