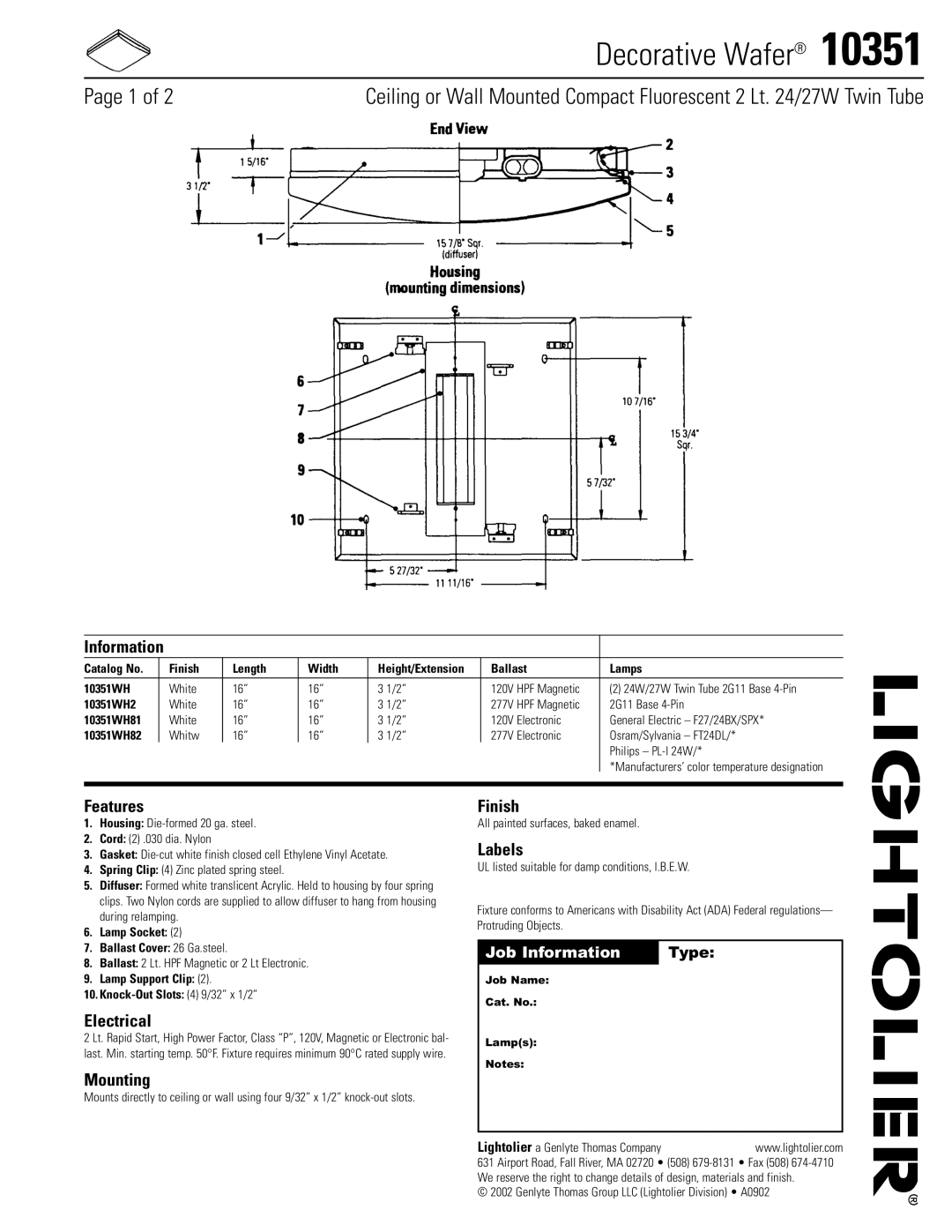

Decorative Wafer® 10351

Page 1 of 2 Ceiling or Wall Mounted Compact Fluorescent 2 Lt. 24/27W Twin Tube

Information
Catalog No.	Finish	Length	Width	Height/Extension	Ballast		Lamps
10351WH	White	16”	16”	3 1/2”	120V	HPF Magnetic	(2) 24W/27W Twin Tube 2G11 Base 4-Pin
10351WH2	White	16”	16”	3 1/2”	277V	HPF Magnetic	2G11 Base 4-Pin
10351WH81	White	16”	16”	3 1/2”	120V	Electronic	General Electric – F27/24BX/SPX*
10351WH82	Whitw	16”	16”	3 1/2”	277V	Electronic	Osram/Sylvania – FT24DL/*
							Philips – PL-l 24W/*
							*Manufacturers’ color temperature designation

Features

1.Housing: Die-formed 20 ga. steel.

2.Cord: (2) .030 dia. Nylon

3.Gasket: Die-cut white finish closed cell Ethylene Vinyl Acetate.

4.Spring Clip: (4) Zinc plated spring steel.

5.Diffuser: Formed white translicent Acrylic. Held to housing by four spring clips. Two Nylon cords are supplied to allow diffuser to hang from housing during relamping.

6.Lamp Socket: (2)

7.Ballast Cover: 26 Ga.steel.

8.Ballast: 2 Lt. HPF Magnetic or 2 Lt Electronic.

9.Lamp Support Clip: (2).

10.Knock-Out Slots: (4) 9/32” x 1/2”

Electrical

2 Lt. Rapid Start, High Power Factor, Class “P”, 120V, Magnetic or Electronic bal- last. Min. starting temp. 50°F. Fixture requires minimum 90°C rated supply wire.

Mounting

Mounts directly to ceiling or wall using four 9/32” x 1/2” knock-out slots.

Finish

All painted surfaces, baked enamel.

Labels

UL listed suitable for damp conditions, I.B.E.W.

Fixture conforms to Americans with Disability Act (ADA) Federal regulations— Protruding Objects.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
