Lightolier 1045 specifications Lytecaster Recessed Downlighting, Page 1 of, Job Information, Type

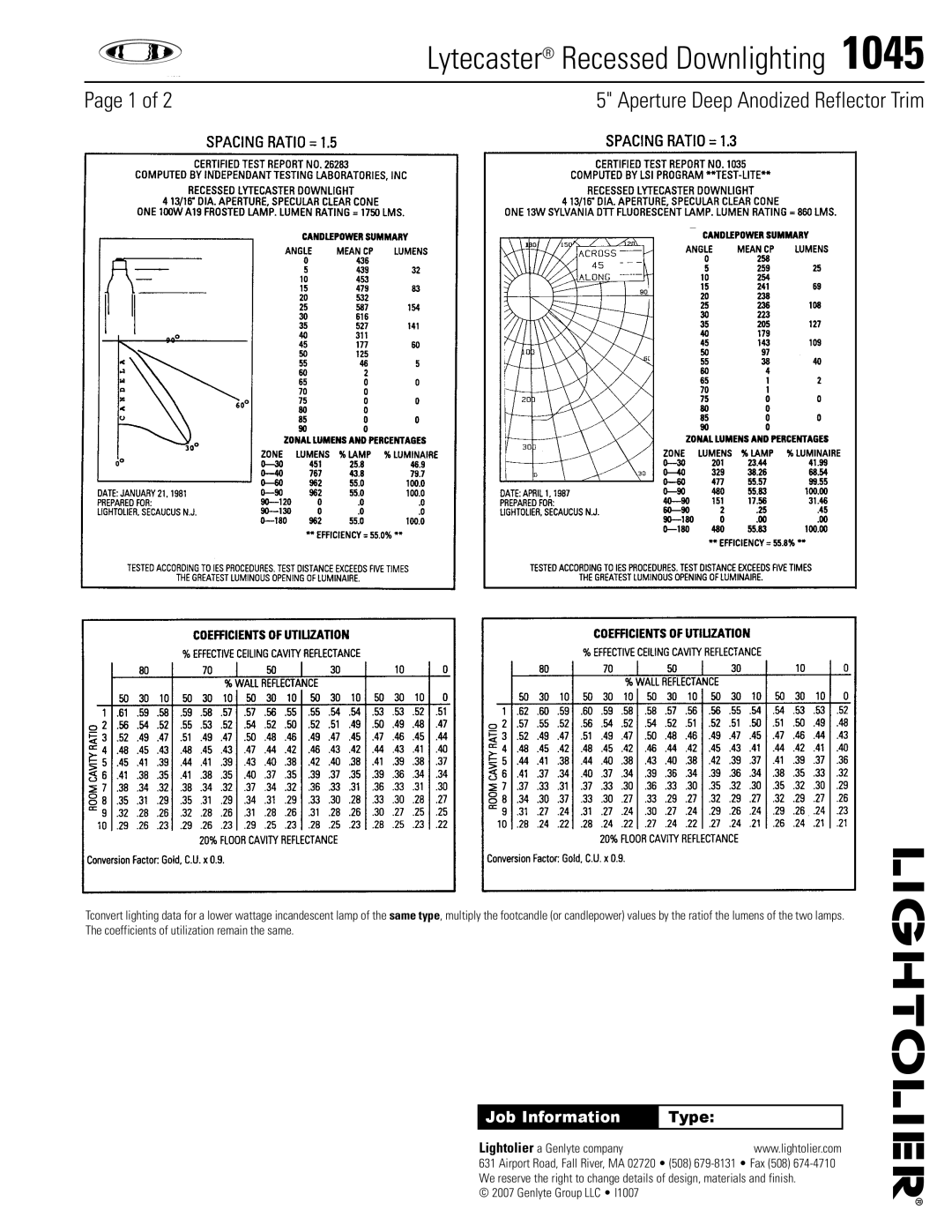

# 1013	Lytecaster® Recessed Downlighting  1045
Page 1 of 2	5" Aperture Deep Anodized Reflector Trim

1045/1003R

0™ Non-IC

Remodeler Ring

7 3/16"

7 1/2"

1045/1002P1 Series

Standard Incandescent

1045/1004IC/N 0™ Convertible

IC/Non-IC

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim	Frame-In Kit — See Individual Frame-In Kit Specification Sheets
		Incandescent					Fluorescent
1045	Frame-In Kit	Ceiling Type	Lamping	Height		Frame-In Kit	Ceiling Type	Lamping		Height
	1002P1	Non-IC	100W A19	6	3/4"	1001F13U Series	UniFrame™	(1)	Quad/Triple 13W (GX24q-1)	6	5/16"
Specular
	1003R	Non-IC Remodeler		6	3/4"		Non-IC
Gold
	1000P1	Non IC
						1001F18U Series	UniFrame™	(1)	Triple 18W (GX24q-2)	6	5/16"
1046							Non-IC
Specular
	1000IC	IC	60W A19	7	5/16"	1001F26U Series	UniFrame™	(1)	Triple 26W (GX24q-3)	6	5/16"
Clear	1000AICM	AirSeal® IC		7	5/16"		Non-IC
	1004ICX/N	AirSeal® IC		7	1/4"
1046CD						1004F13 Series	IC	(1)	Quad/Triple 13W (GX24q-1)	7	1/2"
Clear Diffuse						1004F18 Series	IC	(1)	Quad/Triple 18W (GX24q-2)	7	1/2"
	1004IC/N	AirSeal® IC	40W A19	7	1/2"	1004F26* Series	IC	(1)	Quad/Triple 26W (GX24q-2)	7	1/2"
	1004ICR	IC Remodeler		7	1/2"
						1001F13ICU/N	Performance IC	(1)	Quad/Triple 13W (GX24q-1)	7	1/4"
	1004IC/N	Non-IC	60W A19	7	1/2"	1001F18ICU/N	Performance IC	(1)	Triple 18W (GX24q-2)	7	1/4"
	1004ICR	Non-IC Remodeler		7	1/2"
						1001F26ICU/N	Performance IC	(1)	Triple 26W (GX24q-3)	7	1/4"
						1001FDICMX1/N	Performance IC	(1)Triple 26W (GX24q-3)		7	1/4"
							Advance Mark 10
							Dimming 120V
						1001FDICMX2/N	Performance IC	(1)	Triple 26W (GX24q-3)	7	1/4"
							Advance Mark 10
							Dimming 277V
						1910XFH1	Conversion Kit	(1)	Quad 13W (GX23-2)	6	3/4"

*Lightolier recommends the use of triple tube lamps.

Features

1.Reflector: Hydroformed aluminum, .040" thick (18 ga.); 38˚ shielding angle; specular clear diffuse, or gold finish; matte white trim flange.

2.Frame-In Kit: (1002P1 standard frame shown). Other frames listed above and shown on the right. See Frame-In Kit specification sheets for more details.

Options & Accessories

Extra Wide Flange Trim Ring: 1957 - 7" 0.D.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • I1007
