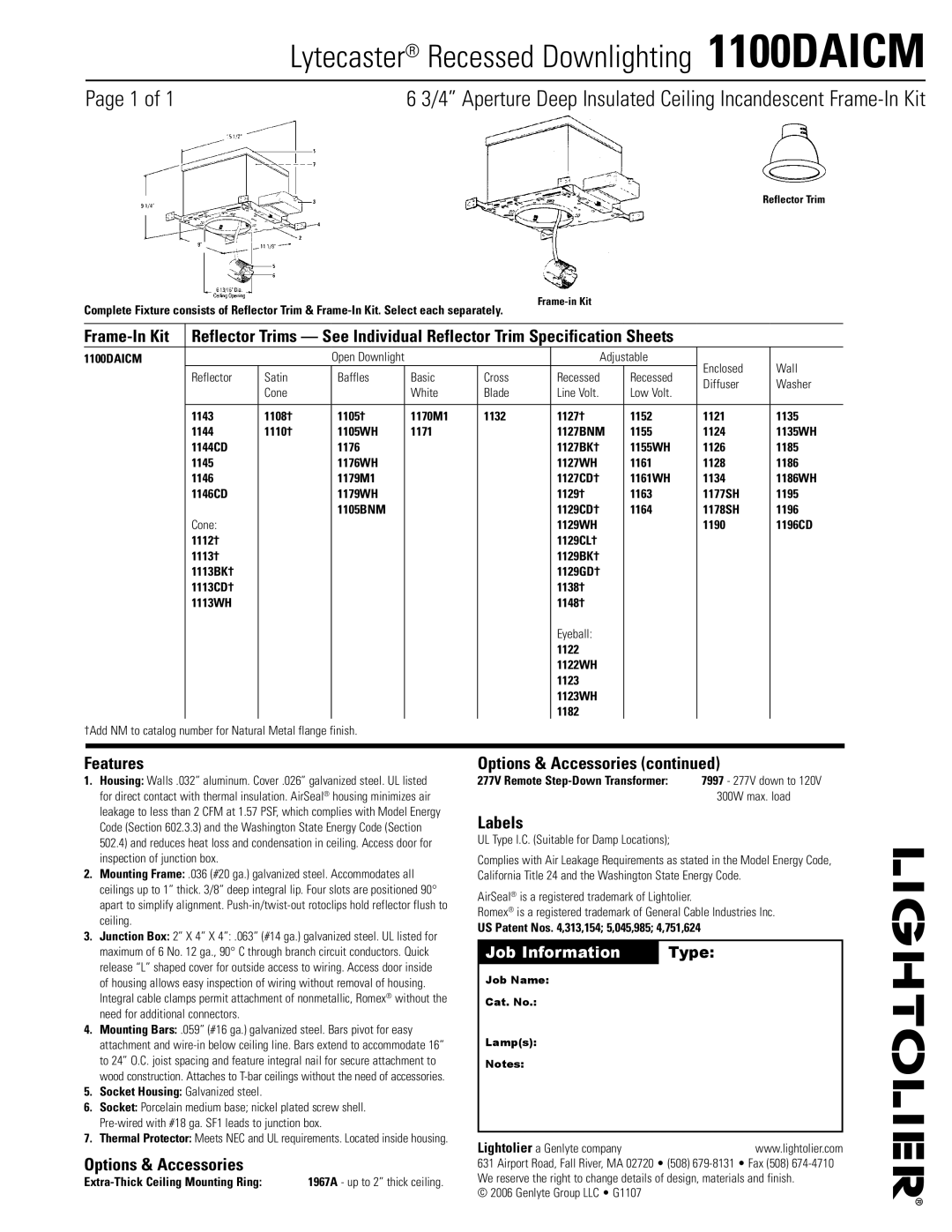

	Lytecaster® Recessed Downlighting  1100DAICM
Page  of 1	6 3/4” Aperture Deep Insulated Ceiling Incandescent Frame-In Kit

Complete Fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim

Frame-in Kit

Frame-In Kit	Reflector Trims — See Individual Reflector Trim Specification Sheets
1100DAICM			Open Downlight			Adjustable		Enclosed	Wall
	Reflector	Satin	Baffles	Basic	Cross	Recessed	Recessed
								Diffuser	Washer
		Cone		White	Blade	Line Volt.	Low Volt.
	1143	1108†	1105†	1170M1	1132	1127†	1152	1121	1135
	1144	1110†	1105WH	1171		1127BNM	1155	1124	1135WH
	1144CD		1176			1127BK†	1155WH	1126	1185
	1145		1176WH			1127WH	1161	1128	1186
	1146		1179M1			1127CD†	1161WH	1134	1186WH
	1146CD		1179WH			1129†	1163	1177SH	1195
			1105BNM			1129CD†	1164	1178SH	1196
	Cone:					1129WH		1190	1196CD
	1112†					1129CL†
	1113†					1129BK†
	1113BK†					1129GD†
	1113CD†					1138†
	1113WH					1148†

Eyeball:

1122

1122WH

1123

1123WH

1182

†Add NM to catalog number for Natural Metal flange finish.

Features

1.Housing: Walls .032” aluminum. Cover .026” galvanized steel. UL listed for direct contact with thermal insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57 PSF, which complies with Model Energy Code (Section 602.3.3) and the Washington State Energy Code (Section 502.4) and reduces heat loss and condensation in ceiling. Access door for inspection of junction box.

2.Mounting Frame: .036 (#20 ga.) galvanized steel. Accommodates all ceilings up to 1” thick. 3/8” deep integral lip. Four slots are positioned 90° apart to simplify alignment. Push-in/twist-out rotoclips hold reflector flush to ceiling.

3.Junction Box: 2” X 4” X 4”: .063” (#14 ga.) galvanized steel. UL listed for maximum of 6 No. 12 ga., 90° C through branch circuit conductors. Quick release “L” shaped cover for outside access to wiring. Access door inside of housing allows easy inspection of wiring without removal of housing. Integral cable clamps permit attachment of nonmetallic, Romex® without the need for additional connectors.

4.Mounting Bars: .059” (#16 ga.) galvanized steel. Bars pivot for easy attachment and wire-in below ceiling line. Bars extend to accommodate 16” to 24” O.C. joist spacing and feature integral nail for secure attachment to wood construction. Attaches to T-bar ceilings without the need of accessories.

5.Socket Housing: Galvanized steel.

6.Socket: Porcelain medium base; nickel plated screw shell. Pre-wired with #18 ga. SF1 leads to junction box.

7.Thermal Protector: Meets NEC and UL requirements. Located inside housing.

Options & Accessories

Extra-Thick Ceiling Mounting Ring: 1967A - up to 2” thick ceiling.

Options & Accessories (continued)

277V Remote Step-Down Transformer:	7997 - 277V down to 120V
	300W max. load

Labels

UL Type I.C. (Suitable for Damp Locations);

Complies with Air Leakage Requirements as stated in the Model Energy Code, California Title 24 and the Washington State Energy Code.

AirSeal® is a registered trademark of Lightolier.

Romex® is a registered trademark of General Cable Industries Inc.

US Patent Nos. 4,313,154; 5,045,985; 4,751,624

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
