Lytecaster® Recessed Downlighting  1100FTUESEM

Page  of 1

6 3/4" Aperture 1 Light, 120V 26/32W Triple Tube Fluorescent Frame-In Kit

11 3/4"

7

1 1/8"

11 5/16"



15 3/16"

Complete Fixture consists of Reflector Trim & Frame-In Kit.

6 13/16" Dia. Ceiling Opening

1



5



4

9"

2

11 5/16"



6



13" MIN

3

27" MAX



Note: Ballast is 120V only

Frame-In Kit

1100FTUESEM

Reflector Trims — See Individual Reflector Trim Specification Sheets

Voltage

Lamp





Open Downlight





Enclosed

Wall





Satin



Basic

Cross





Reflector

Cone

Baffles

Diffusers

Washer





Cone

White

Blade















120V

26W

1143

1112

1108

1105

1171

1132

1121

1135



and

1144

1112NM

1108NM

1105WH

1107M1



1124

1135WH



32W

1144CD

1113

1110

1105BNM





1126

1186



Triple

1145

1113bk

1110NM

1105NM





1128

1186WH



Tube

1146

1113CD



1176





1134

1195





1146CD

1113WH



1176WH





1177SH

1196







1113NM



1179M1





1178SH

1196CD







1113CDNM



1179WH





1190









1113BKNM













Features

1.Mounting Frame: 0.036" (#20 ga.) galvanized steel. Accommodates all ceilings up to 1" thick; including existing or inaccessible areas. Breakout section and anchor nails for existing ceilings. Push-in/twist-out rotoclips hold reflector flush to ceiling.

2.Junction Box: 0.063" (#14 ga.) 4" x 3 1/2" x 2" galvanized steel. U.L. listed for maximum of 8 No. 12 ga., 75°C through branch circuit conductors. Integral cable clamps permit attachment of nonmetallic Romex® or Armored cable without the need for separate connectors.

3.Mounting Bars: 0.059" (#16 ga.) galvanized steel. 13" long bars extend to 27", rotatable and lockable, with integral T-bar tabs. Attaches to wood joist or T-bar ceilings without need of accessories.

4.Socket Housing: Steel precisely attached to reflector by spring clip.

5.Socket: Four-pin base, molded thermoplastic. Prewired with No. 18 AWM leads to junction box.

6.Ballast: Electronic 120V, end of lamp life protected, FCC class “B” consumer limits, class “A” sound rating. Energy Star® qualified. Insulation must be kept 3" away from fixture sides and wiring compartment and must not be placed above fixture in a manner which will entrap heat.

7.Emergency Battery: 90 minute battery backup, complete with an LED charging indicator light and integrated test switch.

Electrical



26W



32W

Input Volts:

120V



20V

Input Watts:

29



36

Amps:

.24

0.31

Minimum starting temperature is 0°F.

Options & Accessories

Mounting Bars:

1964

- 20" set of (2)

T-Bar Anchor Clips:

1956

- set of (4) for use with above bars

Concealed Spline Ceiling Kit:

1965

- set of (4), 1 1/2” to 2 1/2” Mtg. Ht.

Plaster Ceiling Ring:

1960

- 7/8" depth for wet





plaster ceilings.

Extra-Thick Ceiling Mounting Ring: 1967A - up to 2" thick ceilings.

Labels

UL (Suitable for Damp Locations), I.B.E.W.

Romex® is a registered trademark of General Cable Industries Inc.

US Patent No's.: 5,045,985

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • C0906

Page 1
Image 1

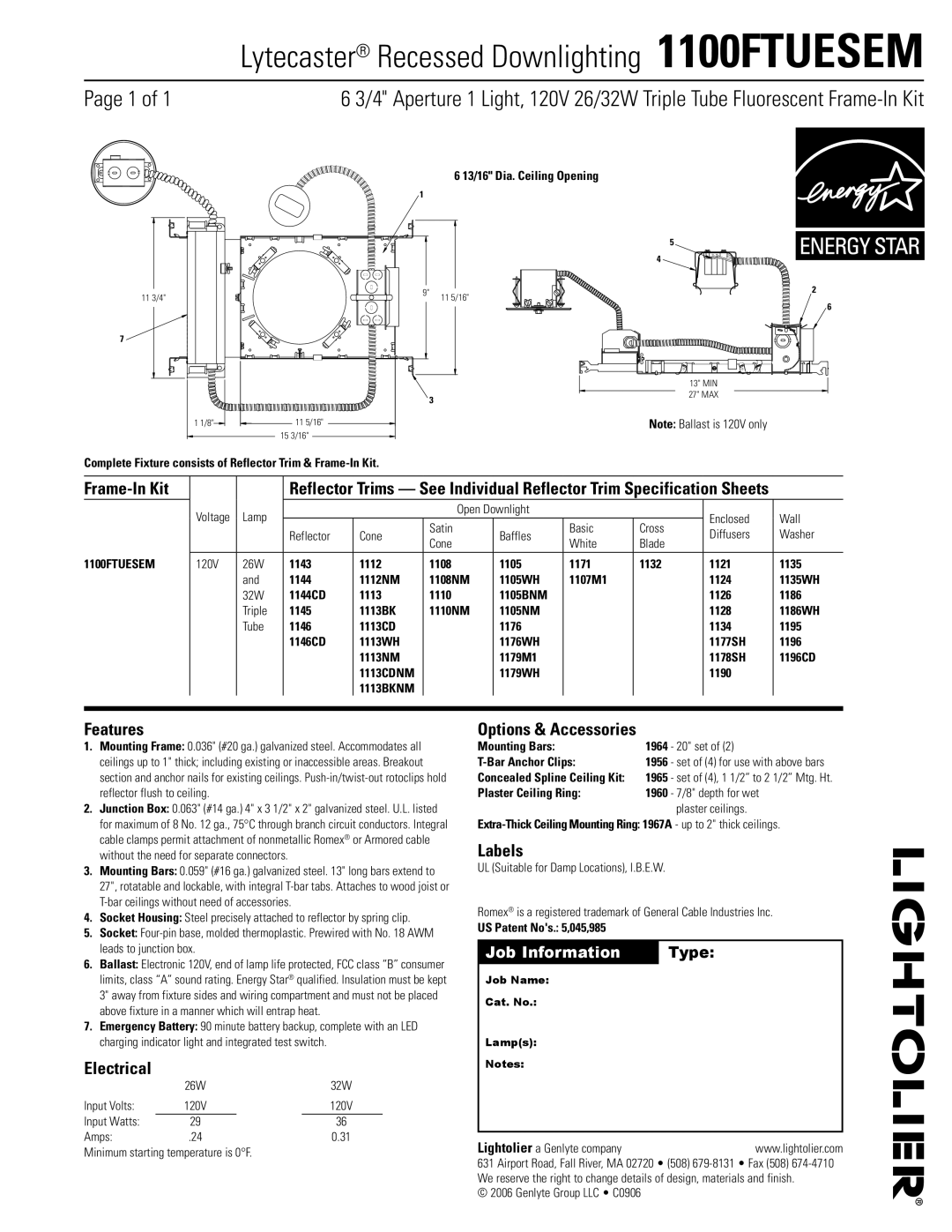

Lightolier specifications Lytecaster Recessed Downlighting 1100FTUESEM

1100FTUESEM specifications
