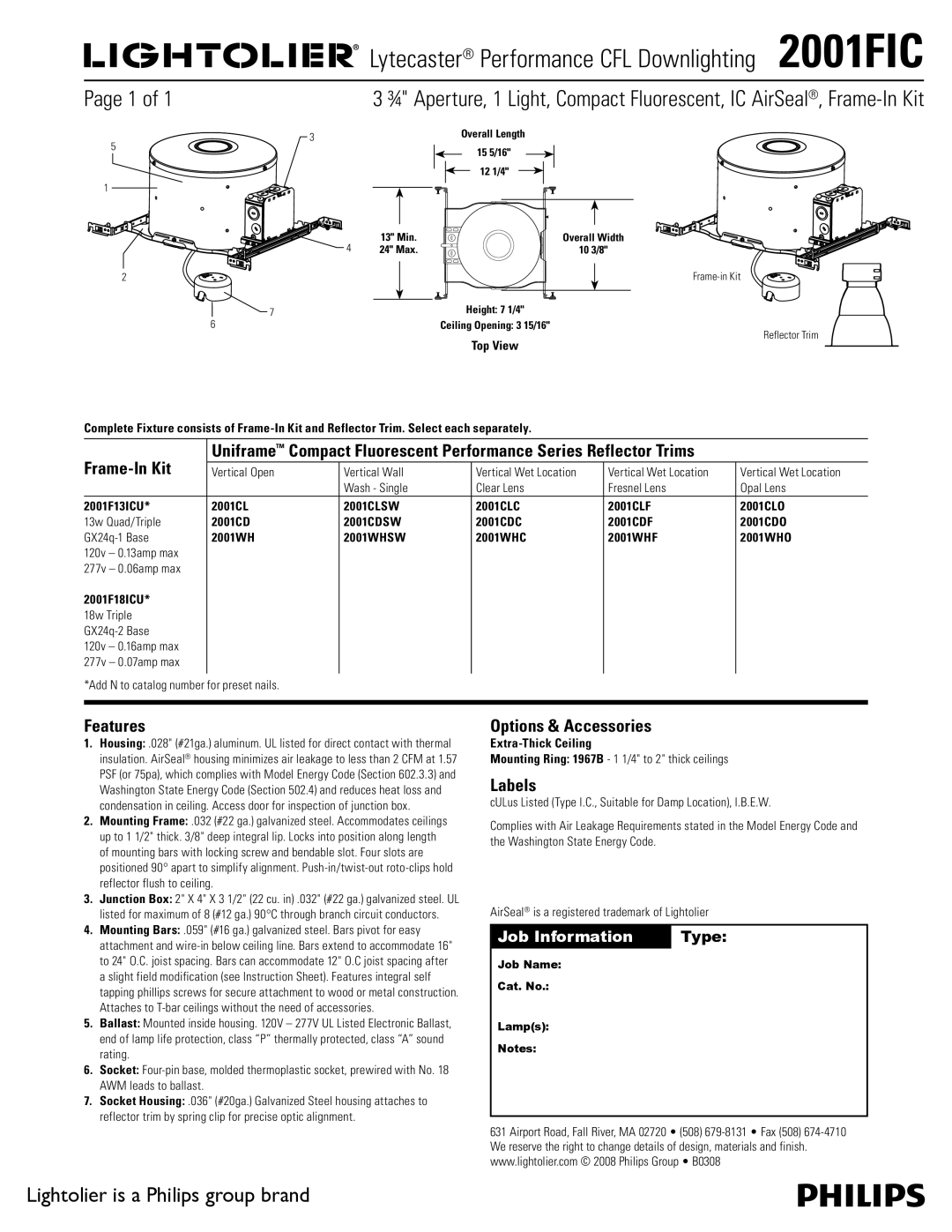

Lightolier 2001FIC instruction sheet Page 1 of, Lightolier is a Philips group brand, Frame-InKit

	Lytecaster® Performance CFL Downlighting  2001FIC
Page 1 of 1	3 ¾" Aperture, 1 Light, Compact Fluorescent, IC AirSeal®, Frame-In Kit

5

1

3

Overall Length 15 5/16"

12 1/4"

4	13" Min.
	24" Max.

2

7 6

Overall Width

10 3/8"

Frame-in Kit

Height: 7 1/4"

Ceiling Opening: 3 15/16"

Top View

Reflector Trim

Complete Fixture consists of Frame-In Kit and Reflector Trim. Select each separately.

Frame-In Kit	Uniframe™ Compact Fluorescent Performance Series Reflector Trims
	Vertical Open	Vertical Wall	Vertical Wet Location	Vertical Wet Location	Vertical Wet Location
		Wash - Single	Clear Lens	Fresnel Lens	Opal Lens
2001F13ICU*	2001CL	2001CLSW	2001CLC	2001CLF	2001CLO
13w Quad/Triple	2001CD	2001CDSW	2001CDC	2001CDF	2001CDO
GX24q-1 Base	2001WH	2001WHSW	2001WHC	2001WHF	2001WHO
120v – 0.13amp max
277v – 0.06amp max

2001F18ICU* 18w Triple GX24q-2 Base

120v – 0.16amp max

277v – 0.07amp max

*Add N to catalog number for preset nails.

Features

1.Housing: .028" (#21ga.) aluminum. UL listed for direct contact with thermal insulation. AirSeal® housing minimizes air leakage to less than 2 CFM at 1.57 PSF (or 75pa), which complies with Model Energy Code (Section 602.3.3) and Washington State Energy Code (Section 502.4) and reduces heat loss and condensation in ceiling. Access door for inspection of junction box.

2.Mounting Frame: .032 (#22 ga.) galvanized steel. Accommodates ceilings up to 1 1/2" thick. 3/8" deep integral lip. Locks into position along length of mounting bars with locking screw and bendable slot. Four slots are positioned 90° apart to simplify alignment. Push-in/twist-out roto-clips hold reflector flush to ceiling.

3.Junction Box: 2" X 4" X 3 1/2" (22 cu. in) .032" (#22 ga.) galvanized steel. UL listed for maximum of 8 (#12 ga.) 90°C through branch circuit conductors.

4.Mounting Bars: .059" (#16 ga.) galvanized steel. Bars pivot for easy attachment and wire-in below ceiling line. Bars extend to accommodate 16" to 24" O.C. joist spacing. Bars can accommodate 12" O.C joist spacing after a slight field modification (see Instruction Sheet). Features integral self tapping phillips screws for secure attachment to wood or metal construction. Attaches to T-bar ceilings without the need of accessories.

5.Ballast: Mounted inside housing. 120V – 277V UL Listed Electronic Ballast, end of lamp life protection, class “P” thermally protected, class “A” sound rating.

6.Socket: Four-pin base, molded thermoplastic socket, prewired with No. 18

AWM leads to ballast.

7.Socket Housing: .036" (#20ga.) Galvanized Steel housing attaches to reflector trim by spring clip for precise optic alignment.

Lightolier is a Philips group brand

Options & Accessories

Extra-Thick Ceiling

Mounting Ring: 1967B - 1 1/4" to 2" thick ceilings

Labels

cULus Listed (Type I.C., Suitable for Damp Location), I.B.E.W.

Complies with Air Leakage Requirements stated in the Model Energy Code and the Washington State Energy Code.

AirSeal® is a registered trademark of Lightolier

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • B0308
