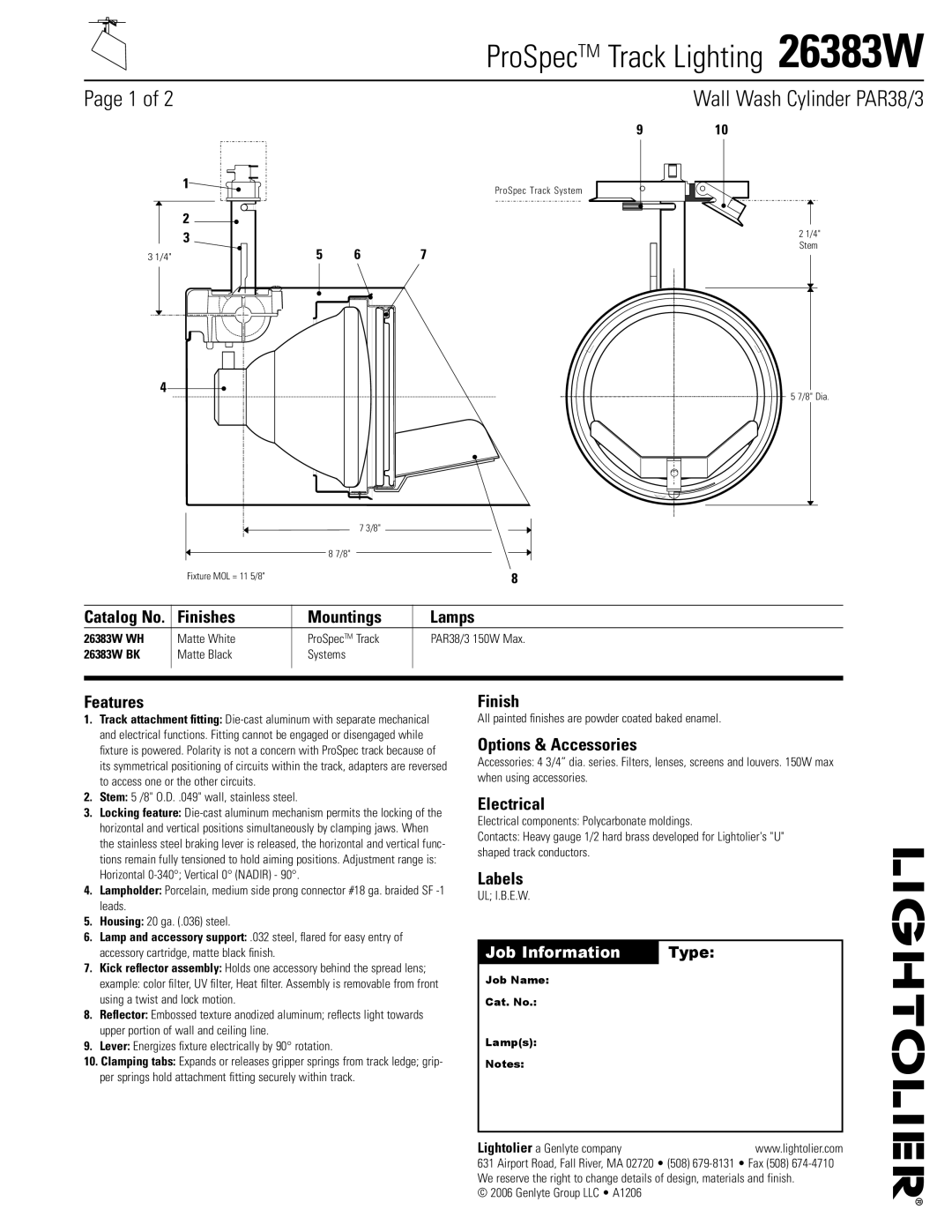

Lightolier 26383W manual Finishes, Mountings, Lamps, Features, Options & Accessories, Electrical

	ProSpecTM Track Lighting  26383W

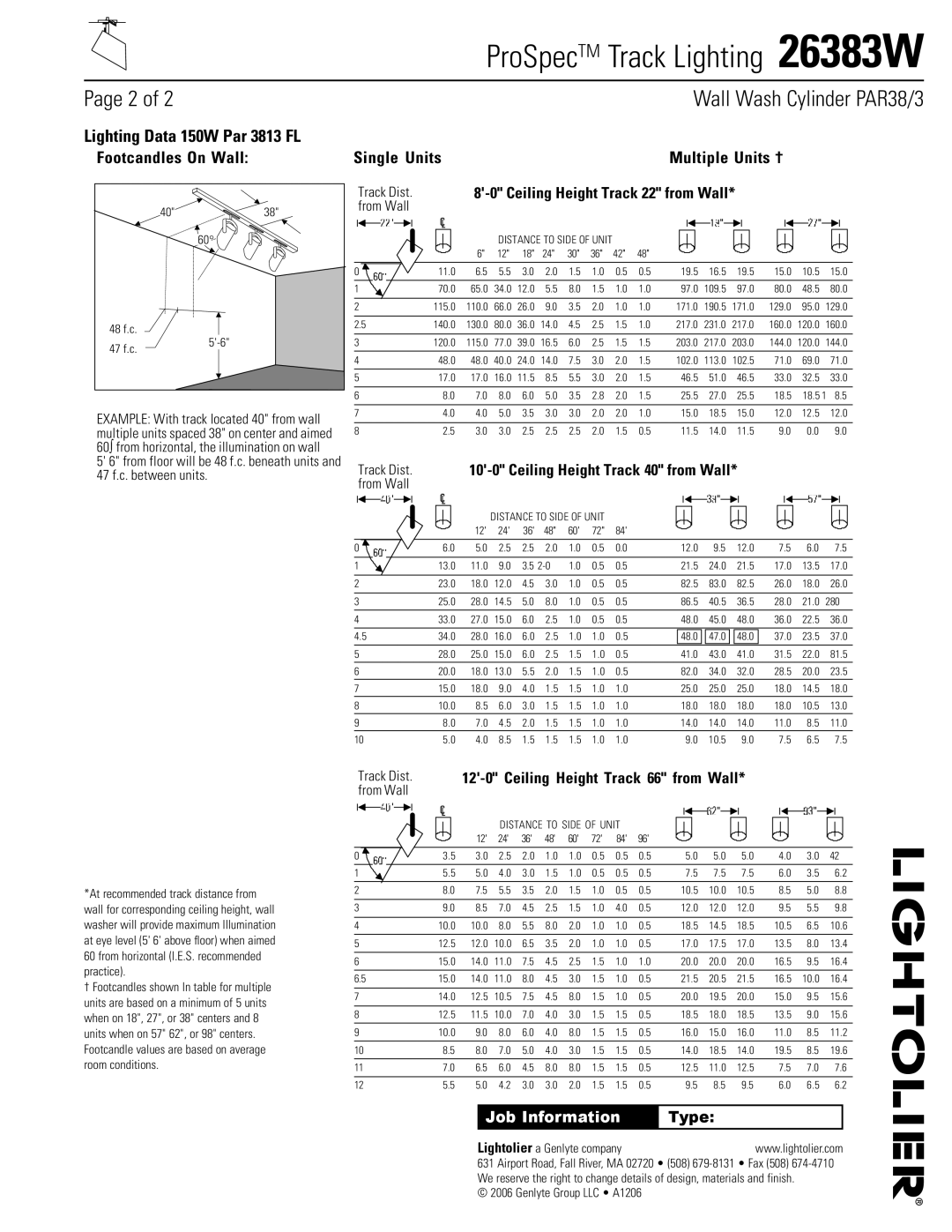

Page  of 2	Wall Wash Cylinder PAR38/3

	1		ProSpec Track System
	2
	3
3 /4"	5	6	7

9 10

2 /4" Stem

4

Fixture MOL =  5/8"

5 7/8" Dia.

7 3/8"

8 7/8"

8

Catalog No.	Finishes	Mountings	Lamps
26383W WH	Matte White	ProSpecTM Track	PAR38/3 150W Max.
26383W BK	Matte Black	Systems

Features

1.Track attachment fitting: Die-cast aluminum with separate mechanical and electrical functions. Fitting cannot be engaged or disengaged while fixture is powered. Polarity is not a concern with ProSpec track because of its symmetrical positioning of circuits within the track, adapters are reversed to access one or the other circuits.

2.Stem: 5 /8" O.D. .049" wall, stainless steel.

3.Locking feature: Die-cast aluminum mechanism permits the locking of the horizontal and vertical positions simultaneously by clamping jaws. When the stainless steel braking lever is released, the horizontal and vertical func- tions remain fully tensioned to hold aiming positions. Adjustment range is: Horizontal 0-340°; Vertical 0° (NADIR) - 90°.

4.Lampholder: Porcelain, medium side prong connector #18 ga. braided SF -1 leads.

5.Housing: 20 ga. (.036) steel.

6.Lamp and accessory support: .032 steel, flared for easy entry of accessory cartridge, matte black finish.

7.Kick reflector assembly: Holds one accessory behind the spread lens;

example: color filter, UV filter, Heat filter. Assembly is removable from front using a twist and lock motion.

8.Reflector: Embossed texture anodized aluminum; reflects light towards upper portion of wall and ceiling line.

9.Lever: Energizes fixture electrically by 90° rotation.

10.Clamping tabs: Expands or releases gripper springs from track ledge; grip- per springs hold attachment fitting securely within track.

Finish

All painted finishes are powder coated baked enamel.

Options & Accessories

Accessories: 4 3/4” dia. series. Filters, lenses, screens and louvers. 150W max when using accessories.

Electrical

Electrical components: Polycarbonate moldings.

Contacts: Heavy gauge 1/2 hard brass developed for Lightolier's "U" shaped track conductors.

Labels

UL; I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • A1206
