Lightolier specifications Lytecaster Recessed Downlighting304PX, Page 1 of, Job Information

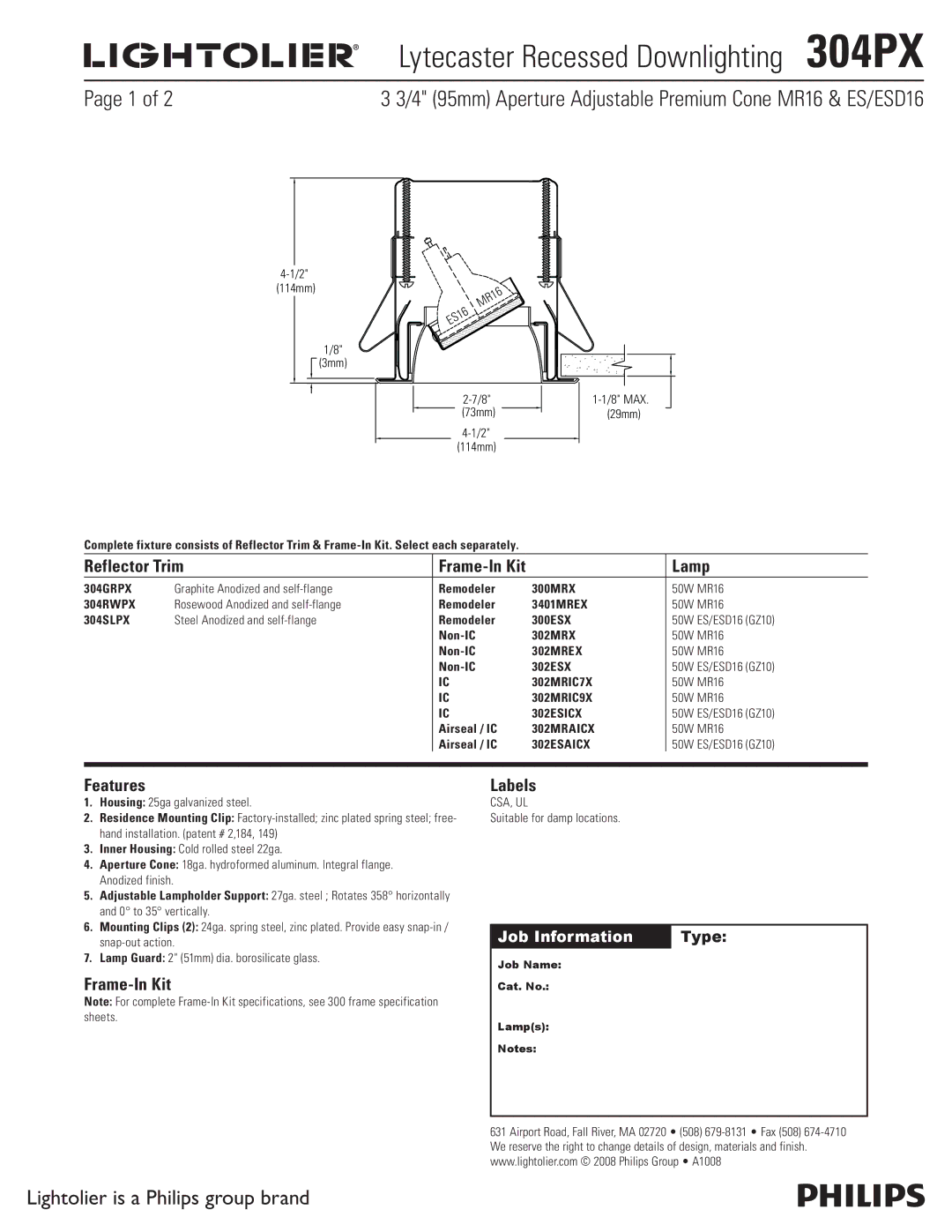

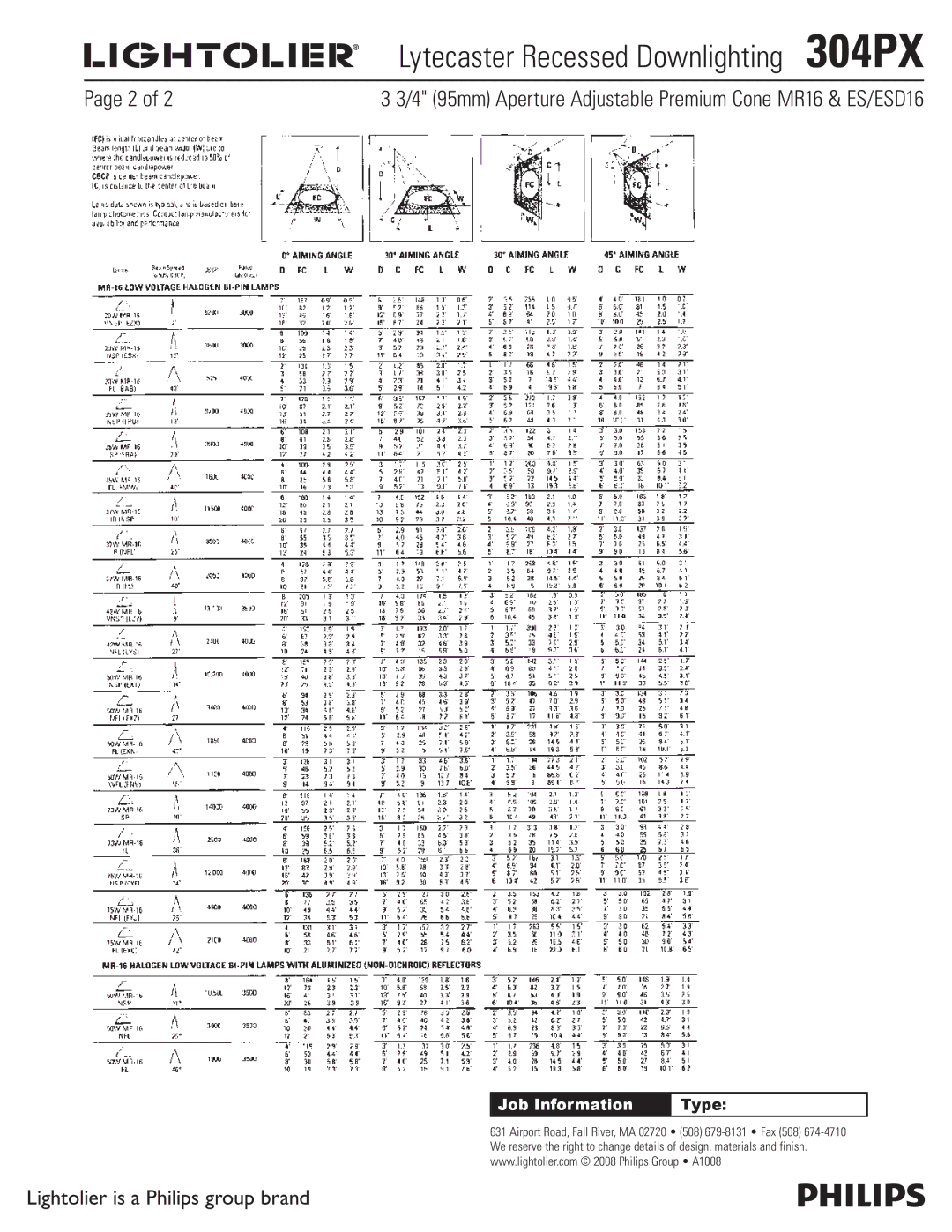

	Lytecaster Recessed Downlighting  304PX
Page 1 of 2	3 3/4" (95mm) Aperture Adjustable Premium Cone MR16 & ES/ESD16

4-1/2" (114mm)

1/8" (3mm)

MR16

ES16

2-7/8" (73mm)

4-1/2" (114mm)

1-1/8" MAX. (29mm)

Complete fixture consists of Reflector Trim & Frame-In Kit. Select each separately.

Reflector Trim		Frame-In Kit		Lamp
304GRPX	Graphite Anodized and self-flange	Remodeler	300MRX	50W	MR16
304RWPX	Rosewood Anodized and self-flange	Remodeler	3401MREX	50W	MR16
304SLPX	Steel Anodized and self-flange	Remodeler	300ESX	50W	ES/ESD16 (GZ10)
		Non-IC	302MRX	50W MR16
		Non-IC	302MREX	50W MR16
		Non-IC	302ESX	50W	ES/ESD16 (GZ10)
		IC	302MRIC7X	50W MR16
		IC	302MRIC9X	50W MR16
		IC	302ESICX	50W	ES/ESD16 (GZ10)
		Airseal / IC	302MRAICX	50W MR16
		Airseal / IC	302ESAICX	50W	ES/ESD16 (GZ10)

Features

1.Housing: 25ga galvanized steel.

2.Residence Mounting Clip: Factory-installed; zinc plated spring steel; free- hand installation. (patent # 2,184, 149)

3.Inner Housing: Cold rolled steel 22ga.

4.Aperture Cone: 18ga. hydroformed aluminum. Integral flange. Anodized finish.

5.Adjustable Lampholder Support: 27ga. steel ; Rotates 358° horizontally and 0° to 35° vertically.

6.Mounting Clips (2): 24ga. spring steel, zinc plated. Provide easy snap-in / snap-out action.

7.Lamp Guard: 2" (51mm) dia. borosilicate glass.

Frame-In Kit

Note: For complete Frame-In Kit specifications, see 300 frame specification sheets.

Labels

CSA, UL

Suitable for damp locations.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
