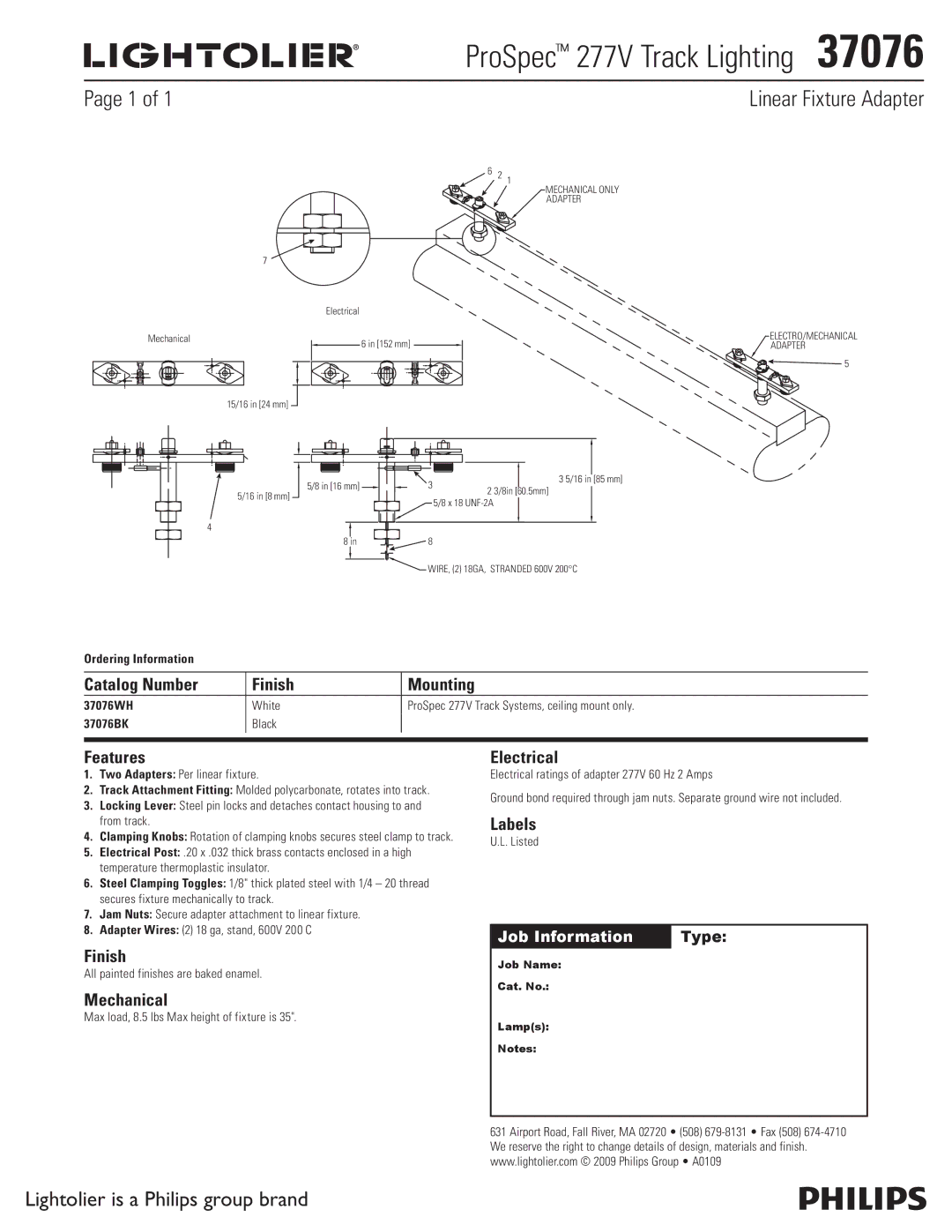

ProSpec277V Track Lighting  37076

Page 1 of 1









Linear Fixture Adapter







6

2

1





















MECHANICAL ONLY











ADAPTER



7











Electrical









Mechanical

6 in [152 mm]







ELECTRO/MECHANICAL









ADAPTER











5



15/16 in [24 mm]











5/8 in [16 mm]

3





3 5/16 in [85 mm]



2 3/8in [60.5mm]



5/16 in [8 mm]







5/8 x 18 UNF-2A

















4











8 in

8







WIRE, (2) 18GA, STRANDED 600V 200°C

Ordering Information

Catalog Number

Finish

Mounting

37076WH

White

ProSpec 277V Track Systems, ceiling mount only.

37076BK

Black









Features

1.Two Adapters: Per linear fixture.

2.Track Attachment Fitting: Molded polycarbonate, rotates into track.

3.Locking Lever: Steel pin locks and detaches contact housing to and from track.

4.Clamping Knobs: Rotation of clamping knobs secures steel clamp to track.

5.Electrical Post: .20 x .032 thick brass contacts enclosed in a high temperature thermoplastic insulator.

6.Steel Clamping Toggles: 1/8" thick plated steel with 1/4 – 20 thread secures fixture mechanically to track.

7.Jam Nuts: Secure adapter attachment to linear fixture.

8.Adapter Wires: (2) 18 ga, stand, 600V 200 C

Finish

All painted finishes are baked enamel.

Mechanical

Max load, 8.5 lbs Max height of fixture is 35".

Electrical

Electrical ratings of adapter 277V 60 Hz 2 Amps

Ground bond required through jam nuts. Separate ground wire not included.

Labels

U.L. Listed

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2009 Philips Group • A0109

Lightolier is a Philips group brand
