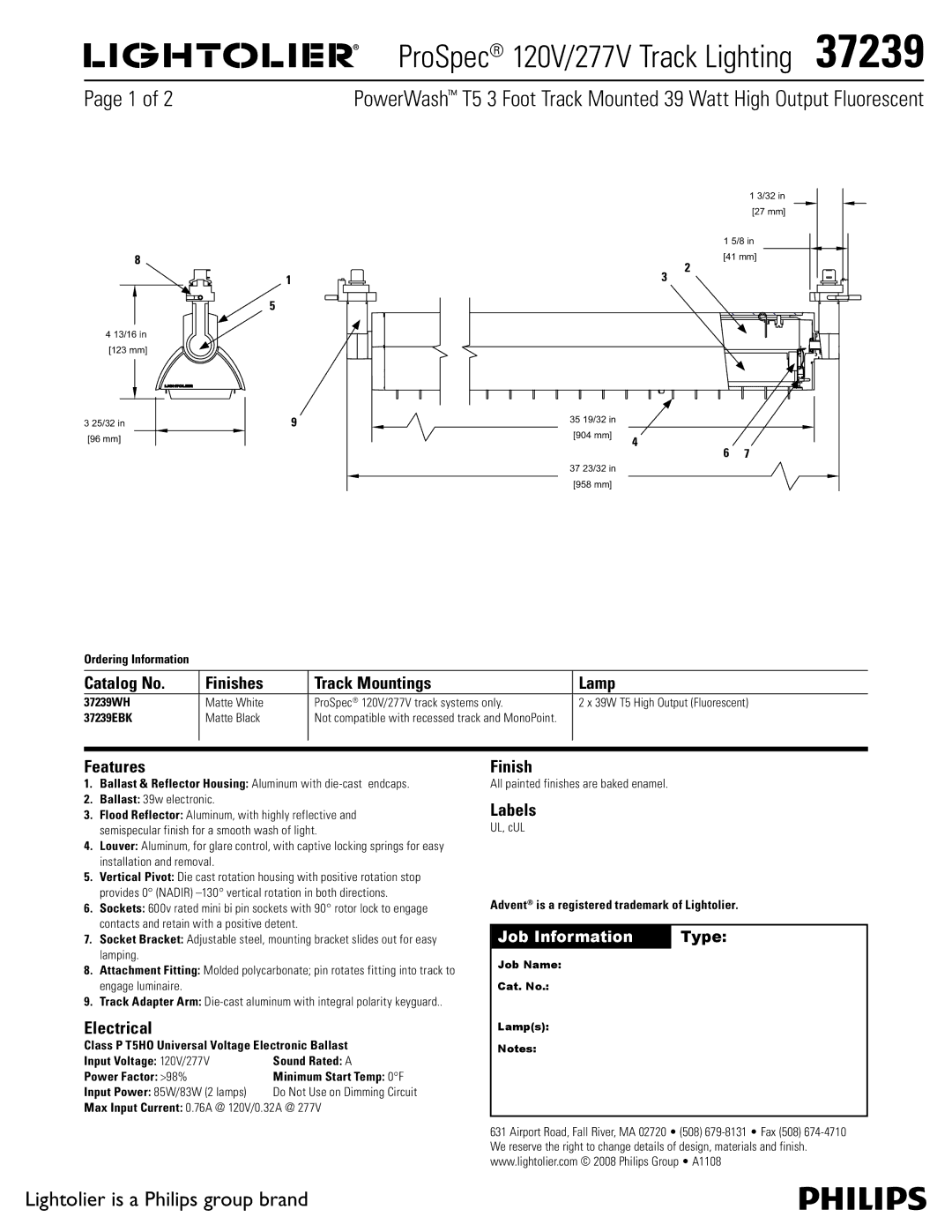

ProSpec® 120V/277V Track Lighting  37239































































































































































Page 1 of 2































PowerWashT5 3 Foot Track Mounted 39 Watt High Output Fluorescent

1 3/32 in

[27 mm]





1 5/8 in

8



[41 mm]

1

3

2



5

4 13/16 in

[123 mm]

3 25/32 in935 19/32 in

[96 mm]

[904 mm]



4

6 7

37 23/32 in

[958 mm]

Ordering Information

Catalog No.

Finishes

Track Mountings

Lamp

37239WH

Matte White

ProSpec® 120V/277V track systems only.

2 x 39W T5 High Output (Fluorescent)

37239EBK

Matte Black

Not compatible with recessed track and MonoPoint.



















Features

1.Ballast & Reflector Housing: Aluminum with die-cast endcaps.

2.Ballast: 39w electronic.

3.Flood Reflector: Aluminum, with highly reflective and semispecular finish for a smooth wash of light.

4.Louver: Aluminum, for glare control, with captive locking springs for easy installation and removal.

5.Vertical Pivot: Die cast rotation housing with positive rotation stop provides 0° (NADIR) –130° vertical rotation in both directions.

6.Sockets: 600v rated mini bi pin sockets with 90° rotor lock to engage contacts and retain with a positive detent.

7.Socket Bracket: Adjustable steel, mounting bracket slides out for easy lamping.

8.Attachment Fitting: Molded polycarbonate; pin rotates fitting into track to engage luminaire.

9.Track Adapter Arm: Die-cast aluminum with integral polarity keyguard..

Electrical

Class P T5HO Universal Voltage Electronic Ballast

Input Voltage: 120V/277V

Sound Rated: A

Power Factor: >98%

Minimum Start Temp: 0°F

Input Power: 85W/83W (2 lamps)

Do Not Use on Dimming Circuit

Max Input Current: 0.76A @ 120V/0.32A @ 277V

Finish

All painted finishes are baked enamel.

Labels

UL, cUL

Advent® is a registered trademark of Lightolier.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • A1108

Lightolier is a Philips group brand
