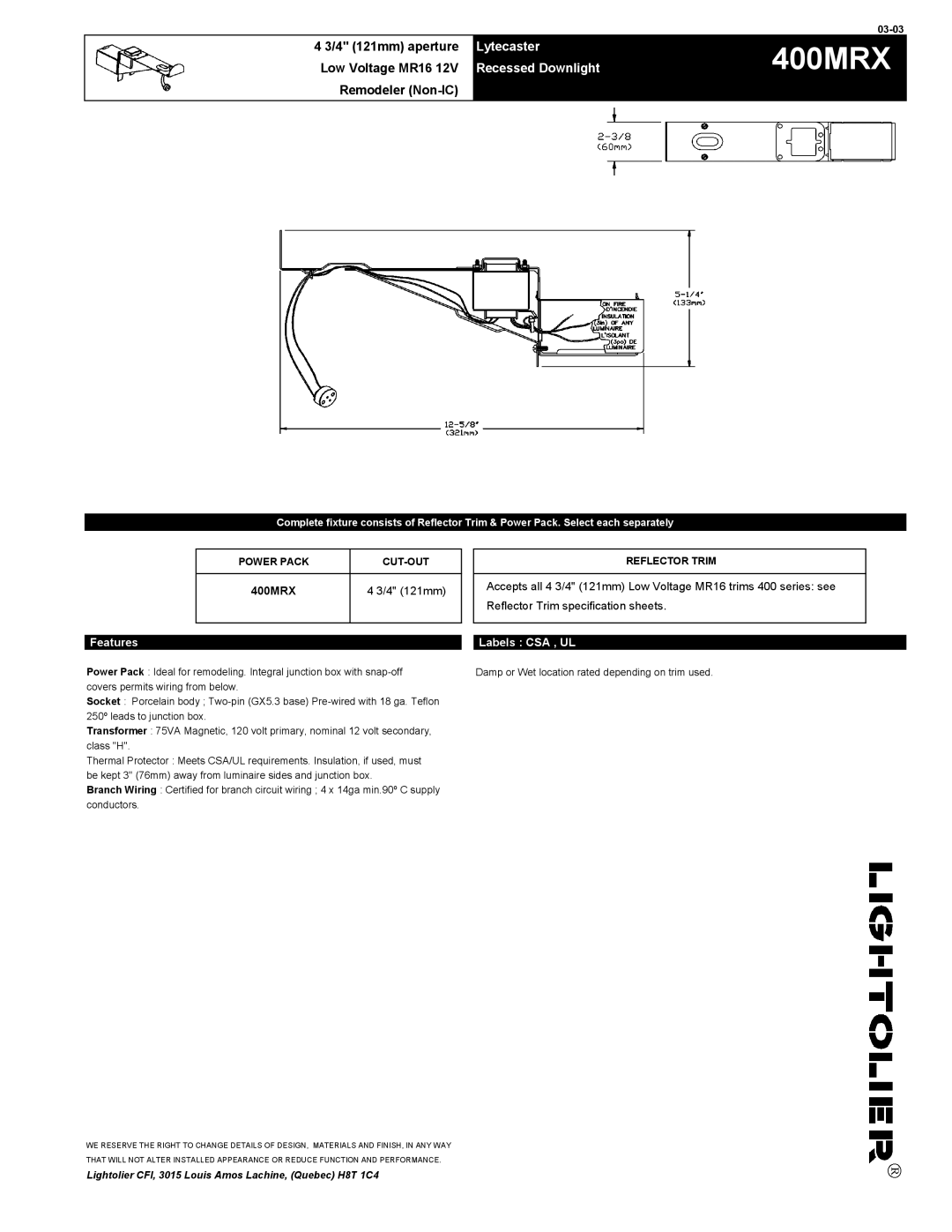

Lightolier 400MRX specifications 4 3/4 121mm aperture, Lytecaster, Low Voltage MR16, Features

		03-03
4 3/4" (121mm) aperture	Lytecaster	400MRX
Low Voltage MR16 12V	Recessed Downlight
Remodeler (Non-IC)

Complete fixture consists of Reflector Trim & Power Pack. Select each separately

POWER PACK	CUT-OUT
400MRX	4 3/4" (121mm)

Features

Power Pack : Ideal for remodeling. Integral junction box with snap-off covers permits wiring from below.

Socket : Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon 250º leads to junction box.

Transformer : 75VA Magnetic, 120 volt primary, nominal 12 volt secondary, class "H".

Thermal Protector : Meets CSA/UL requirements. Insulation, if used, must be kept 3" (76mm) away from luminaire sides and junction box.

Branch Wiring : Certified for branch circuit wiring ; 4 x 14ga min.90º C supply conductors.

REFLECTOR TRIM

Accepts all 4 3/4" (121mm) Low Voltage MR16 trims 400 series: see Reflector Trim specification sheets.

Labels : CSA , UL

Damp or Wet location rated depending on trim used.

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.

Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
