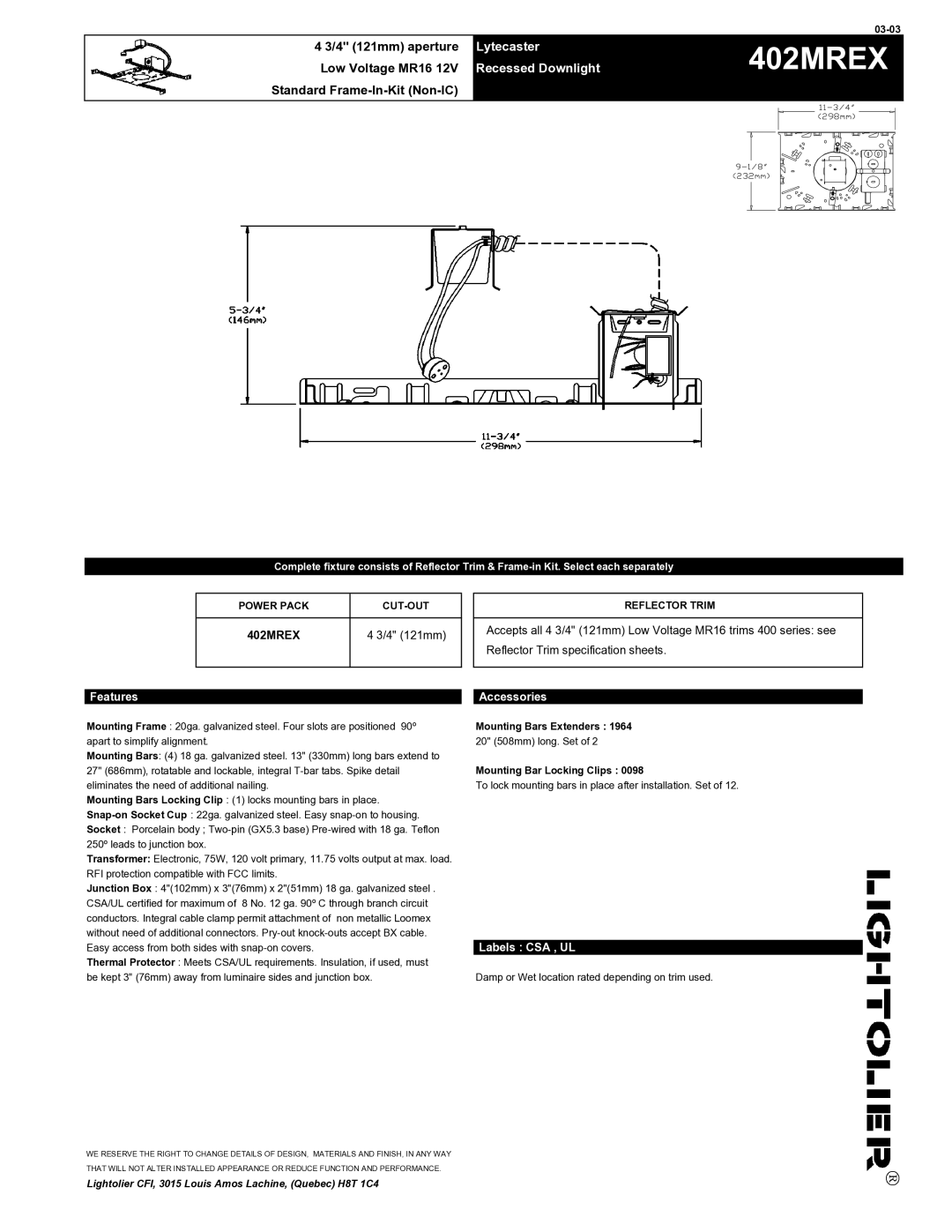

4 3/4" (121mm) aperture | Lytecaster |
| 402MREX |
|
| ||
Low Voltage MR16 12V | Recessed Downlight |
|
|
| |||
Standard |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Complete fixture consists of Reflector Trim &
POWER PACK | |
|
|
402MREX | 4 3/4" (121mm) |
|
|
REFLECTOR TRIM
Accepts all 4 3/4" (121mm) Low Voltage MR16 trims 400 series: see Reflector Trim specification sheets.
Features |
| Accessories |
Mounting Frame : 20ga. galvanized steel. Four slots are positioned 90º |
| Mounting Bars Extenders : 1964 |
apart to simplify alignment. |
| 20" (508mm) long. Set of 2 |
Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend to |
|
|
27" (686mm), rotatable and lockable, integral |
| Mounting Bar Locking Clips : 0098 |
eliminates the need of additional nailing. |
| To lock mounting bars in place after installation. Set of 12. |
Mounting Bars Locking Clip : (1) locks mounting bars in place. |
|
|
|
| |
Socket : Porcelain body ; |
|
|
250º leads to junction box. |
|
|
Transformer: Electronic, 75W, 120 volt primary, 11.75 volts output at max. load. |
|
|
RFI protection compatible with FCC limits. |
|
|
Junction Box : 4"(102mm) x 3"(76mm) x 2"(51mm) 18 ga. galvanized steel . |
|
|
CSA/UL certified for maximum of 8 No. 12 ga. 90º C through branch circuit |
|
|
conductors. Integral cable clamp permit attachment of non metallic Loomex |
|
|
without need of additional connectors. |
|
|
Easy access from both sides with |
| Labels : CSA , UL |
Thermal Protector : Meets CSA/UL requirements. Insulation, if used, must |
|
|
be kept 3" (76mm) away from luminaire sides and junction box. |
| Damp or Wet location rated depending on trim used. |
WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY
THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.
Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
