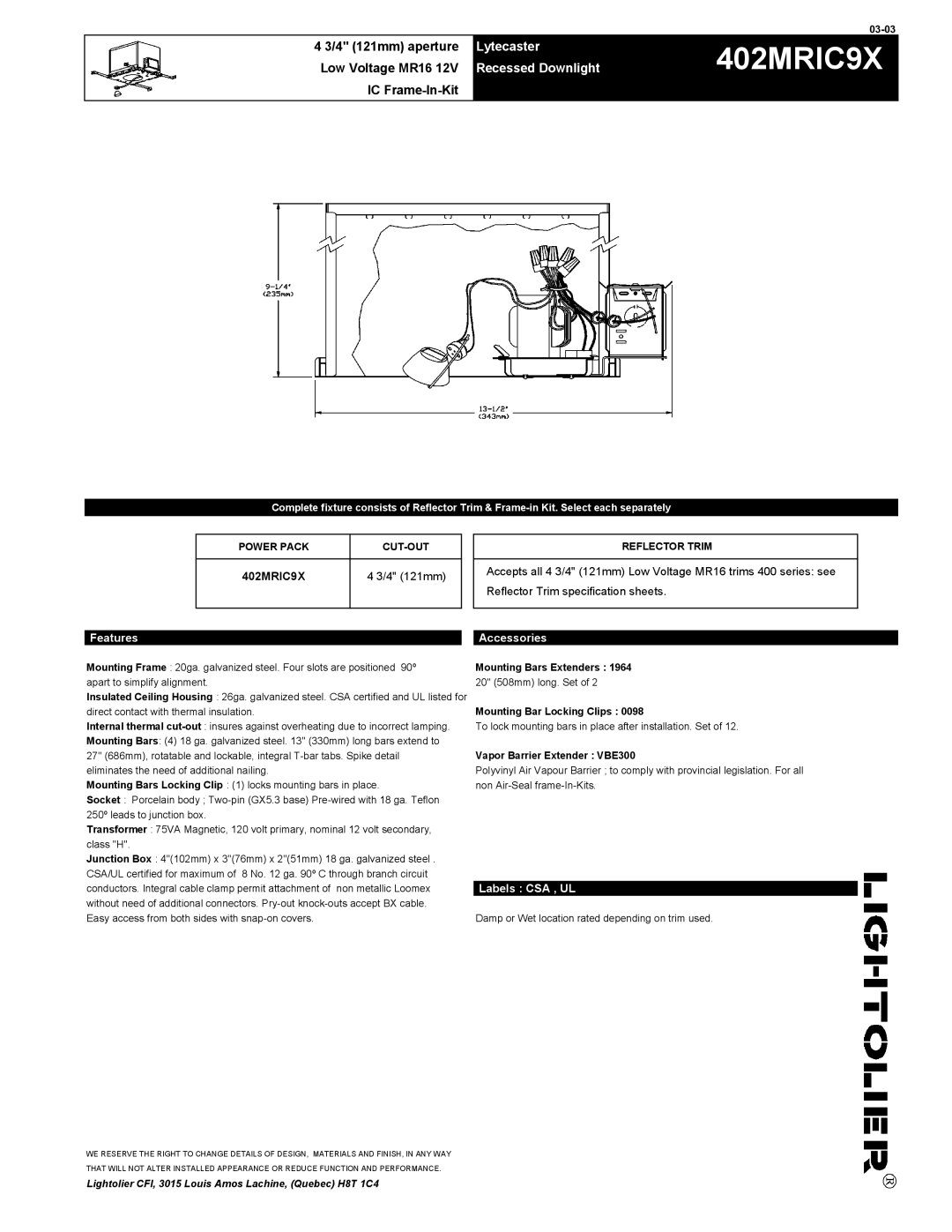

03-03

4 3/4" (121mm) aperture

Lytecaster

402MRIC9X



Low Voltage MR16 12V

Recessed Downlight



IC Frame-In-Kit







Complete fixture consists of Reflector Trim & Frame-in Kit. Select each separately

POWER PACK

CUT-OUT





402MRIC9X

4 3/4" (121mm)





REFLECTOR TRIM

Accepts all 4 3/4" (121mm) Low Voltage MR16 trims 400 series: see Reflector Trim specification sheets.

Features

Mounting Frame : 20ga. galvanized steel. Four slots are positioned 90º apart to simplify alignment.

Insulated Ceiling Housing : 26ga. galvanized steel. CSA certified and UL listed for direct contact with thermal insulation.

Internal thermal cut-out : insures against overheating due to incorrect lamping.

Mounting Bars: (4) 18 ga. galvanized steel. 13" (330mm) long bars extend to 27" (686mm), rotatable and lockable, integral T-bar tabs. Spike detail eliminates the need of additional nailing.

Mounting Bars Locking Clip : (1) locks mounting bars in place.

Socket : Porcelain body ; Two-pin (GX5.3 base) Pre-wired with 18 ga. Teflon 250º leads to junction box.

Transformer : 75VA Magnetic, 120 volt primary, nominal 12 volt secondary, class "H".

Junction Box : 4"(102mm) x 3"(76mm) x 2"(51mm) 18 ga. galvanized steel . CSA/UL certified for maximum of 8 No. 12 ga. 90º C through branch circuit conductors. Integral cable clamp permit attachment of non metallic Loomex without need of additional connectors. Pry-out knock-outs accept BX cable. Easy access from both sides with snap-on covers.

Accessories

Mounting Bars Extenders : 1964 20" (508mm) long. Set of 2

Mounting Bar Locking Clips : 0098

To lock mounting bars in place after installation. Set of 12.

Vapor Barrier Extender : VBE300

Polyvinyl Air Vapour Barrier ; to comply with provincial legislation. For all non Air-Seal frame-In-Kits.

Labels : CSA , UL

Damp or Wet location rated depending on trim used.

WE RESERVE THE RIGHT TO CHANGE DETAILS OF DESIGN, MATERIALS AND FINISH, IN ANY WAY THAT WILL NOT ALTER INSTALLED APPEARANCE OR REDUCE FUNCTION AND PERFORMANCE.

Lightolier CFI, 3015 Louis Amos Lachine, (Quebec) H8T 1C4
