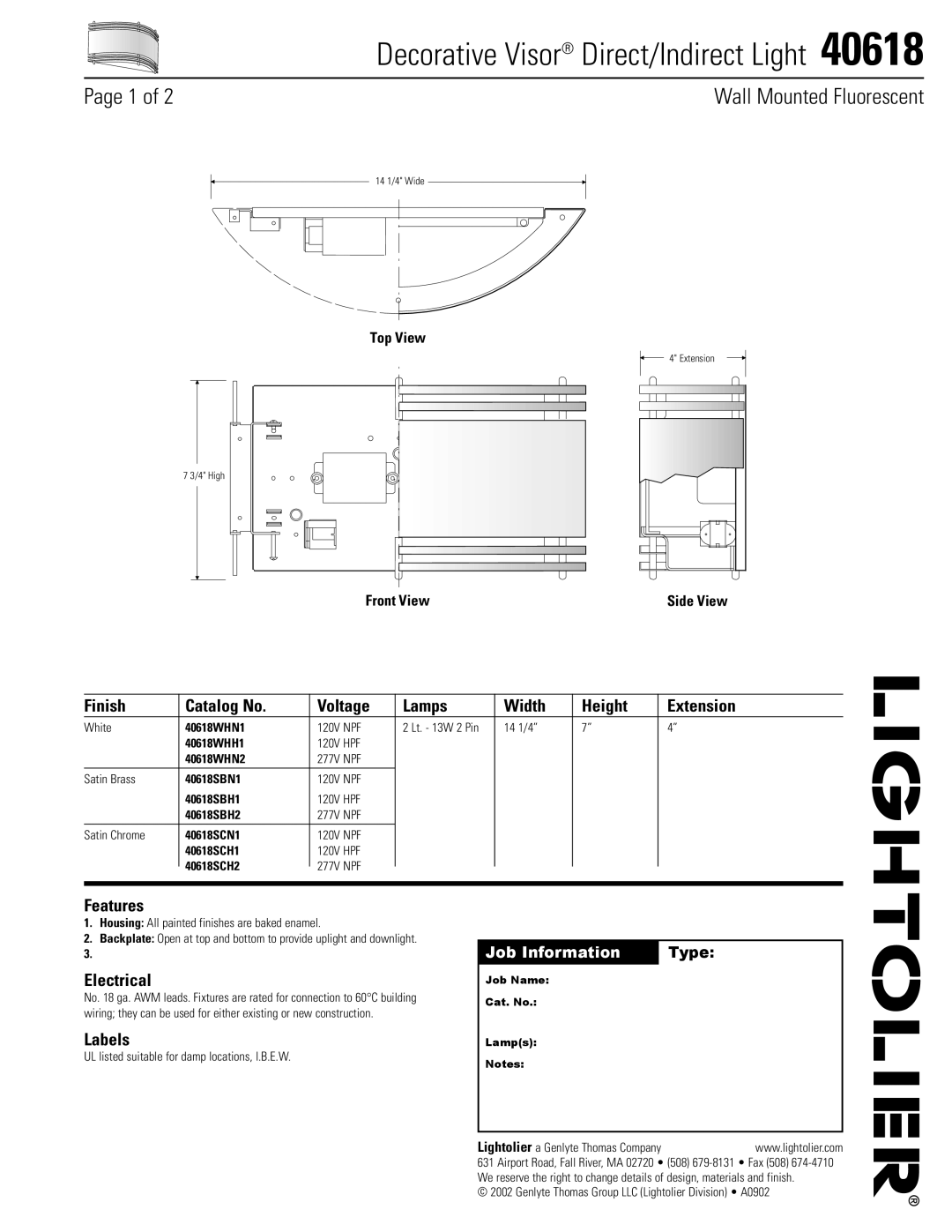

| Decorative Visor® Direct/Indirect Light 40618 |
Page 1 of 2 | Wall Mounted Fluorescent |
14 1/4" Wide
Top View
4" Extension
7 3/4" High
Front View | Side View |
Finish | Catalog No. |
| Voltage | Lamps | Width | Height | Extension |
White | 40618WHN1 |
| 120V NPF | 2 Lt. - 13W 2 Pin | 14 1/4” | 7” | 4” |
| 40618WHH1 |
| 120V HPF |
|
|
|
|
| 40618WHN2 |
| 277V NPF |
|
|
|
|
Satin Brass | 40618SBN1 |
| 120V NPF |
|
|
|
|
| 40618SBH1 |
| 120V HPF |
|
|
|
|
| 40618SBH2 |
| 277V NPF |
|
|
|
|
Satin Chrome | 40618SCN1 |
| 120V NPF |
|
|
|
|
| 40618SCH1 |
| 120V HPF |
|
|
|
|
| 40618SCH2 |
| 277V NPF |
|
|
|
|
|
|
|
|
|
| ||
|
|
|
|
|
|
|
|
Features
1.Housing: All painted finishes are baked enamel.
2.Backplate: Open at top and bottom to provide uplight and downlight.
Electrical
No. 18 ga. AWM leads. Fixtures are rated for connection to 60°C building wiring; they can be used for either existing or new construction.
Labels
UL listed suitable for damp locations, I.B.E.W.
Job Information | Type: |
Job Name:
Cat. No.:
Lamp(s):
Notes:
Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508)
© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
