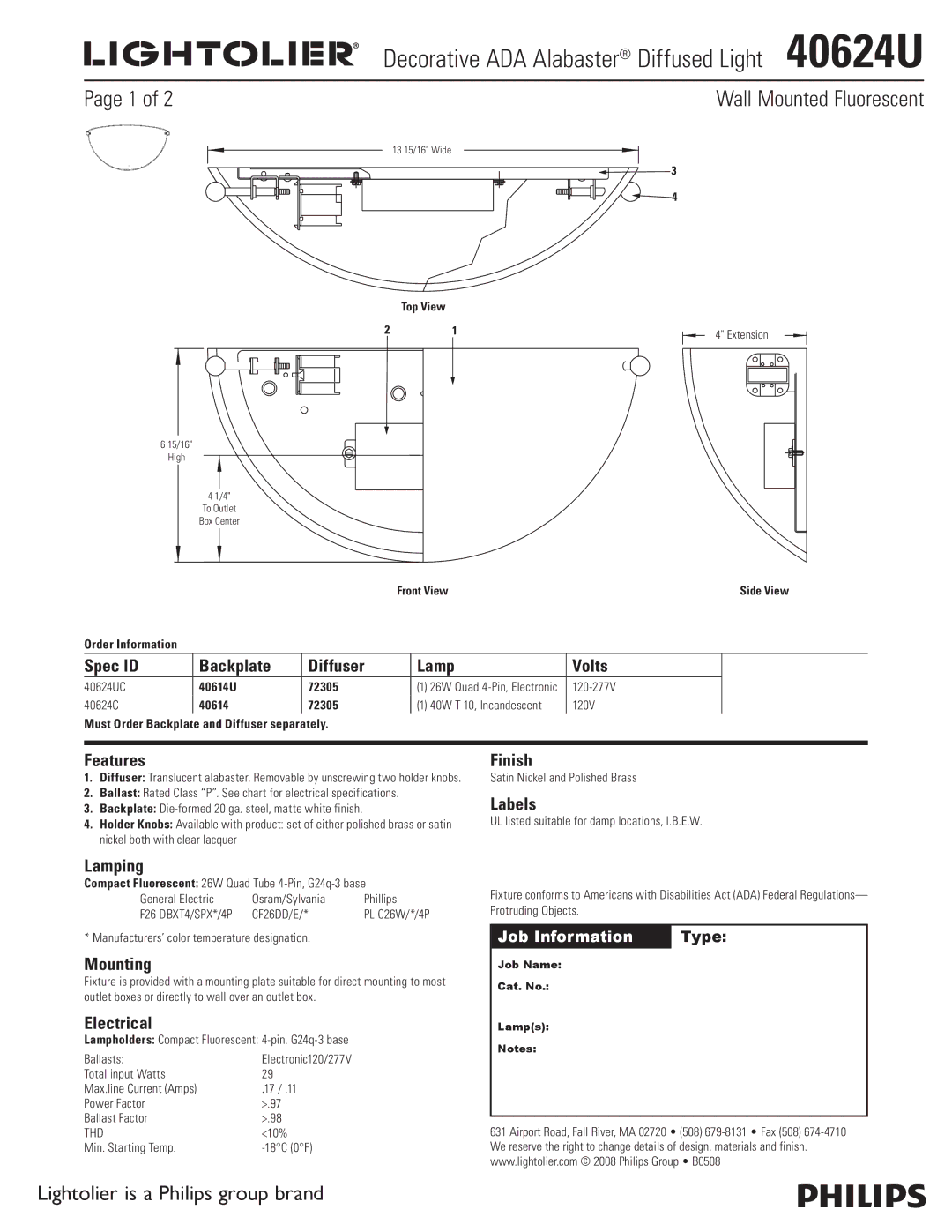

Lightolier 40624U specifications Page 1 of, Wall Mounted Fluorescent, Spec ID, Backplate, Lamp

	Decorative ADA Alabaster® Diffused Light  40624U
Page 1 of 2	Wall Mounted Fluorescent
	13 15/16" Wide
	3
	4

Top View

21

4" Extension

6 15/16"

High

41/4"

To Outlet

Box Center

Front ViewSide View

Order Information

Spec ID	Backplate	Diffuser	Lamp		Volts
40624UC	40614U	72305	(1)	26W Quad 4-Pin, Electronic	120-277V
40624C	40614	72305	(1)	40W T-10, Incandescent	120V

Must Order Backplate and Diffuser separately.

Features

1.Diffuser: Translucent alabaster. Removable by unscrewing two holder knobs.

2.Ballast: Rated Class “P”. See chart for electrical specifications.

3.Backplate: Die-formed 20 ga. steel, matte white finish.

4.Holder Knobs: Available with product: set of either polished brass or satin nickel both with clear lacquer

Lamping

Compact Fluorescent: 26W Quad Tube 4-Pin, G24q-3 base

General Electric	Osram/Sylvania	Phillips
F26 DBXT4/SPX*/4P	CF26DD/E/*	PL-C26W/*/4P

* Manufacturers’ color temperature designation.

Mounting

Fixture is provided with a mounting plate suitable for direct mounting to most outlet boxes or directly to wall over an outlet box.

Electrical

Lampholders: Compact Fluorescent: 4-pin, G24q-3 base

Ballasts:	Electronic120/277V
Total input Watts	29
Max.line Current (Amps)	.17 / .11
Power Factor	>.97
Ballast Factor	>.98
THD	<10%
Min. Starting Temp.	-18°C (0°F)

Lightolier is a Philips group brand

Finish

Satin Nickel and Polished Brass

Labels

UL listed suitable for damp locations, I.B.E.W.

Fixture conforms to Americans with Disabilities Act (ADA) Federal Regulations— Protruding Objects.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • B0508
