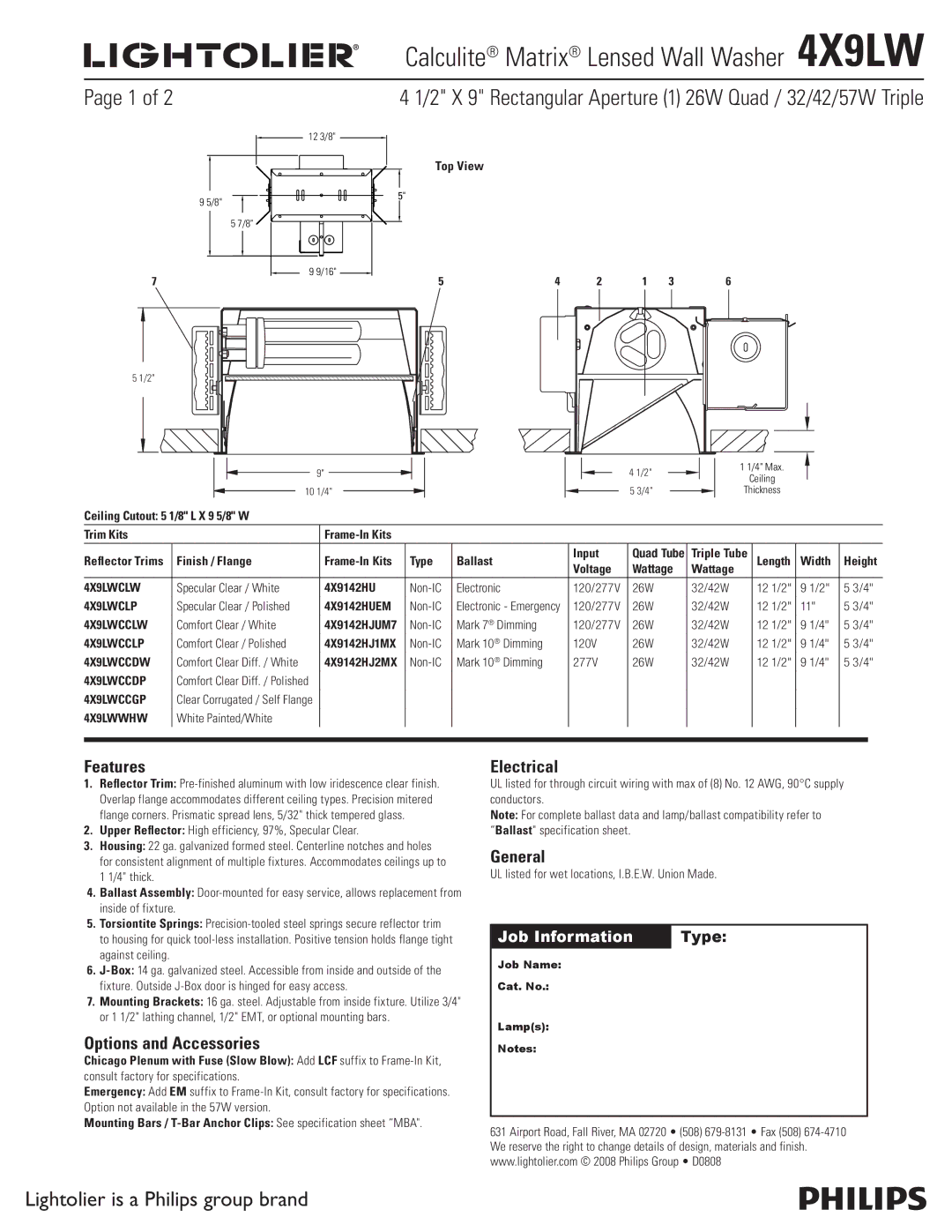

Lightolier specifications Calculite Matrix Lensed Wall Washer 4X9LW, Page 1 of, Type, Features

	Calculite® Matrix® Lensed Wall Washer  4X9LW
Page 1 of 2	4 1/2" X 9" Rectangular Aperture (1) 26W Quad / 32/42/57W Triple

9 5/8"

5 7/8"

7

12 3/8"

9 9/16"

Top View

5"

5 4 2 1 3 6

5 1/2"

9"

10 1/4"

41/2"

53/4"

1 1/4" Max.

Ceiling

Thickness

Ceiling Cutout: 5 1/8" L X 9 5/8" W

Trim Kits		Frame-In Kits
Reflector Trims	Finish / Flange	Frame-In Kits	Type	Ballast	Input	Quad Tube	Triple Tube	Length	Width	Height
					Voltage	Wattage	Wattage
4X9LWCLW	Specular Clear / White	4X9142HU	Non-IC	Electronic	120/277V	26W	32/42W	12 1/2"	9 1/2"	5 3/4"
4X9LWCLP	Specular Clear / Polished	4X9142HUEM	Non-IC	Electronic - Emergency	120/277V	26W	32/42W	12 1/2"	11"	5 3/4"
4X9LWCCLW	Comfort Clear / White	4X9142HJUM7	Non-IC	Mark 7® Dimming	120/277V	26W	32/42W	12 1/2"	9 1/4"	5 3/4"
4X9LWCCLP	Comfort Clear / Polished	4X9142HJ1MX	Non-IC	Mark 10® Dimming	120V	26W	32/42W	12 1/2"	9 1/4"	5 3/4"
4X9LWCCDW	Comfort Clear Diff. / White	4X9142HJ2MX	Non-IC	Mark 10® Dimming	277V	26W	32/42W	12 1/2"	9 1/4"	5 3/4"
4X9LWCCDP	Comfort Clear Diff. / Polished
4X9LWCCGP	Clear Corrugated / Self Flange
4X9LWWHW	White Painted/White

Features

1.Reflector Trim: Pre-finished aluminum with low iridescence clear finish. Overlap flange accommodates different ceiling types. Precision mitered flange corners. Prismatic spread lens, 5/32" thick tempered glass.

2.Upper Reflector: High efficiency, 97%, Specular Clear.

3.Housing: 22 ga. galvanized formed steel. Centerline notches and holes for consistent alignment of multiple fixtures. Accommodates ceilings up to 1 1/4" thick.

4.Ballast Assembly: Door-mounted for easy service, allows replacement from inside of fixture.

5.Torsiontite Springs: Precision-tooled steel springs secure reflector trim to housing for quick tool-less installation. Positive tension holds flange tight against ceiling.

6.J-Box:14 ga. galvanized steel. Accessible from inside and outside of the fixture. Outside J-Box door is hinged for easy access.

7.Mounting Brackets: 16 ga. steel. Adjustable from inside fixture. Utilize 3/4" or 1 1/2" lathing channel, 1/2" EMT, or optional mounting bars.

Options and Accessories

Chicago Plenum with Fuse (Slow Blow): Add LCF suffix to Frame-In Kit, consult factory for specifications.

Emergency: Add EM suffix to Frame-In Kit, consult factory for specifications. Option not available in the 57W version.

Mounting Bars / T-Bar Anchor Clips: See specification sheet “MBA".

Electrical

UL listed for through circuit wiring with max of (8) No. 12 AWG, 90°C supply conductors.

Note: For complete ballast data and lamp/ballast compatibility refer to “Ballast" specification sheet.

General

UL listed for wet locations, I.B.E.W. Union Made.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • D0808

Lightolier is a Philips group brand
