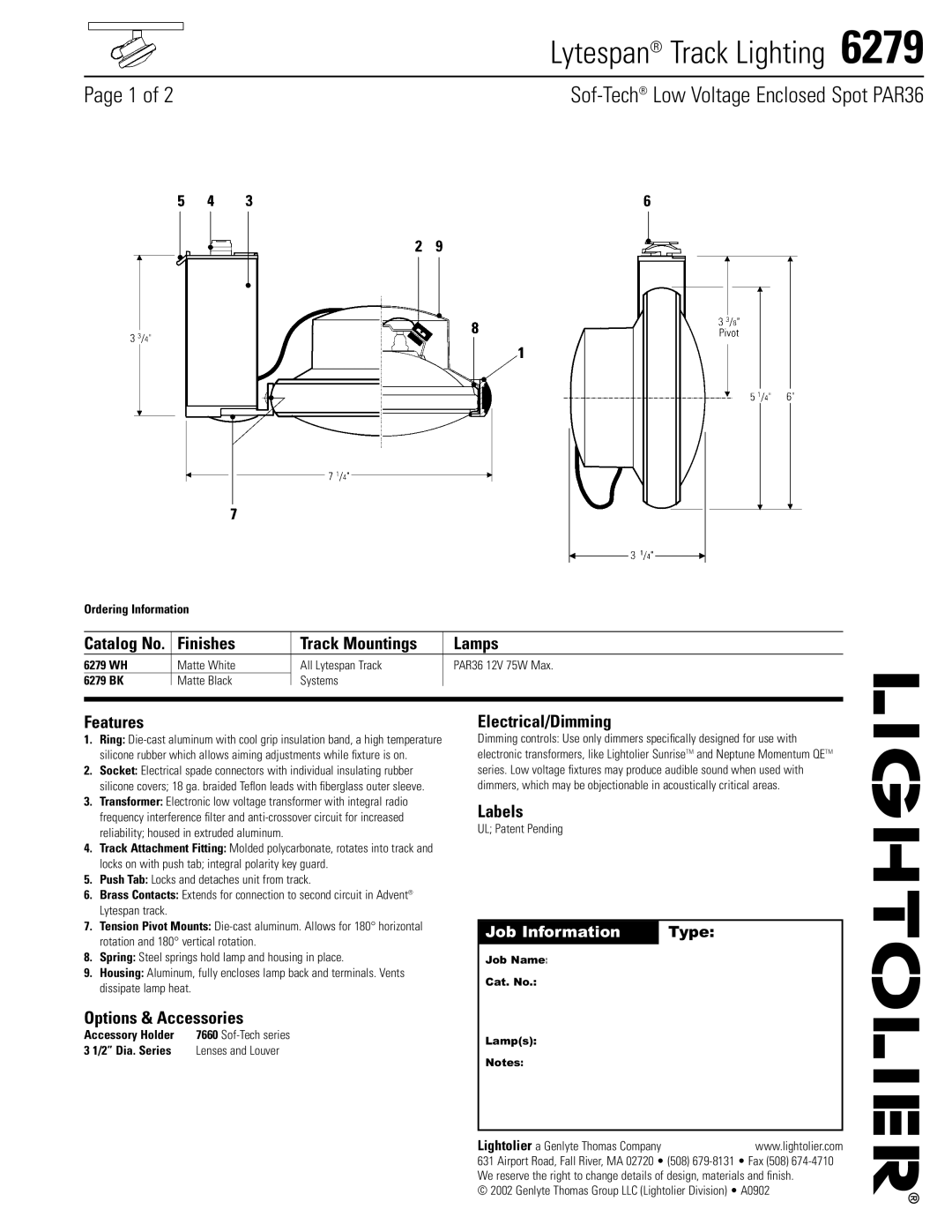

Lightolier 6279 manual Lytespan Track Lighting, Page 1 of, Finishes, Track Mountings, Lamps, Type

Lytespan® Track Lighting 6279

Page 1 of 2 Sof-Tech®Low Voltage Enclosed Spot PAR36

Ordering Information

Catalog No.	Finishes	Track Mountings	Lamps
6279 WH	Matte White	All Lytespan Track	PAR36 12V 75W Max.
6279 BK	Matte Black	Systems

Features

1.Ring: Die-cast aluminum with cool grip insulation band, a high temperature silicone rubber which allows aiming adjustments while fixture is on.

2.Socket: Electrical spade connectors with individual insulating rubber silicone covers; 18 ga. braided Teflon leads with fiberglass outer sleeve.

3.Transformer: Electronic low voltage transformer with integral radio frequency interference filter and anti-crossover circuit for increased reliability; housed in extruded aluminum.

4.Track Attachment Fitting: Molded polycarbonate, rotates into track and locks on with push tab; integral polarity key guard.

5.Push Tab: Locks and detaches unit from track.

6.Brass Contacts: Extends for connection to second circuit in Advent® Lytespan track.

7.Tension Pivot Mounts: Die-cast aluminum. Allows for 180° horizontal rotation and 180° vertical rotation.

8.Spring: Steel springs hold lamp and housing in place.

9.Housing: Aluminum, fully encloses lamp back and terminals. Vents dissipate lamp heat.

Options & Accessories

Accessory Holder	7660 Sof-Tech series
3 1/2” Dia. Series	Lenses and Louver

Electrical/Dimming

Dimming controls: Use only dimmers specifically designed for use with electronic transformers, like Lightolier SunriseTM and Neptune Momentum QETM series. Low voltage fixtures may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.

Labels

UL; Patent Pending

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
