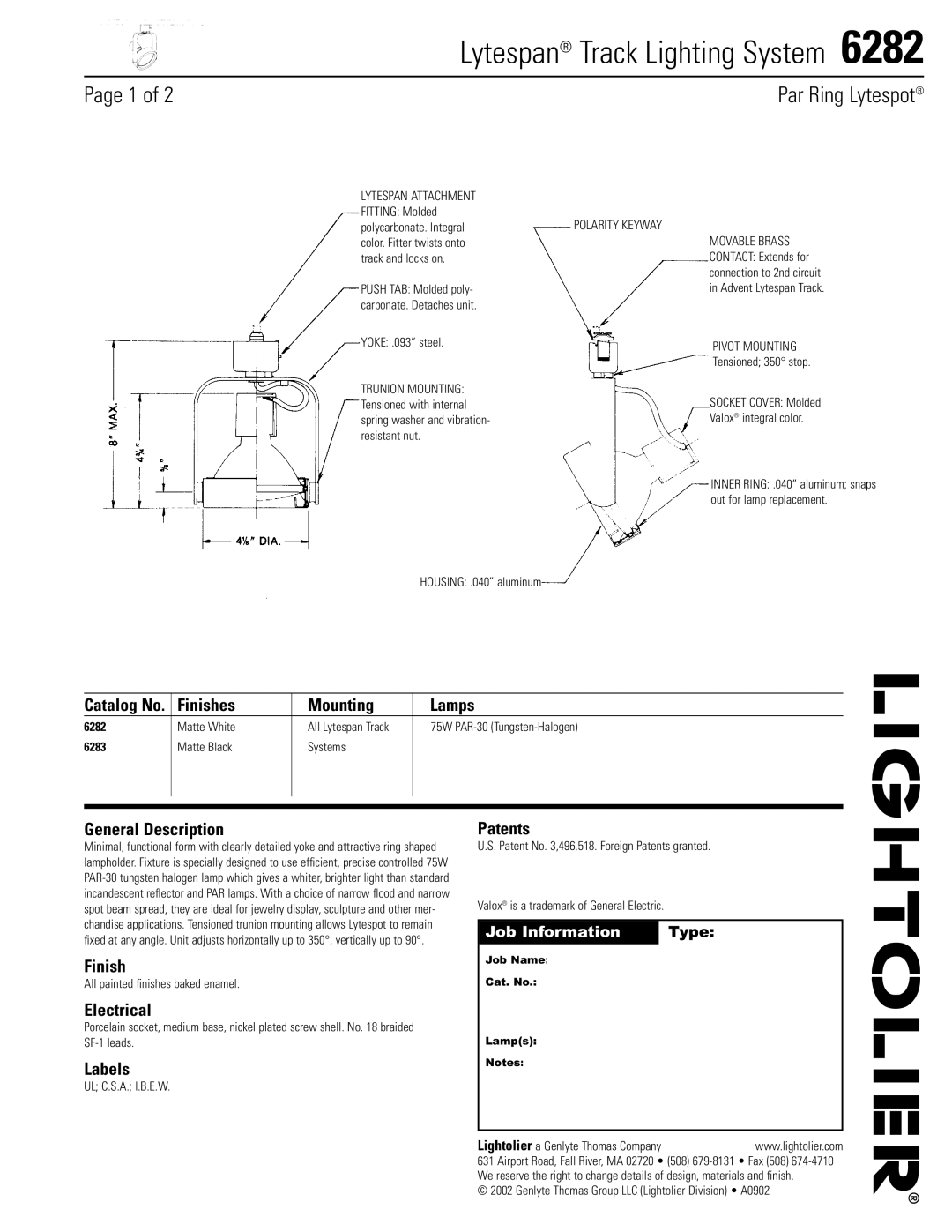

Lightolier 6282 manual Lytespan Track Lighting System, Page 1 of, Par Ring Lytespot, Finishes

Lytespan® Track Lighting System 6282

Page 1 of 2 Par Ring Lytespot®

LYTESPAN ATTACHMENT

FITTING: Molded

polycarbonate. IntegralPOLARITY KEYWAY color. Fitter twists onto

track and locks on.

PUSH TAB: Molded poly- carbonate. Detaches unit.

YOKE: .093” steel.

TRUNION MOUNTING: Tensioned with internal spring washer and vibration- resistant nut.

MOVABLE BRASS CONTACT: Extends for connection to 2nd circuit in Advent Lytespan Track.

PIVOT MOUNTING

Tensioned; 350° stop.

SOCKET COVER: Molded

Valox® integral color.

INNER RING: .040” aluminum; snaps out for lamp replacement.

HOUSING: .040” aluminum

Catalog No.	Finishes	Mounting	Lamps
6282	Matte White	All Lytespan Track	75W PAR-30 (Tungsten-Halogen)
6283	Matte Black	Systems

General Description

Minimal, functional form with clearly detailed yoke and attractive ring shaped Iampholder. Fixture is specially designed to use efficient, precise controlled 75W PAR-30 tungsten halogen lamp which gives a whiter, brighter light than standard incandescent reflector and PAR lamps. With a choice of narrow flood and narrow spot beam spread, they are ideal for jewelry display, sculpture and other mer- chandise applications. Tensioned trunion mounting allows Lytespot to remain fixed at any angle. Unit adjusts horizontally up to 350°, vertically up to 90°.

Finish

All painted finishes baked enamel.

Electrical

Porcelain socket, medium base, nickel plated screw shell. No. 18 braided SF-1 leads.

Labels

UL; C.S.A.; I.B.E.W.

Patents

U.S. Patent No. 3,496,518. Foreign Patents granted.

Valox® is a trademark of General Electric.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
