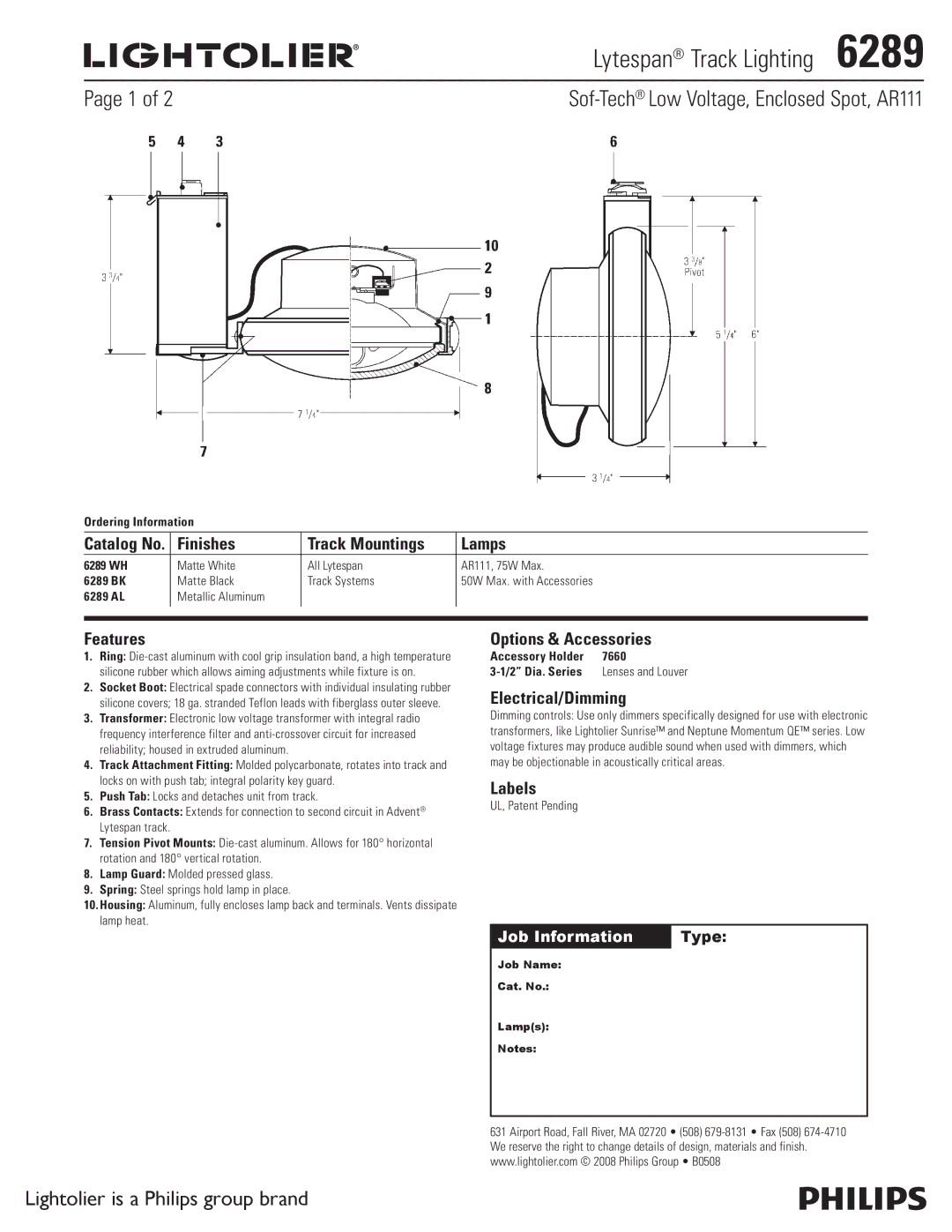

| Lytespan® Track Lighting 6289 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| ||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||
Page 1 of 2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |||||||
Catalog No. | Finishes | Track Mountings | Lamps |
| 6289 WH | Matte White | All Lytespan | AR111, 75W Max. |
| 6289 BK | Matte Black | Track Systems | 50W Max. with Accessories |
| 6289 AL | Metallic Aluminum |
|
|
|
|
|
|
Features
1.Ring:
2.Socket Boot: Electrical spade connectors with individual insulating rubber silicone covers; 18 ga. stranded Teflon leads with fiberglass outer sleeve.
3.Transformer: Electronic low voltage transformer with integral radio frequency interference filter and
4.Track Attachment Fitting: Molded polycarbonate, rotates into track and locks on with push tab; integral polarity key guard.
5.Push Tab: Locks and detaches unit from track.
6.Brass Contacts: Extends for connection to second circuit in Advent®
Lytespan track.
7.Tension Pivot Mounts:
8.Lamp Guard: Molded pressed glass.
9.Spring: Steel springs hold lamp in place.
10.Housing: Aluminum, fully encloses lamp back and terminals. Vents dissipate lamp heat.
Options & Accessories
Accessory Holder | 7660 |
Lenses and Louver |
Electrical/Dimming
Dimming controls: Use only dimmers specifically designed for use with electronic transformers, like Lightolier Sunrise™ and Neptune Momentum QE™ series. Low voltage fixtures may produce audible sound when used with dimmers, which may be objectionable in acoustically critical areas.
Labels
UL, Patent Pending
Job Information | Type: |
|
|
Job Name:
Cat. No.:
Lamp(s):
Notes:
631 Airport Road, Fall River, MA 02720 • (508)
