Calculite® Incandescent Lensed Downlight 7794QD

Page 1 of 2



7 3/8” Aperture Horizontal Lamp Fresnel Lenslite

Top View







2

1

4

9

13"

4 1/4"

5

11 1/2"

6 1 /2"

6

14 1/2"

3"

Flush Trim

Overlap Trim















7

7/16" Dia.





7

3

1

-

1/8" min. -



























1

-

7/8" max.

7 3/4" Flush

Overlap 8 1/2"





8







(Ceilin g Runner)



























Ceiling Cutout: 7 7/8" Dia.

Ordering Information

Catalog Number

7794QD

Lamp

A19 100W

MB19 100W

Features

1.Socket Cup: Die-formed steel effectively dissipates heat and assures lamps maintain proper optical alignment to reflector. Contains medium base porcelain socket with nickel plated screw shell wired with No. 18 SF1 leads to J-Box.

2.Mounting Brackets: Adjust vertically from inside of fixture. Durable 16 ga. steel construction. Use with standard 3/4" or 1 1/2" lathing channels

(by others), or Lightolier accessory mounting bars.

3.Retaining Springs: Torsiontite springs secure bezel reflector housing.

4.Reflector: Specular Alzak® aluminum, 16 ga., reflector housing can be detached from inside of fixture for access to splices after installation.

5.Junction Box: 14 ga. steel, 4" x 3 1/2" x 2" box allows inspection from below.

6.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

7.Trim Frame: Die-cast aluminum suitable for dry or plaster ceilings. Flanges for dry ceilings, reversible flangeless trim for use in plaster ceilings. Matte white baked enamel finish.

8.Bezel: Die-cast aluminum bezel forms deep attractive conical aperture. Matte white baked enamel finish. Includes black polyurethane foam gasket to provide effective light and dust shield.

9.Lens: 6" diameter gray colouvered risers. Recessed 1 1/2" from ceiling.

Options & Accessories

18" Mounting Bars

1950

(set of 2)

27" Mounting Bars

1951

(set of 2)

T-Bar Anchor Clips

1956

(set of 4, for 1950 & 1951 bars)

Wood Joist Mtg. Bars

7994

(set of 2)

Sloped Ceiling Adapter

7926

(see SCA specification sheet)

Step Down Transformer

7997

277v Step Down Transformer

(277v primary 1.1 amp/120v secondary,

300w capacity)

Electrical

UL listed for maximum of 8 No.12, 75°C through branch circuit supply conduc- tors, or 60°C supply conductors for end of run.

Labels

UL Listed for wet locations, I.B.E.W.

Alzak® is a registered trademark of ALCOA.

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2003 Genlyte Thomas Group LLC (Lightolier Division) • B0303

Page 1

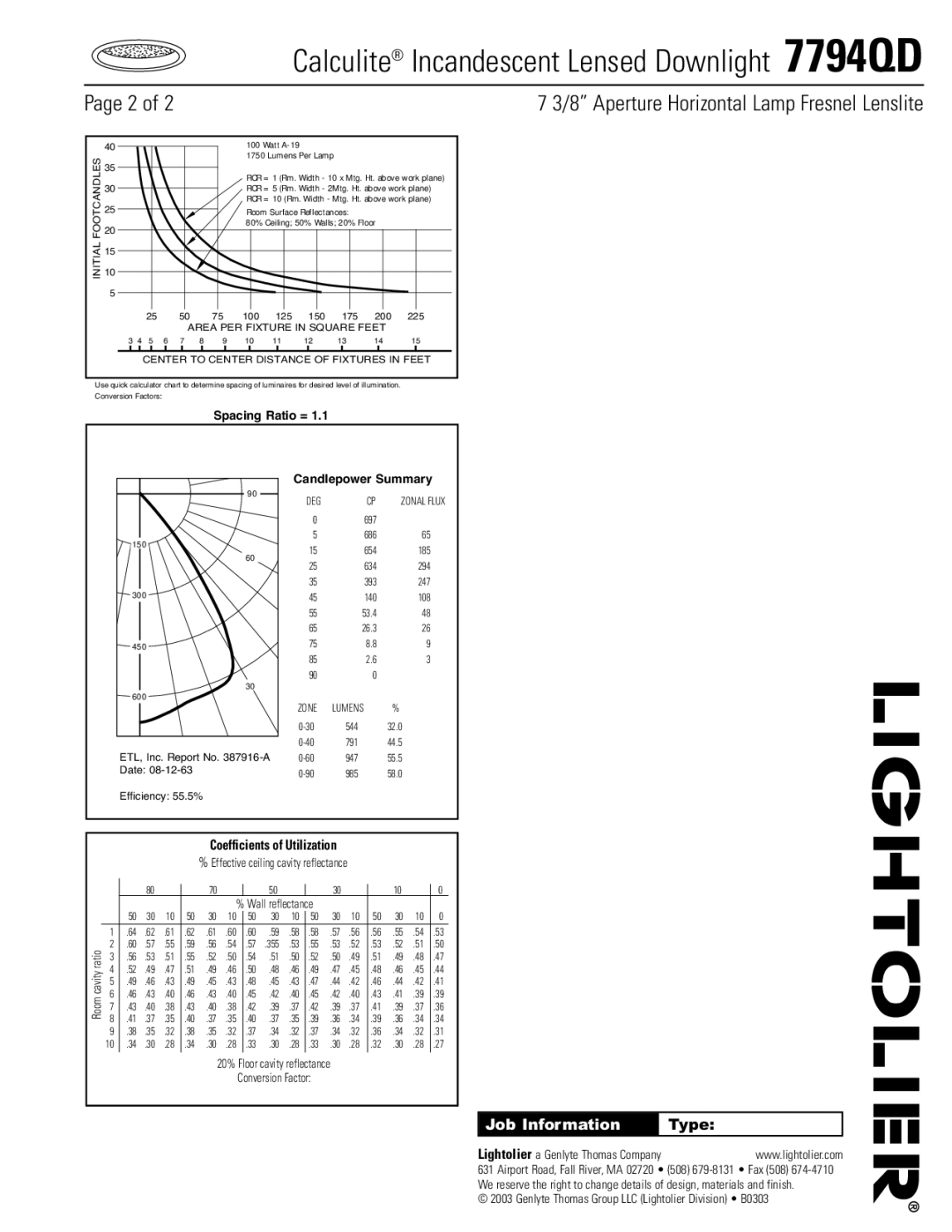

Image 1
