Calculite® Compact Fluorescent Downlight 8038/SR8242

Page 1 of 2

8 3/4” Aperture Semi-Recessed Open Reflector (55° Cutoff) (2) Lt. Triple Tube

12 7/8" 15 1/8"

(352 mm) (384 mm)

6

2

4

3

1

5



10

1/2"

17"

(267 mm)





(432 mm)





Top View

4" (102 mm)



5 3/8" (136 mm)

7

1 1/8" (32 mm) Max. Ceiling Thk.







8 3/4" (222 mm) Dia.







Ceiling Cutout: 13” (330 mm) Dia.



13 1/2" (343 mm) Dia.



























Reflector Trim

Frame-In Kit





Lamps

8038CL

Specular Clear

SR8242U

Electronic

120V-277V



2-26/32/42W Triple Tube

8038CCL

Comfort Clear™

SR8242JUM7 Advance Mark VII® Dimming

120V-277V



4-Pin

8038CCD

Comfort Clear Diffuse™











8038WH

White

























Features

1.Reflector: Alzak® aluminum, 16 ga.; 50° visual cutoff to lamp and lamp image. Iridescence FreeTM finish eliminates rainbowing without degrading optical performance. Minimum flange. Aperture appearance matches recessed unit (see Specification Sheet No. 8038).

2.Housing Cylinder: 16 ga., seamless aluminum with returned edge precisely seats flush with reflector without exposed edge. Painted white finish.

3.Recessed Housing: Hydroformed heavy aluminum, 14 ga. Accepts other

83/4" triple tube reflector trims.

4.Socket Support: Die-formed steel with venting to dissipate heat and assures lamps maintain proper optical alignment to reflector. Can be rotated with reflector/louver for horizontal alignment. Pre-wired with No. 18 ga. AWM leads.

5.Ballast: Universal 120-277V, electronic, short circuit and end-of-lamp life protection, THD<10%, Class P, high power factor, No PCBs, FCC approved, quiet operation. 100%-5% dimming range for Advance Mark VII®. For addi- tional information, see Ballast and Dim-AdvanceSpecification Sheets.

6.Mounting Brackets: 16 ga. steel. Adjust from inside of fixture. Use 3/4" or

11/2" lathing channel, 1/2" EMT, or optional mounting bars.

7.Junction Box: 16 ga. steel, 4" x 4" x 2" box allows inspection from below.

Electrical

UL listed for through branch circuit wiring with max. of (8) No. 12 AWG, 90°C supply conductors.

Dimming Control

Use with dimmers specially designed for use with dimming ballast. For addition- al information, see Lightolier Controls Catalog, or call Lightolier Controls at 800- 526-2731, or visit website at www.lolcontrols.com.

Labels

UL listed for damp locations, I.B.E.W.

Alzak® is a registered trademark of ALCOA.

Mark VII® is a registered trademark of Advance Transformer Company.

Options and Accessories

Other Dimming Ballasts

Consult Factory

Mounting Bars

1950

- 18" set of (2)



1951

- 27" set of (2)

T-Bars Anchor Clips

1956

- set of (4) for use w/ above

Wood Joist Telescoping Bars

7994

- set of (2)

Chicago Plenum

Consult Factory

Fuse (Slow Blow)

Add Suffix F to Frame-In Kit

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902

Page 1
Image 1

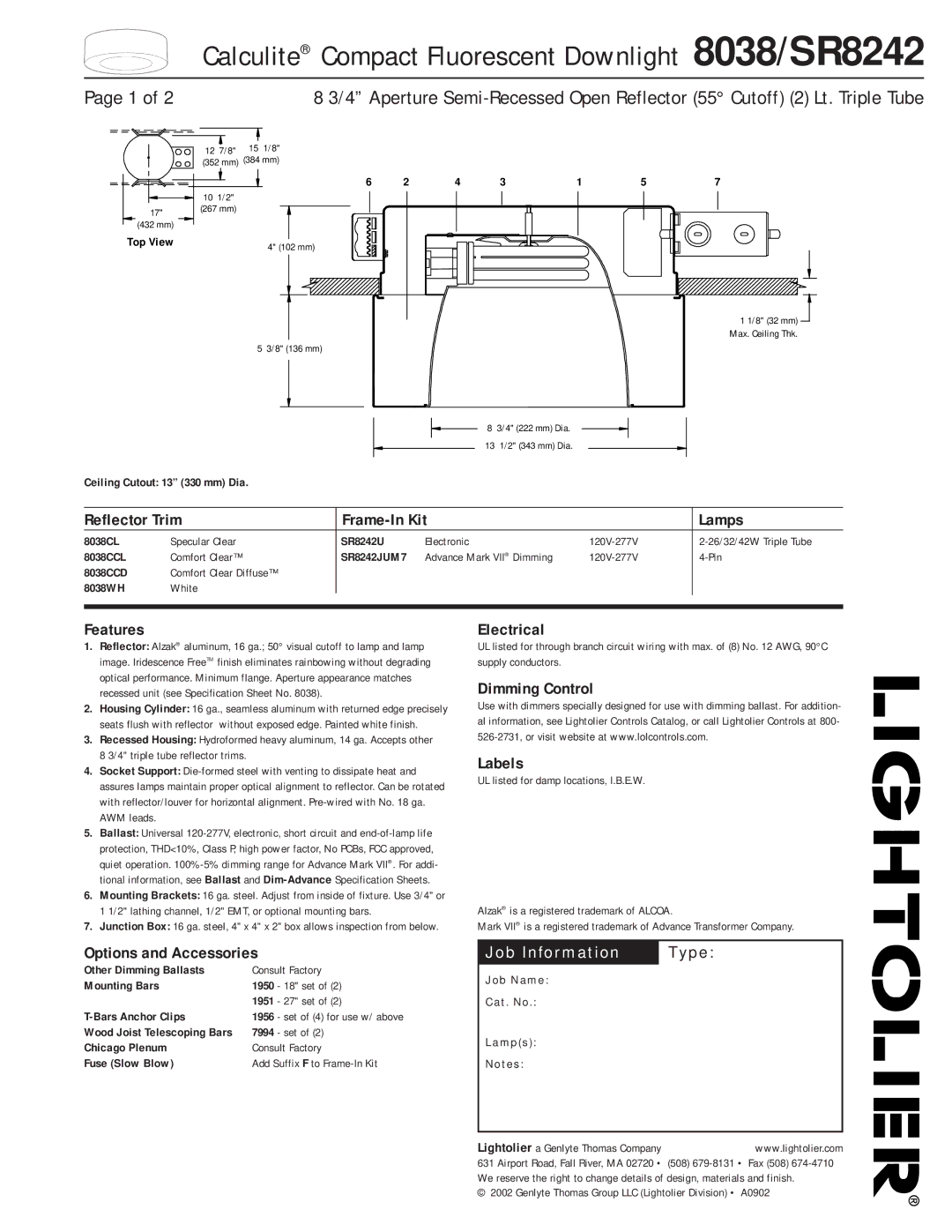

Lightolier 8038/SR8242 specifications Reflector Trim Frame-In Kit Lamps, Features, Electrical, Dimming Control Labels
