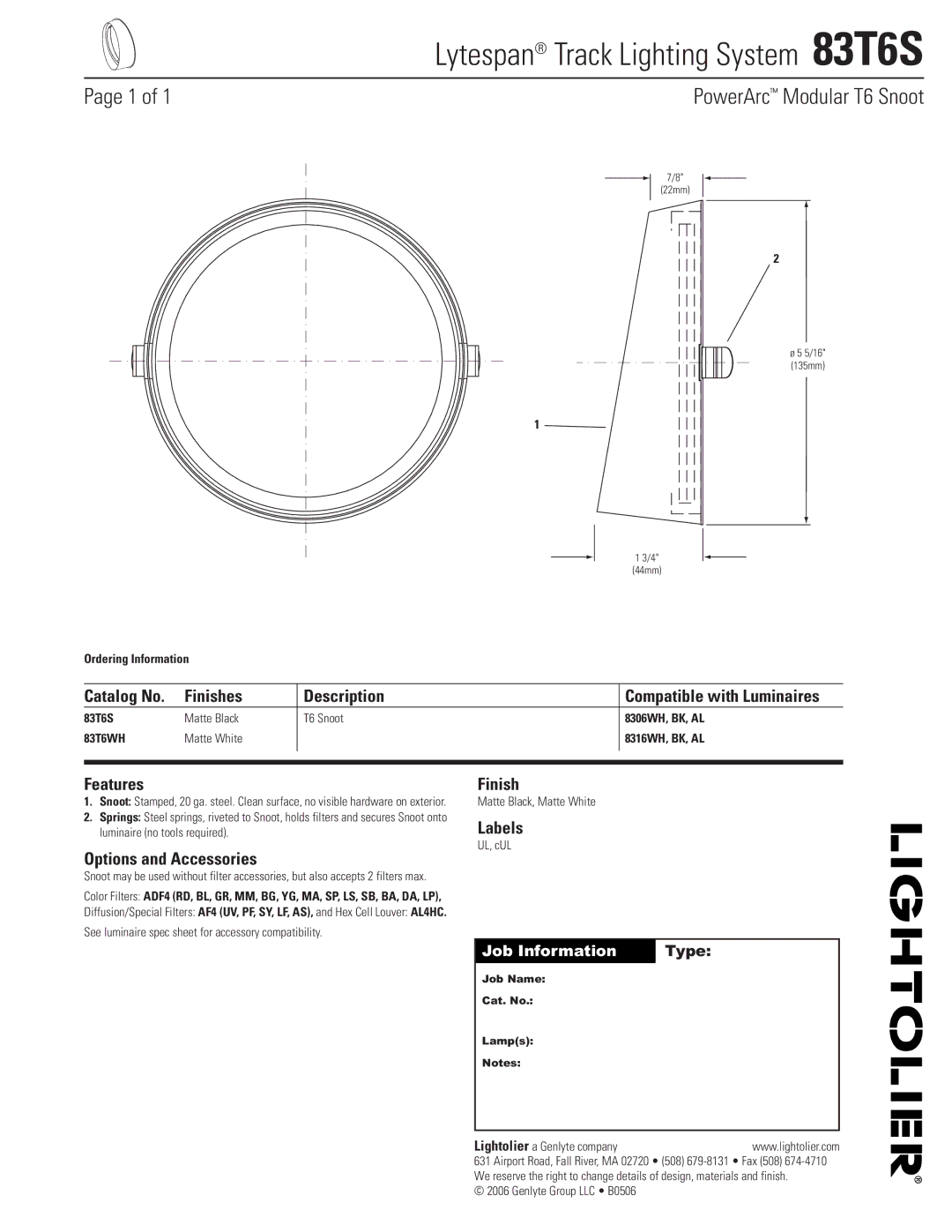

Lytespan® Track Lighting System 83T6S

Page 1 of 1 PowerArc™ Modular T6 Snoot

7/8"

(22mm)

2

ø 5 5/16" (135mm)

1

1 3/4"

(44mm)

Ordering Information

Catalog No.	Finishes	Description	Compatible with Luminaires
83T6S	Matte Black	T6 Snoot	8306WH, BK, AL
83T6WH	Matte White		8316WH, BK, AL

Features

1.Snoot: Stamped, 20 ga. steel. Clean surface, no visible hardware on exterior.

2.Springs: Steel springs, riveted to Snoot, holds filters and secures Snoot onto luminaire (no tools required).

Finish

Matte Black, Matte White

Labels

UL, cUL

Options and Accessories

Snoot may be used without filter accessories, but also accepts 2 filters max.

Color Filters: ADF4 (RD, BL, GR, MM, BG, YG, MA, SP, LS, SB, BA, DA, LP),

Diffusion/Special Filters: AF4 (UV, PF, SY, LF, AS), and Hex Cell Louver: AL4HC.

See luminaire spec sheet for accessory compatibility.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • B0506
