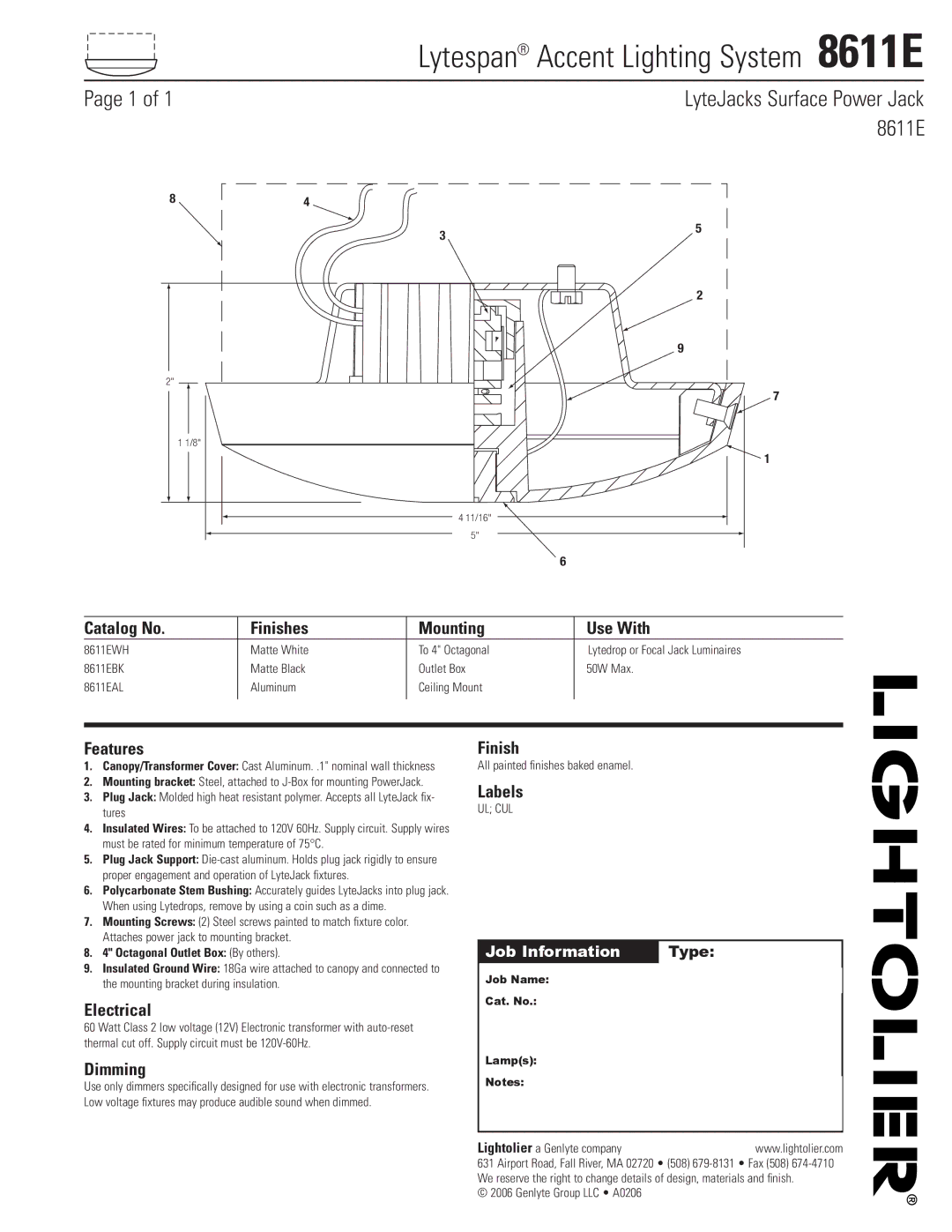

Lytespan® Accent Lighting System  8611E

Page 1 of 1





LyteJacks Surface Power Jack







8611E

8

4









3

5













2







9

2"













7



1 1/8"











1





4 11/16"







5"









6

Catalog No.

Finishes

Mounting

Use With

8611EWH

Matte White

To 4" Octagonal

Lytedrop or Focal Jack Luminaires

8611EBK

Matte Black

Outlet Box

50W Max.

8611EAL

Aluminum

Ceiling Mount



Features

1.Canopy/Transformer Cover: Cast Aluminum. .1" nominal wall thickness

2.Mounting bracket: Steel, attached to J-Box for mounting PowerJack.

3.Plug Jack: Molded high heat resistant polymer. Accepts all LyteJack fix- tures

4.Insulated Wires: To be attached to 120V 60Hz. Supply circuit. Supply wires must be rated for minimum temperature of 75°C.

5.Plug Jack Support: Die-cast aluminum. Holds plug jack rigidly to ensure proper engagement and operation of LyteJack fixtures.

6.Polycarbonate Stem Bushing: Accurately guides LyteJacks into plug jack. When using Lytedrops, remove by using a coin such as a dime.

7.Mounting Screws: (2) Steel screws painted to match fixture color. Attaches power jack to mounting bracket.

8.4" Octagonal Outlet Box: (By others).

9.Insulated Ground Wire: 18Ga wire attached to canopy and connected to the mounting bracket during insulation.

Electrical

60 Watt Class 2 low voltage (12V) Electronic transformer with auto-reset thermal cut off. Supply circuit must be 120V-60Hz.

Dimming

Use only dimmers specifically designed for use with electronic transformers. Low voltage fixtures may produce audible sound when dimmed.

Finish

All painted finishes baked enamel.

Labels

UL; CUL

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2006 Genlyte Group LLC • A0206
