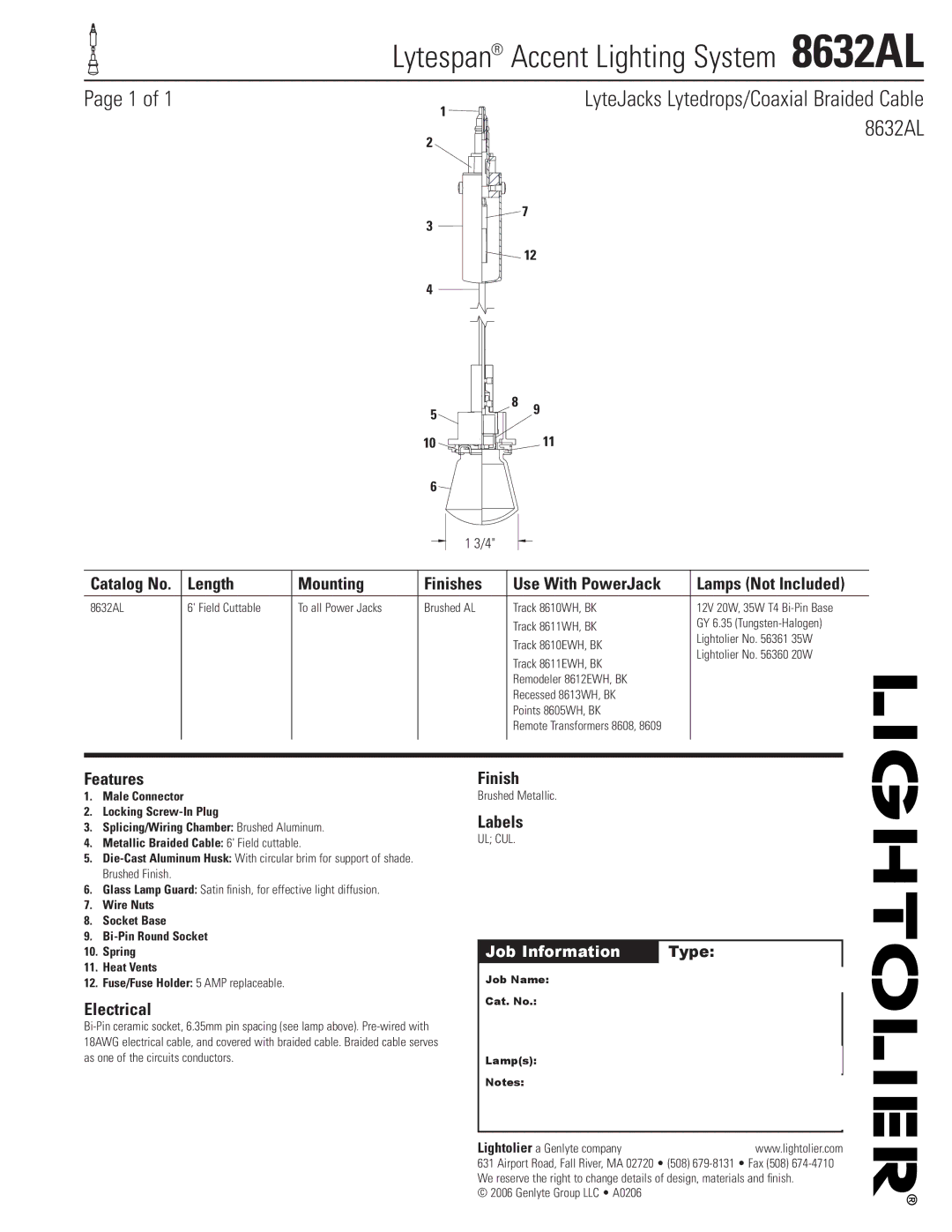

Lytespan® Accent Lighting System  8632AL

Page 1 of 1

1

2

7

3

12

4

5	8	9
10		11
6
	1 3/4"

LyteJacks Lytedrops/Coaxial Braided Cable 8632AL

Catalog No.	Length	Mounting	Finishes	Use With PowerJack	Lamps (Not Included)
8632AL	6' Field Cuttable	To all Power Jacks	Brushed AL	Track 8610WH, BK	12V 20W, 35W T4 Bi-Pin Base
				Track 8611WH, BK	GY 6.35 (Tungsten-Halogen)
				Track 8610EWH, BK	Lightolier No. 56361 35W
					Lightolier No. 56360 20W
				Track 8611EWH, BK
				Remodeler 8612EWH, BK
				Recessed 8613WH, BK
				Points 8605WH, BK
				Remote Transformers 8608, 8609

Features

1.Male Connector

2.Locking Screw-In Plug

3.Splicing/Wiring Chamber: Brushed Aluminum.4.Metallic Braided Cable: 6' Field cuttable.

5.Die-Cast Aluminum Husk: With circular brim for support of shade. Brushed Finish.

6.Glass Lamp Guard: Satin finish, for effective light diffusion.

7.Wire Nuts

8.Socket Base

9.Bi-Pin Round Socket

10.Spring

11.Heat Vents

12.Fuse/Fuse Holder: 5 AMP replaceable.

Electrical

Bi-Pin ceramic socket, 6.35mm pin spacing (see lamp above). Pre-wired with 18AWG electrical cable, and covered with braided cable. Braided cable serves as one of the circuits conductors.

Finish

Brushed Metallic.

Labels

UL; CUL.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:
