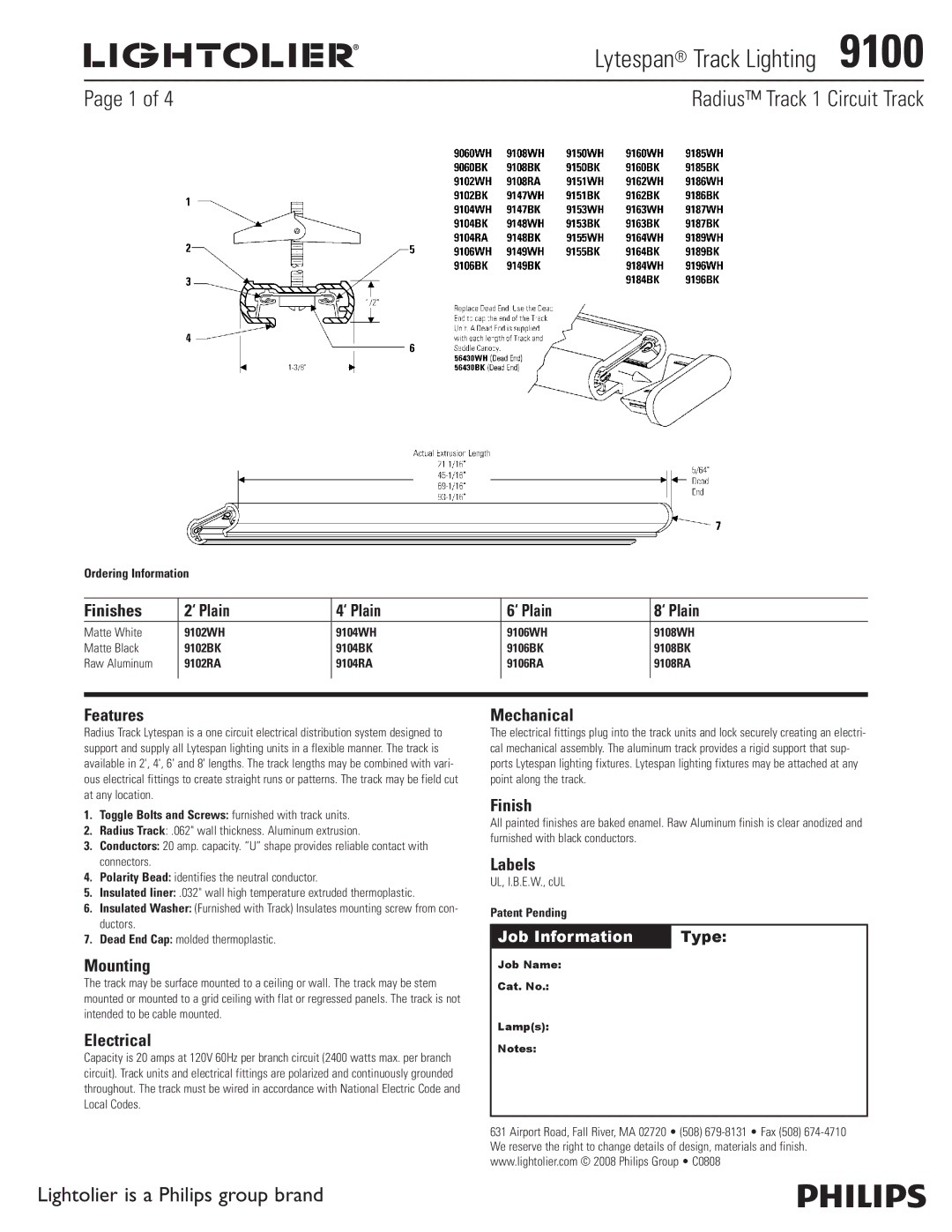

Lytespan® Track Lighting  9100































































































































































Page 1 of 4































Radius™ Track 1 Circuit Track

Ordering Information

Finishes

2‘ Plain

4‘ Plain

6‘ Plain

8‘ Plain

Matte White

9102WH

9104WH

9106WH

9108WH

Matte Black

9102BK

9104BK

9106BK

9108BK

Raw Aluminum

9102RA

9104RA

9106RA

9108RA





















Features

Radius Track Lytespan is a one circuit electrical distribution system designed to support and supply all Lytespan lighting units in a flexible manner. The track is available in 2', 4', 6' and 8' lengths. The track lengths may be combined with vari- ous electrical fittings to create straight runs or patterns. The track may be field cut at any location.

1.Toggle Bolts and Screws: furnished with track units.

2.Radius Track: .062" wall thickness. Aluminum extrusion.

3.Conductors: 20 amp. capacity. “U” shape provides reliable contact with connectors.

4.Polarity Bead: identifies the neutral conductor.

5.Insulated liner: .032" wall high temperature extruded thermoplastic.

6.Insulated Washer: (Furnished with Track) Insulates mounting screw from con- ductors.

7.Dead End Cap: molded thermoplastic.

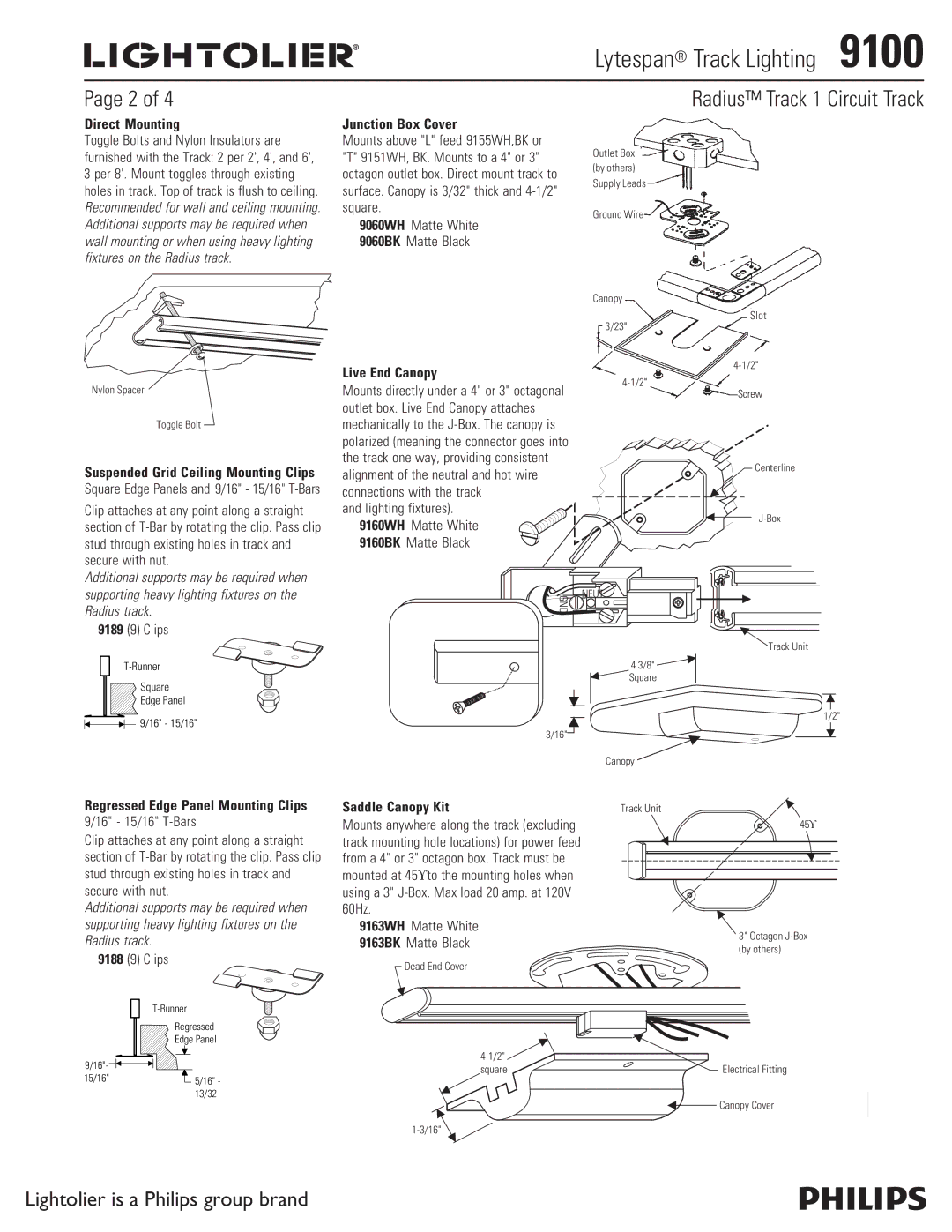

Mounting

The track may be surface mounted to a ceiling or wall. The track may be stem mounted or mounted to a grid ceiling with flat or regressed panels. The track is not intended to be cable mounted.

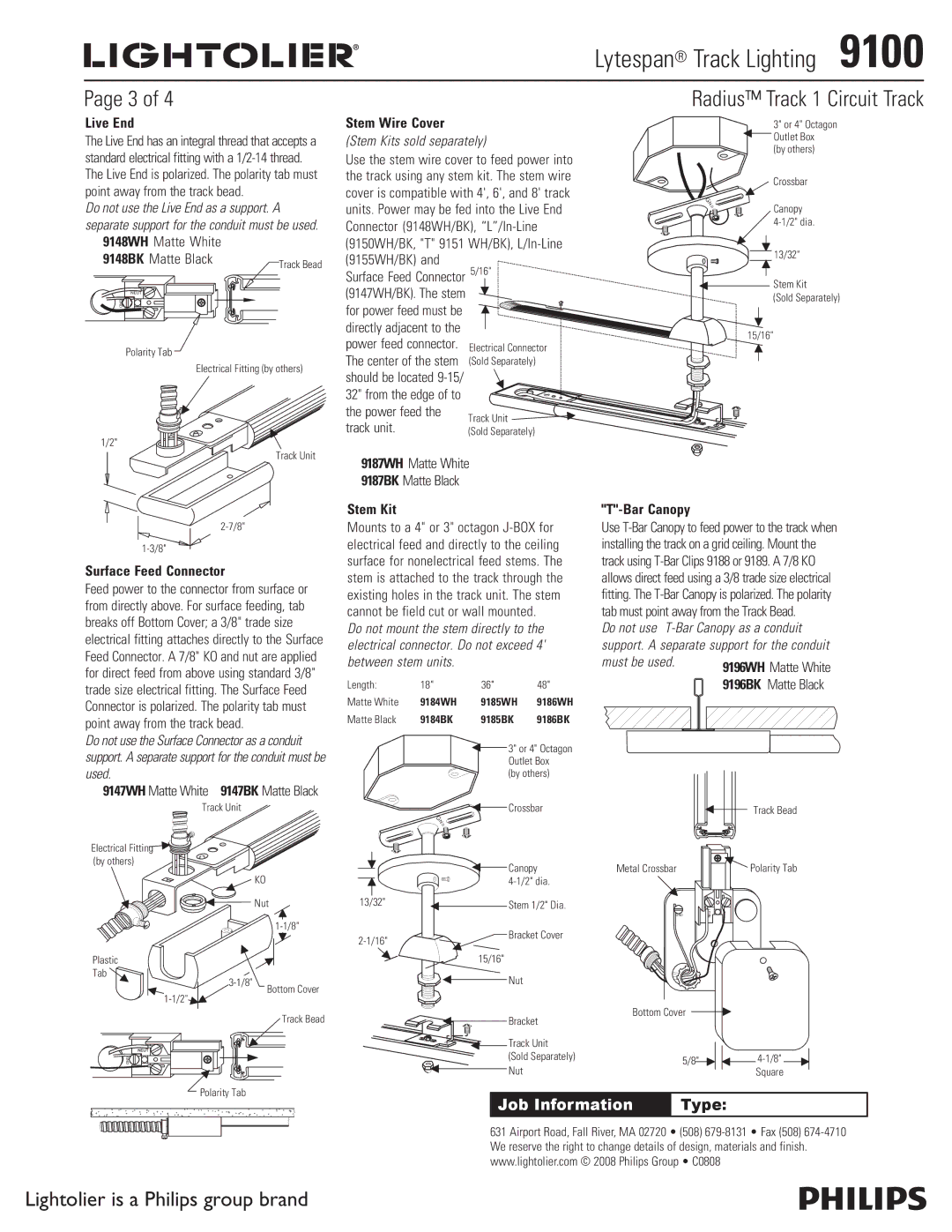

Electrical

Capacity is 20 amps at 120V 60Hz per branch circuit (2400 watts max. per branch circuit). Track units and electrical fittings are polarized and continuously grounded throughout. The track must be wired in accordance with National Electric Code and Local Codes.

Mechanical

The electrical fittings plug into the track units and lock securely creating an electri- cal mechanical assembly. The aluminum track provides a rigid support that sup- ports Lytespan lighting fixtures. Lytespan lighting fixtures may be attached at any point along the track.

Finish

All painted finishes are baked enamel. Raw Aluminum finish is clear anodized and furnished with black conductors.

Labels

UL, I.B.E.W., cUL

Patent Pending

Job Information

Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish. www.lightolier.com © 2008 Philips Group • C0808

Lightolier is a Philips group brand

Page 1
