Lightolier Baselyte-BSL2 Light T8 Direct/Indirect, Performance, Run Configuration, Type, End Set

Lighting Systems  Baselyte-BSL2

Page		of 8
Performance
Candlepower Curve				Candlepower Summary
				ZONE		CANDLEPOWER
				DEG.	0	22.5	45	67.5	90

				180	1740	1740	1740	1740	1740
				175	1730	1730	1733	1729	1730
				165	1668	1665	1681	1689	1696
				155	1554	1555	1597	1616	1631
				145	1389	1402	1479	1551	1582
				135	1179	1208	1357	1469	1511
				125	927	998	1208	1339	1377
				115	647	777	1002	1058	1096
				105	353	525	655	647	676

				95	91	147	213	186	212
				90	7	29	45	53	51
				85	23	35	53	58	62
				75	52	62	98	96	102
				65	98	117	128	152	169
				55	201	191	194	186	195
Report No: 2101590				45	329	282	260	256	262
				35	452	391	339	316	322
Lamps: F32T8
				25	568	508	472	418	412
Lumens per Lamp: 2950
				15	663	626	592	558	562
Efficiency: 84.1%				5	720	712	701	681	685
Up: 82.2% Down: 17.8%				0	727	727	727	727	727

Module Lengths & Mounting Distances

@

-ODULE ,ENGTH ,

-OUNTING $ISTANCE

@

-ODULE ,ENGTH ,-OUNTING $ISTANCE

@

-ODULE ,ENGTH ,-OUNTING $ISTANCE

Note: Shaded area indicates locations of emergency sections (emergency wiring controls all lamps or optional battery pack controls one or two lamps).

3 Light T8 Direct/Indirect

Coefficients of Utilization

		% EFFECTIVE CEILING CAVITY REFLECTANCE
		80			70			50
				% WALL REFLECTANCE
	50	30	10	50	30	10	50	30	10
0	83	83	83	73	73	73	55	55	55
1	72	69	66	64	61	59	48	46	44
2	63	58	54	56	52	48	42	39	37
3	55	50	45	49	44	40	37	34	31
4	49	43	38	43	38	34	33	29	26
5	43	37	32	38	33	29	29	25	22
6	39	32	28	34	29	25	26	22	19
7	35	29	24	31	26	22	24	20	17
8	31	25	21	28	23	19	21	18	15
9	29	23	19	25	20	17	19	16	13
10	26	20	17	23	18	15	18	14	12

Zonal Lumen Summary
ZONE	LUMENS	%BARE LAMP	%LUMINAIRE
0-90	1328.5	15.0	17.8
90-180	6118.5	69.1	82.2
0-180	7447	84.1	100.0

Run Configuration

Run	4’	8’	12’	Joiner	End Set	Mount	Power
Length	Module	Module	Module				Mount*
4’ run	1				1	1	1
8’ run		1			1	1	1
12’ run			1		1	1	1
16’ run		2		1	1	2	1
20’ run		1	1	1	1	2	1
24’ run			2	1	1	2	1
28’ run		2	1	2	1	3	1
32’ run		1	2	2	1	3	1

*Note: Additional power mounts may be required for some runs with T5 HO lamping options, longer runs, and runs with wiring options that are more complex. Please consult factory for assistance.

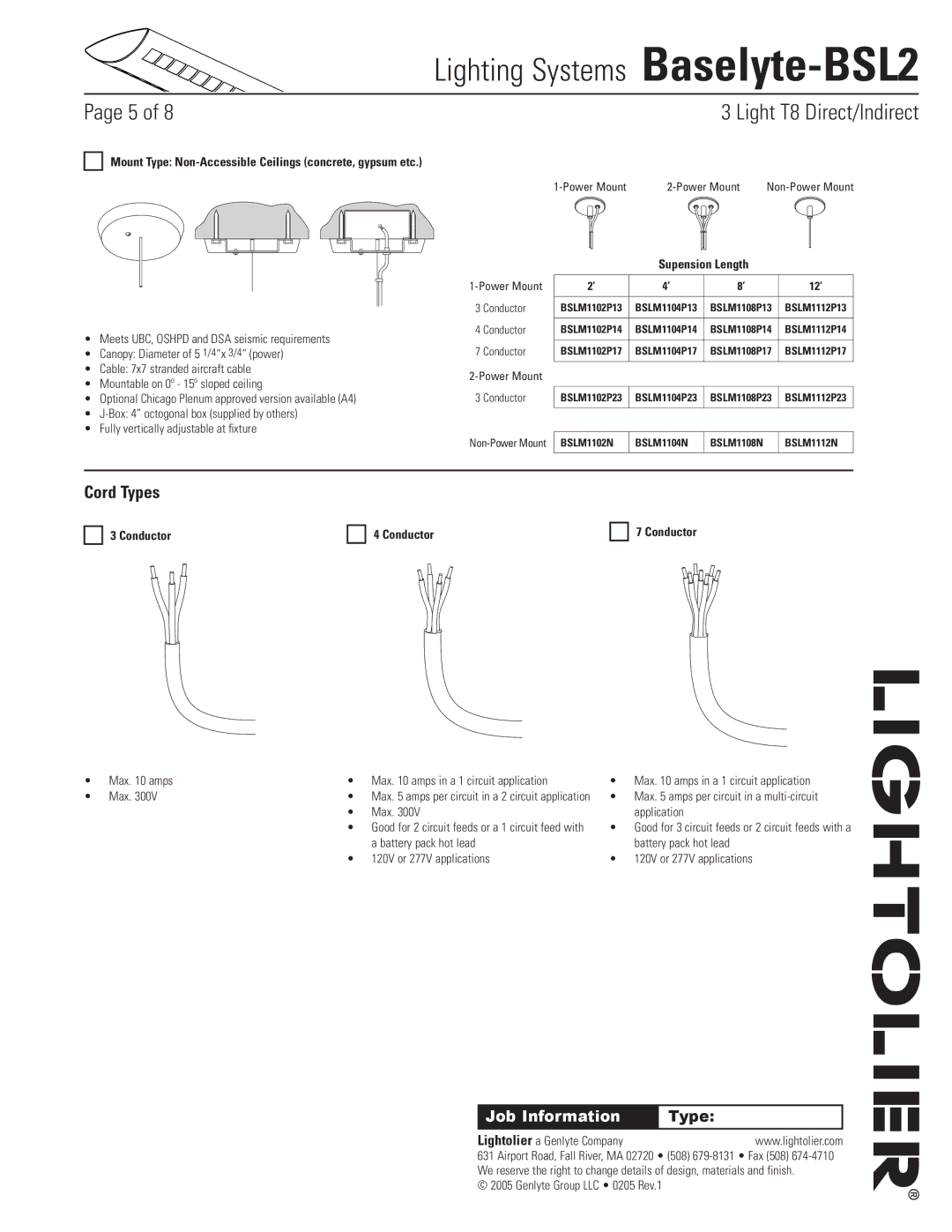

System Components & Accessories

End Set

BSLESW = suspended standard white

Joiner

BSLJS = suspended joiner

Dust Cover

BSLDCS = 4’ suspended dust cover

Job Information	Type:
Lightolier a Genlyte Company	www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2005 Genlyte Group LLC • 0205 Rev.1
