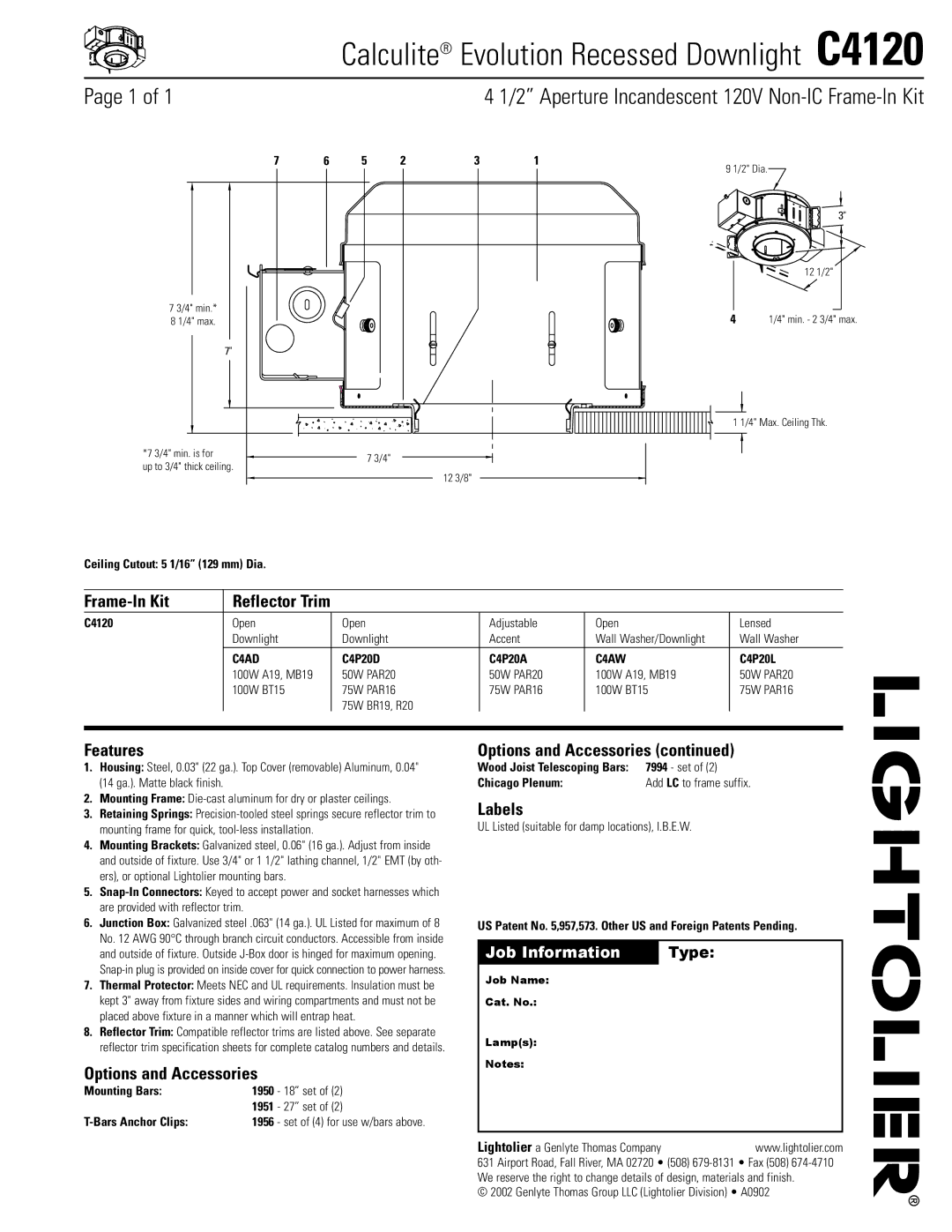

Lightolier specifications Calculite Evolution Recessed Downlight C4120

Calculite® Evolution Recessed Downlight C4120

Page 1 of 1					4 1/2” Aperture Incandescent 120V Non-IC Frame-In Kit
7	6	5	2	3	1
					9 1/2" Dia.
					3"

		12 1/2"
7 3/4" min.*	4	1/4" min. - 2 3/4" max.
8 1/4" max.
7"
	1 1/4" Max. Ceiling Thk.
*7 3/4" min. is for	7 3/4"
up to 3/4" thick ceiling.
	12 3/8"

Ceiling Cutout: 5 1/16” (129 mm) Dia.

Frame-In Kit	Reflector Trim
C4120	Open	Open	Adjustable	Open	Lensed
	Downlight	Downlight	Accent	Wall Washer/Downlight	Wall Washer
	C4AD	C4P20D	C4P20A	C4AW	C4P20L
	100W A19, MB19	50W PAR20	50W PAR20	100W A19, MB19	50W PAR20
	100W BT15	75W PAR16	75W PAR16	100W BT15	75W PAR16
		75W BR19, R20

Features

1.Housing: Steel, 0.03" (22 ga.). Top Cover (removable) Aluminum, 0.04"

(14 ga.). Matte black finish.

2.Mounting Frame: Die-cast aluminum for dry or plaster ceilings.

3.Retaining Springs: Precision-tooled steel springs secure reflector trim to mounting frame for quick, tool-less installation.

4.Mounting Brackets: Galvanized steel, 0.06" (16 ga.). Adjust from inside and outside of fixture. Use 3/4" or 1 1/2" lathing channel, 1/2" EMT (by oth- ers), or optional Lightolier mounting bars.

5.Snap-In Connectors: Keyed to accept power and socket harnesses which are provided with reflector trim.

6.Junction Box: Galvanized steel .063" (14 ga.). UL Listed for maximum of 8 No. 12 AWG 90°C through branch circuit conductors. Accessible from inside and outside of fixture. Outside J-Box door is hinged for maximum opening.

Snap-in plug is provided on inside cover for quick connection to power harness.

7.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3" away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

8.Reflector Trim: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog numbers and details.

Options and Accessories

Mounting Bars:	1950	- 18” set of (2)
	1951	- 27” set of (2)
T-Bars Anchor Clips:	1956	- set of (4) for use w/bars above.

Options and Accessories (continued)

Wood Joist Telescoping Bars:	7994 - set of (2)
Chicago Plenum:	Add LC to frame suffix.

Labels

UL Listed (suitable for damp locations), I.B.E.W.

US Patent No. 5,957,573. Other US and Foreign Patents Pending.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s): Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2002 Genlyte Thomas Group LLC (Lightolier Division) • A0902
