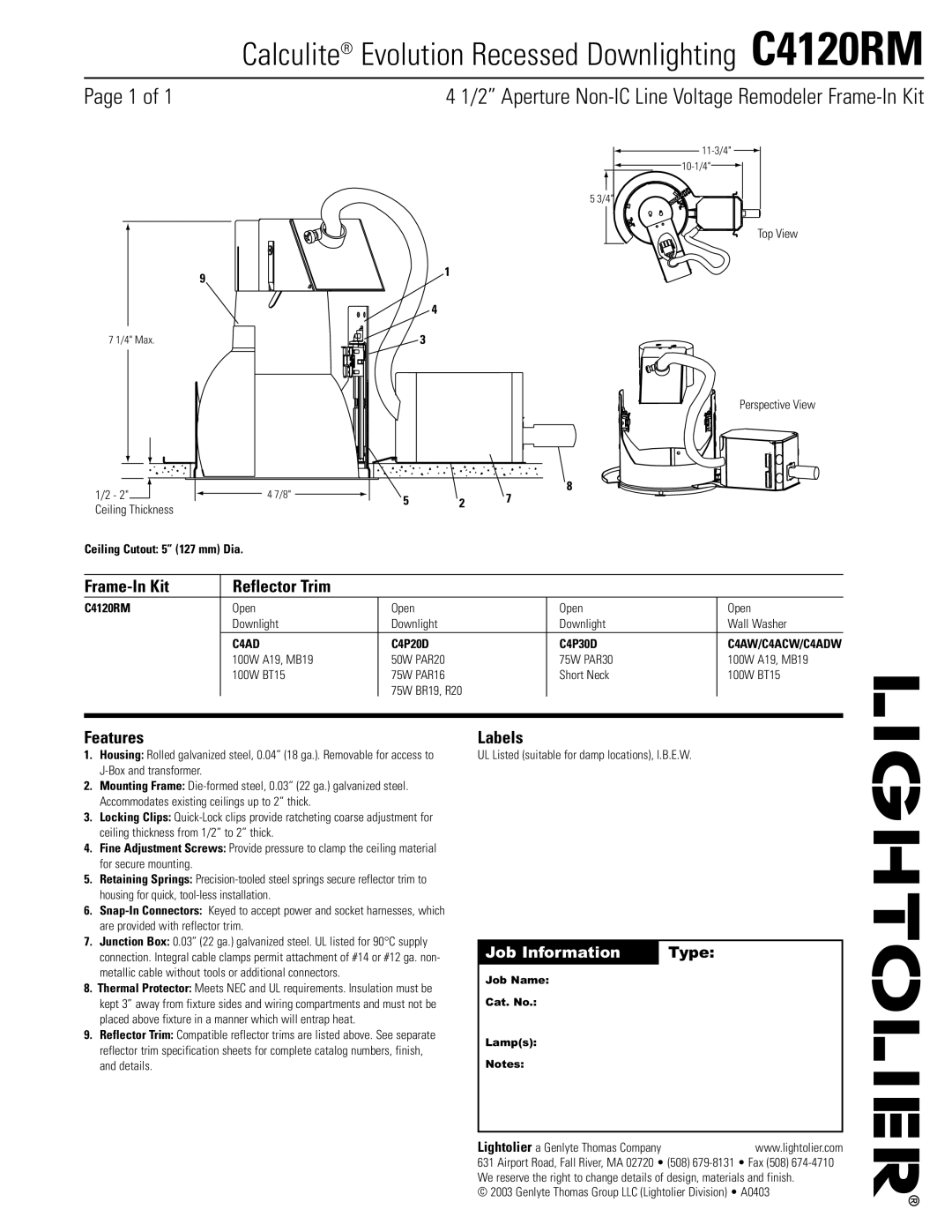

Calculite® Evolution Recessed Downlighting C4120RM

Page 1 of 1

9

7 1/4" Max.

1/2 - 2"	4 7/8"
Ceiling Thickness

Ceiling Cutout: 5” (127 mm) Dia.

4 1/2” Aperture Non-IC Line Voltage Remodeler Frame-In Kit

11-3/4"

10-1/4"

5 3/4"

Top View

1

4

3

Perspective View

8

5 2 7

Frame-In Kit	Reflector Trim
C4120RM	Open	Open		Open	Open
	Downlight	Downlight		Downlight	Wall Washer
	C4AD	C4P20D		C4P30D	C4AW/C4ACW/C4ADW
	100W A19, MB19	50W PAR20		75W PAR30	100W A19, MB19
	100W BT15	75W	PAR16	Short Neck	100W BT15
		75W	BR19, R20

Features

1.Housing: Rolled galvanized steel, 0.04” (18 ga.). Removable for access to J-Box and transformer.

2.Mounting Frame: Die-formed steel, 0.03” (22 ga.) galvanized steel. Accommodates existing ceilings up to 2” thick.

3.Locking Clips: Quick-Lock clips provide ratcheting coarse adjustment for ceiling thickness from 1/2” to 2” thick.

4.Fine Adjustment Screws: Provide pressure to clamp the ceiling material for secure mounting.

5.Retaining Springs: Precision-tooled steel springs secure reflector trim to housing for quick, tool-less installation.

6.Snap-In Connectors: Keyed to accept power and socket harnesses, which are provided with reflector trim.

7.Junction Box: 0.03” (22 ga.) galvanized steel. UL listed for 90°C supply connection. Integral cable clamps permit attachment of #14 or #12 ga. non- metallic cable without tools or additional connectors.

8.Thermal Protector: Meets NEC and UL requirements. Insulation must be kept 3” away from fixture sides and wiring compartments and must not be placed above fixture in a manner which will entrap heat.

9.Reflector Trim: Compatible reflector trims are listed above. See separate reflector trim specification sheets for complete catalog numbers, finish, and details.

Labels

UL Listed (suitable for damp locations), I.B.E.W.

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Thomas Companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2003 Genlyte Thomas Group LLC (Lightolier Division) • A0403
