Calculite® Matrix HID Adjustable Accent  C4X4MRA

Page 1 of 1

4½" X 4½" Square Aperture (1) 20W CMH MR16

8"

9.66"

8.16"

4.5"

5.75"

9.66"

Ceiling Cutout: 5 1/4" x 5 1/4" (130 mm x 130mm) Dia.

Ordering Information

2"

Max. Ceiling

Thickness

Frame-In Kits

Reflector Trims

Finish/Flange

Lamp









C4X420MREU Electronic 120/277V

C4X4MRACLW

Specular Clear/White

(1) 20W MR16 CMH GXIC Base



C4X4MRACLP

Specular Clear/Polished





C4X4MRACCLW

Comfort Clear/White





C4X4MRACCLP

Comfort Clear/Polished





C4X4MRACCDW

Comfort Clear Diffuse/White





C4X4MRACCDP

Comfort Clear Diffuse/Polished





C4X4MRAWHW

White/White



















Features

1.Reflector Trim: 55° physical and reflected cutoff. Available with integral flange in painted white or polished to match inside of cone.

2.Lamp Holder/Trim Adjustment Assembly: Unitized optics ensure alignment of lamp and aperture cone regardless of ceiling thickness. Soft focus lens ships standard. Adjust trim kit vertically to accommodate up to 2" thick ceiling.

3.Socket: Twist and lock base. 5kV (600V) pulse rated PPS, black T240 body socket with nickel-plated contacts. 18 AWG silicone leads with fiberglass outer sleeve.

4.Frame Housing: Steel, 0.029" (22-Ga.), matte black finish.

5.Frame Vertical Adjustment Mechanism: Accommodates mounting to virtually any ceiling system using pre-installed mounting bars, or ½" EMT tubing (by others). Single locking feature secures all adjustments. Alignment holes and markings allow fixture to be pre-set prior to installation. Final adjustment can be made from below from inside the fixture.

6.Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping bars extend to 30" long and lock securely into position. Built-in locking tabs provide positive attachment to common T-bar systems. Self-centering feature simplifies installation in 24" O.C. grid systems. Attaches to steel or wood joists without accessories.

7.Retention Springs: Rust resistant springs secure trim for quick, tool-less installation.

8.Ballast/Cover Assembly: Accessible from below and removable without tools for inspection and ballast replacement.

9.Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG, 90°C through branch circuit conductors. Allows inspection from below.

10.Thermal Protector: Meets NEC and UL requirements. Do not install insulation above nor within 3" (76mm) of any part of the luminaire.

11.Electronic Ballast: 120 or 277V, 50/60 Hz., encased, high power factor >0.99, THD <10%, thermally and transient protected, RMI/RFI complies with FCC Part 18 non-consumer limits, shut-down at end of lamp life, sound rating “A", Minimum starting temperature -30°, Type 1 Outdoor rating.

Features (continued)

Ballast

ANSI Code

Voltage

Max. Amps

Input Watts

20W MH

M156

120/277V

0.20/0.09

22

Labels

UL, cUL (Suitable For Damp Locations)

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • A0507

Page 1
Image 1

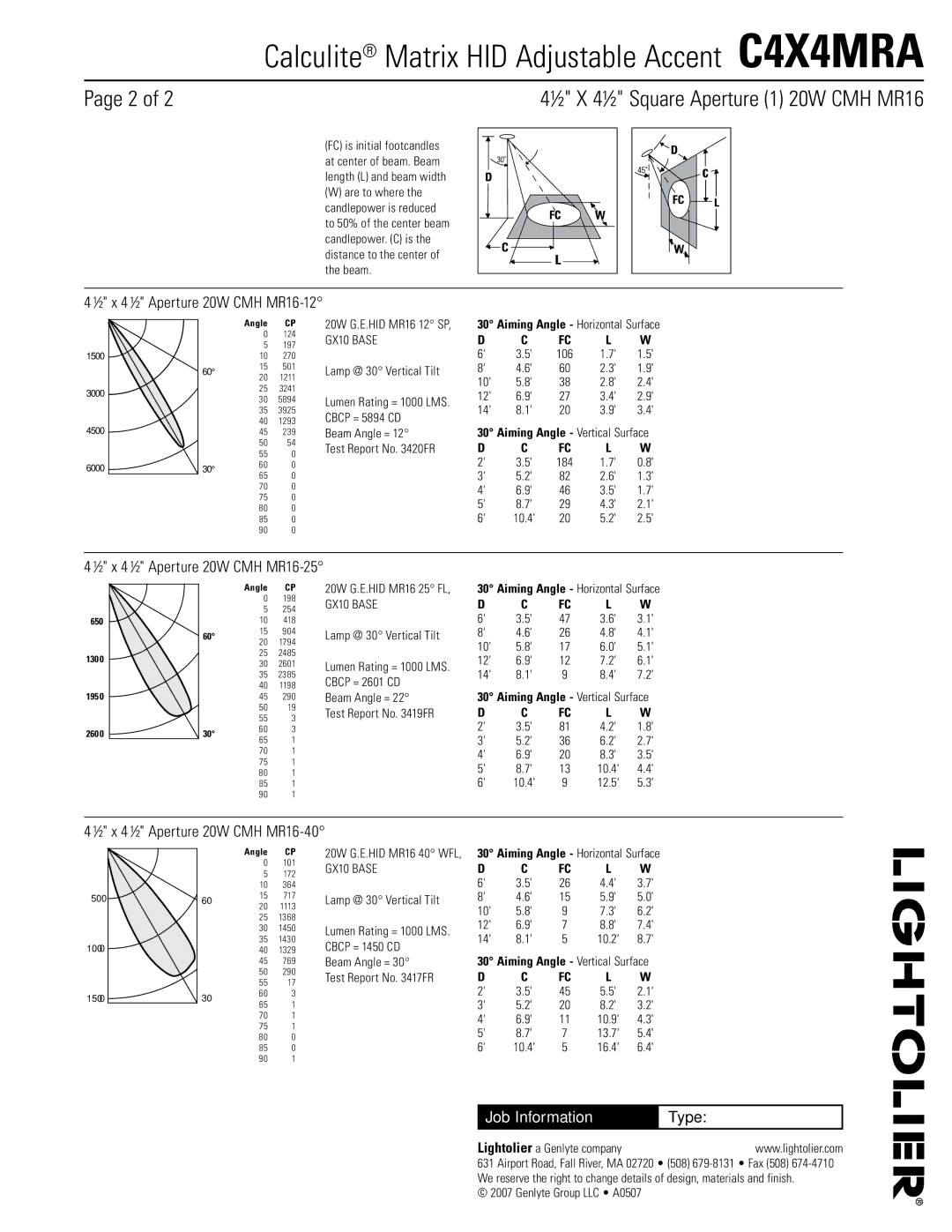

Lightolier C4X4MRA manual Frame-In Kits Reflector Trims Finish/Flange Lamp, Features, Labels
