Calculite® Matrix Low Voltage Lensed Adj. Accent  C4X4MRW

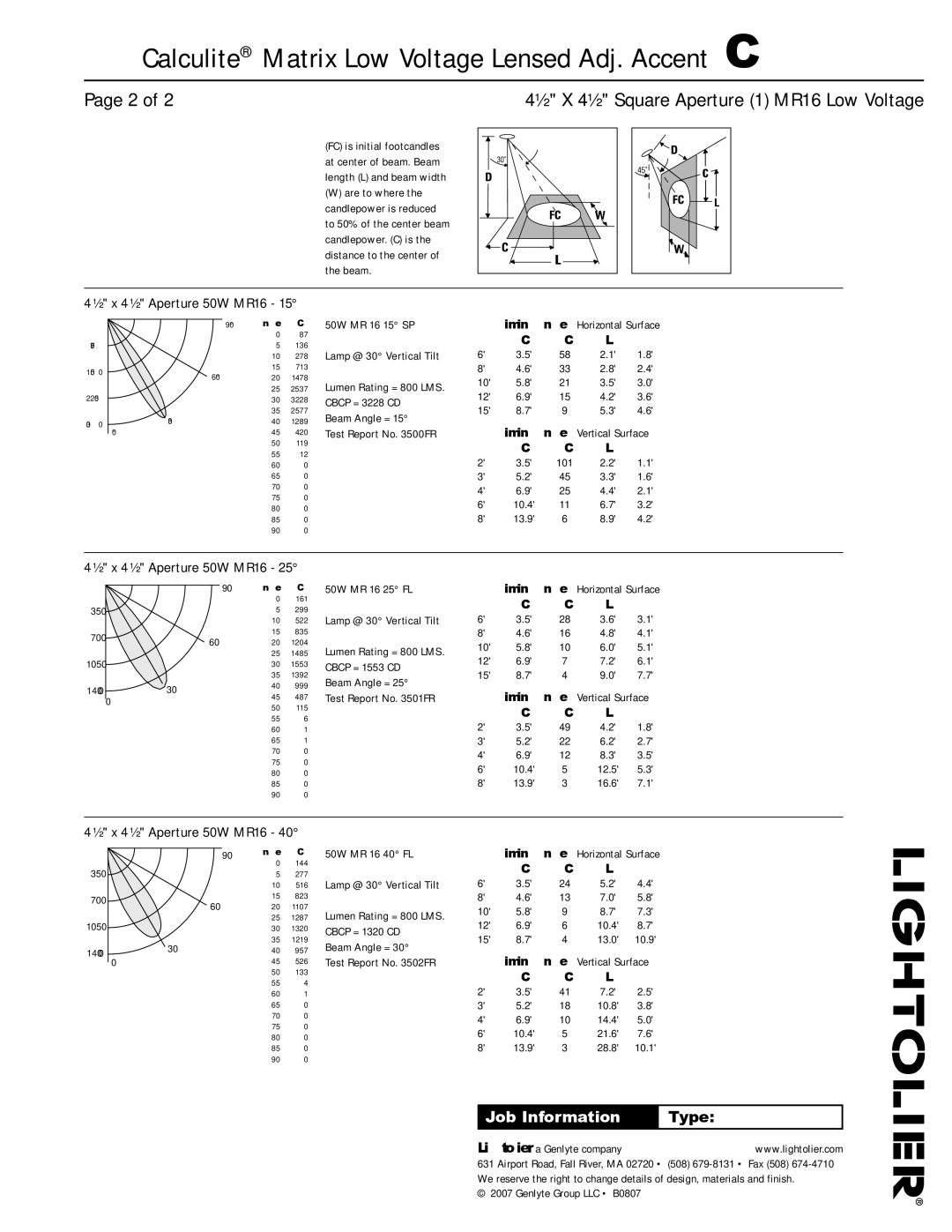

Page  of 2



















4½" X 4½" Square Aperture (1) MR16 Low Voltage

8"

5

6

9

8

7

1

2

4

3

10























































































9.66"

8.16"



2"

12"

Max. Ceiling

Thickness

9.66"

Ceiling Cutout: 5 1/4" x 5 1/4" (130 mm x 130mm) Dia.

Ordering Information

Frame-In Kits

Reflector Trims

Finish/Flange

Lamp











C4X4LVMU

Magnetic 120/277V

C4X4MRWCLW

Specular Clear/White

(1) 12V MR16 Type Lamp

C4X4LVE1

Electronic 120V

C4X4MRWCLP

Specular Clear/Polished

65W Max or IR 37W Max

C4X4LVE2

Electronic 277V

C4X4MRWCCLW

Comfort Clear/White







C4X4MRWCCLP

Comfort Clear/Polished







C4X4MRWCCDW

Comfort Clear Diffuse/White







C4X4MRWCCDP

Comfort Clear Diffuse/Polished







C4X4MRWWHW

White/White

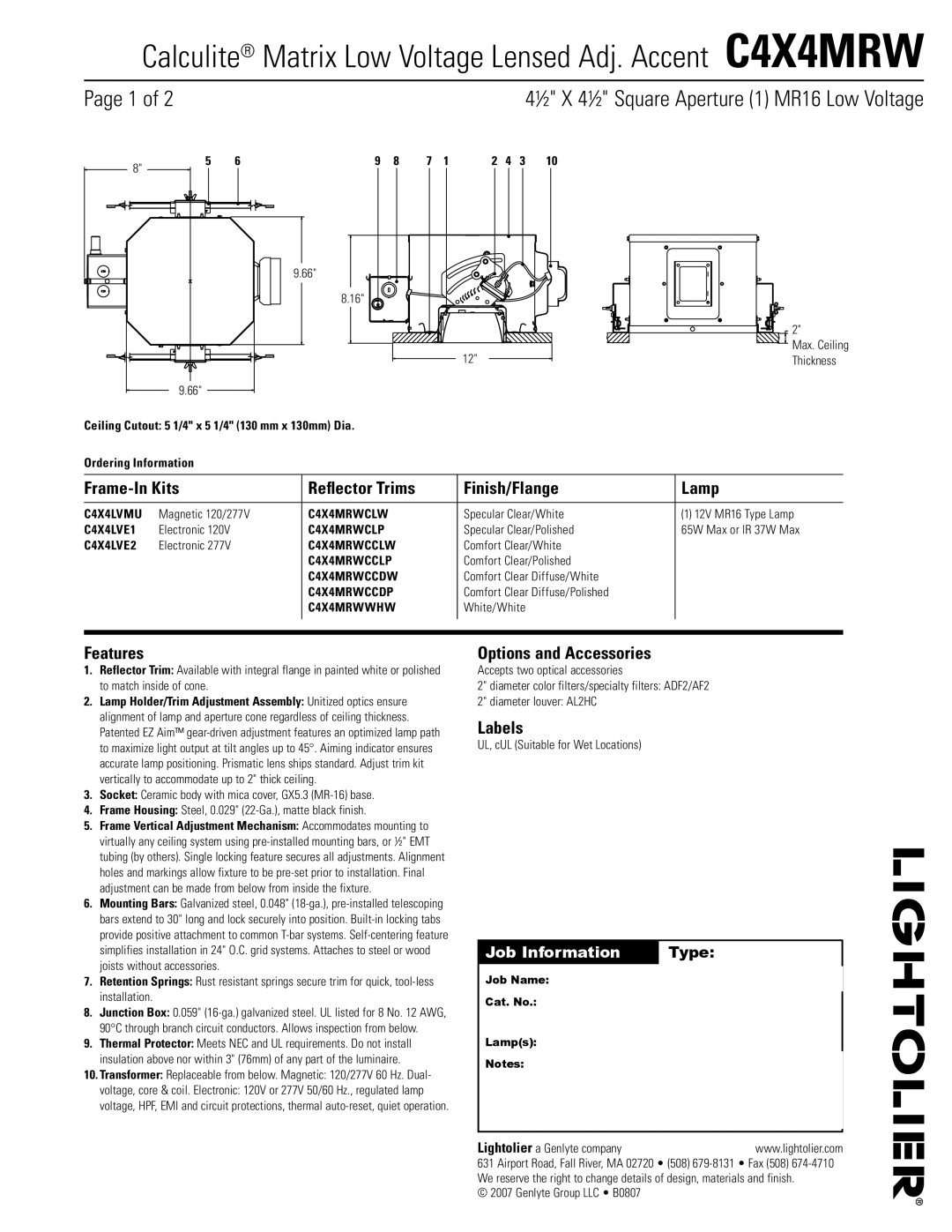

Features

1.Reflector Trim: Available with integral flange in painted white or polished to match inside of cone.

2.Lamp Holder/Trim Adjustment Assembly: Unitized optics ensure alignment of lamp and aperture cone regardless of ceiling thickness. Patented EZ Aim™ gear-driven adjustment features an optimized lamp path to maximize light output at tilt angles up to 45°. Aiming indicator ensures accurate lamp positioning. Prismatic lens ships standard. Adjust trim kit vertically to accommodate up to 2" thick ceiling.

3.Socket: Ceramic body with mica cover, GX5.3 (MR-16) base.

4.Frame Housing: Steel, 0.029" (22-Ga.), matte black finish.

5.Frame Vertical Adjustment Mechanism: Accommodates mounting to virtually any ceiling system using pre-installed mounting bars, or ½" EMT tubing (by others). Single locking feature secures all adjustments. Alignment holes and markings allow fixture to be pre-set prior to installation. Final adjustment can be made from below from inside the fixture.

6.Mounting Bars: Galvanized steel, 0.048" (18-ga.), pre-installed telescoping bars extend to 30" long and lock securely into position. Built-in locking tabs provide positive attachment to common T-bar systems. Self-centering feature simplifies installation in 24" O.C. grid systems. Attaches to steel or wood joists without accessories.

7.Retention Springs: Rust resistant springs secure trim for quick, tool-less installation.

8.Junction Box: 0.059" (16-ga.) galvanized steel. UL listed for 8 No. 12 AWG, 90°C through branch circuit conductors. Allows inspection from below.

9.Thermal Protector: Meets NEC and UL requirements. Do not install insulation above nor within 3" (76mm) of any part of the luminaire.

10.Transformer: Replaceable from below. Magnetic: 120/277V 60 Hz. Dual-

voltage, core & coil. Electronic: 120V or 277V 50/60 Hz., regulated lamp voltage, HPF, EMI and circuit protections, thermal auto-reset, quiet operation.

Options and Accessories

Accepts two optical accessories

2" diameter color filters/specialty filters: ADF2/AF2

2" diameter louver: AL2HC

Labels

UL, cUL (Suitable for Wet Locations)

Job Information

Type:





Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte companywww.lightolier.com 631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710 We reserve the right to change details of design, materials and finish.

© 2007 Genlyte Group LLC • B0807
