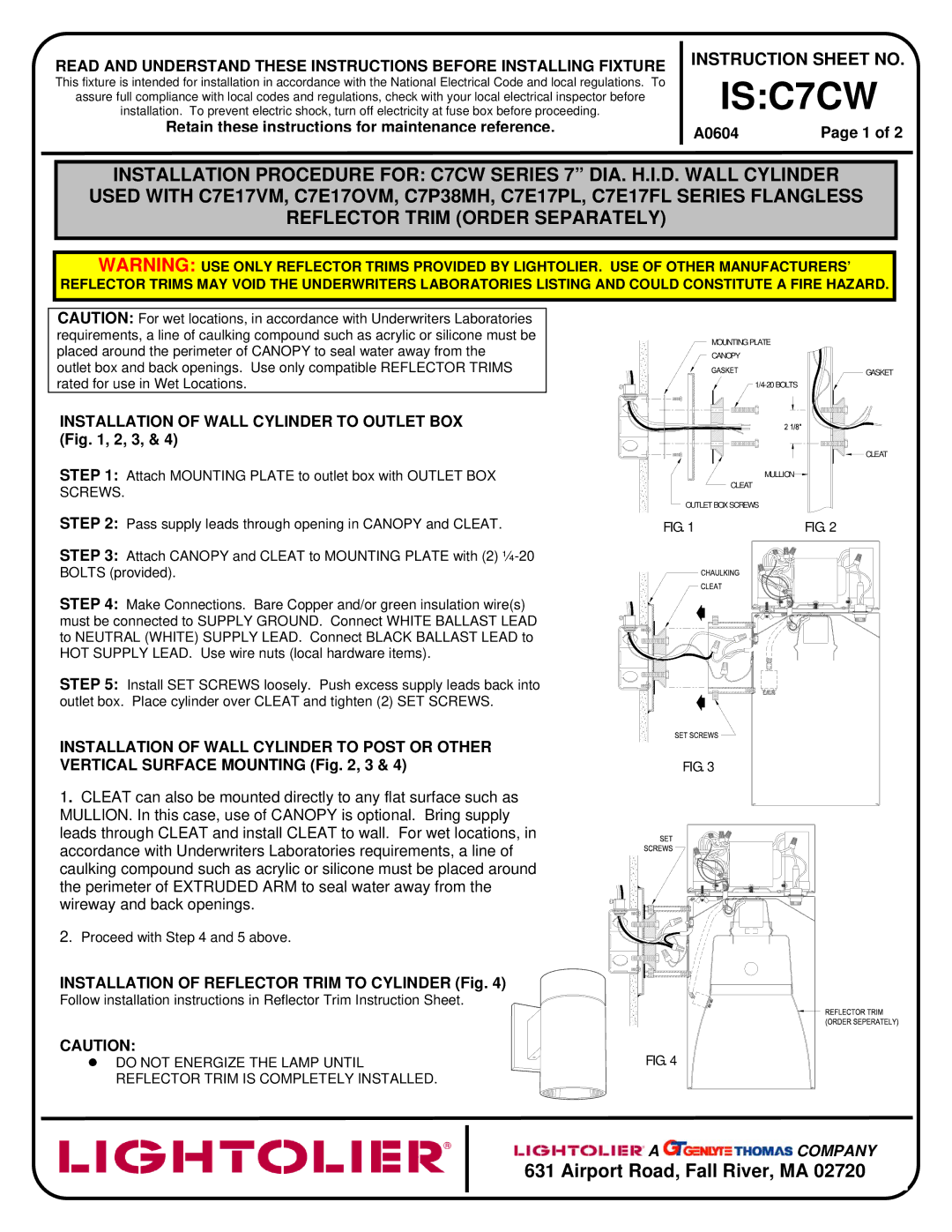

READ AND UNDERSTAND THESE INSTRUCTIONS BEFORE INSTALLING FIXTURE
This fixture is intended for installation in accordance with the National Electrical Code and local regulations. To
assure full compliance with local codes and regulations, check with your local electrical inspector before
installation. To prevent electric shock, turn off electricity at fuse box before proceeding.
Retain these instructions for maintenance reference.
INSTRUCTION SHEET NO.
IS:C7CW
A0604 |
| Page 1 of 2 |
INSTALLATION PROCEDURE FOR: C7CW SERIES 7” DIA. H.I.D. WALL CYLINDER
USED WITH C7E17VM, C7E17OVM, C7P38MH, C7E17PL, C7E17FL SERIES FLANGLESS
REFLECTOR TRIM (ORDER SEPARATELY)
WARNING: USE ONLY REFLECTOR TRIMS PROVIDED BY LIGHTOLIER. USE OF OTHER MANUFACTURERS’
REFLECTOR TRIMS MAY VOID THE UNDERWRITERS LABORATORIES LISTING AND COULD CONSTITUTE A FIRE HAZARD.
CAUTION: For wet locations, in accordance with Underwriters Laboratories requirements, a line of caulking compound such as acrylic or silicone must be placed around the perimeter of CANOPY to seal water away from the outlet box and back openings. Use only compatible REFLECTOR TRIMS rated for use in Wet Locations.
INSTALLATION OF WALL CYLINDER TO OUTLET BOX (Fig. 1, 2, 3, & 4)
STEP 1: Attach MOUNTING PLATE to outlet box with OUTLET BOX SCREWS.
STEP 2: Pass supply leads through opening in CANOPY and CLEAT.
STEP 3: Attach CANOPY and CLEAT to MOUNTING PLATE with (2)
STEP 4: Make Connections. Bare Copper and/or green insulation wire(s) must be connected to SUPPLY GROUND. Connect WHITE BALLAST LEAD to NEUTRAL (WHITE) SUPPLY LEAD. Connect BLACK BALLAST LEAD to HOT SUPPLY LEAD. Use wire nuts (local hardware items).
STEP 5: Install SET SCREWS loosely. Push excess supply leads back into outlet box. Place cylinder over CLEAT and tighten (2) SET SCREWS.
INSTALLATION OF WALL CYLINDER TO POST OR OTHER VERTICAL SURFACE MOUNTING (Fig. 2, 3 & 4)
1. CLEAT can also be mounted directly to any flat surface such as MULLION. In this case, use of CANOPY is optional. Bring supply leads through CLEAT and install CLEAT to wall. For wet locations, in accordance with Underwriters Laboratories requirements, a line of caulking compound such as acrylic or silicone must be placed around the perimeter of EXTRUDED ARM to seal water away from the wireway and back openings.
2.Proceed with Step 4 and 5 above.
INSTALLATION OF REFLECTOR TRIM TO CYLINDER (Fig. 4)
Follow installation instructions in Reflector Trim Instruction Sheet.
CAUTION:
DO NOT ENERGIZE THE LAMP UNTIL
REFLECTOR TRIM IS COMPLETELY INSTALLED.
MOUNTING PLATE
CANOPY
GASKET
CLEAT
MULLION
CLEAT
OUTLET BOX SCREWS |
|
FIG. 1 | FIG. 2 |
FIG. 3
FIG. 4
